Build Your Own Mil-Spec Connector Kits
Our Mil-Spec kits come complete with everything you need to assemble a plug and receptacle kit*.
How to use our builder tool:
- Choose your insert arrangement.
- Choose your receptacle type, the most popular is Flange/Socket.
- Choose connector finish, the most popular is Nickle.
- Select Yes/No for shrink boots most popular is Yes.
- Select shrink boot adapter, required if shrink boots are going to be used.
- Once you have selected all options, please scroll down to see the contents of your kit and select add to cart.
Please Note:
- By default we add (1) straight shrink boot and (1) 90º shrink boot, please adjust the qty's to suit your needs, then re-calculate the price and add to the cart.
- Tooling not included in kit price
| Contact Size | Wire Range AWG | Amperage Per Contact | Crimp Tool Options | ||
Deutsch | Econo | DMC | |||
| 20 | 22-18** | 7.5 | HDT-48-00 | 18890 | M225201-01 |
| 16 | 20-14* | 13 | HDT-48-00 | 18880 | M225201-01 |
| 12 | 14-12 | 25 | HDT-48-00 | 18860 | M225201-01 |
| * 14 ga can be used if the wire is perfectly stripped | |||||
| **16 ga can be used with a special contact see kit pages for more info | |||||
| No. Of Positions | (qty) Wire Range AWG | Max Amps Per Contact | Kit Part Number | Insert Arrangement |

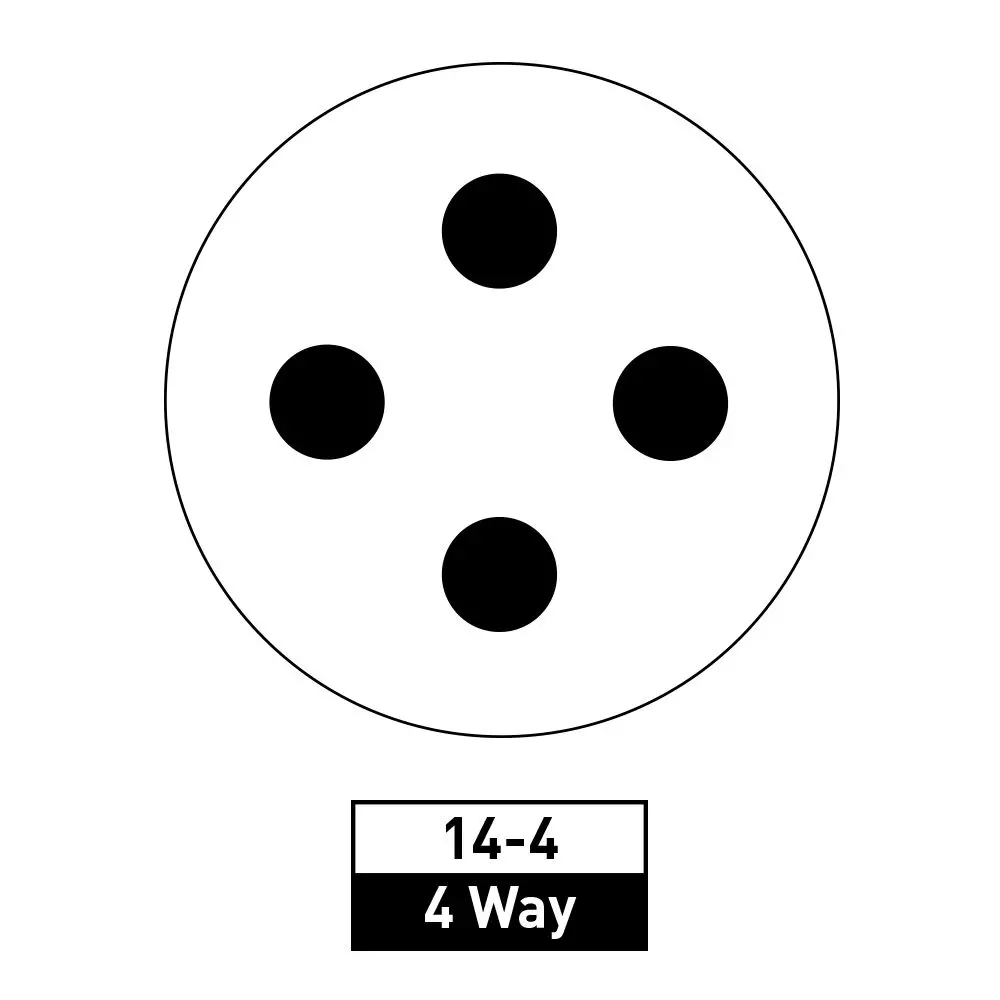

| 4 | (4) 14-12 | 25 | 14-4-KIT | 14-4 |
| 8 | (8) 14-12 | 25 | 18-8-KIT | 18-8 |

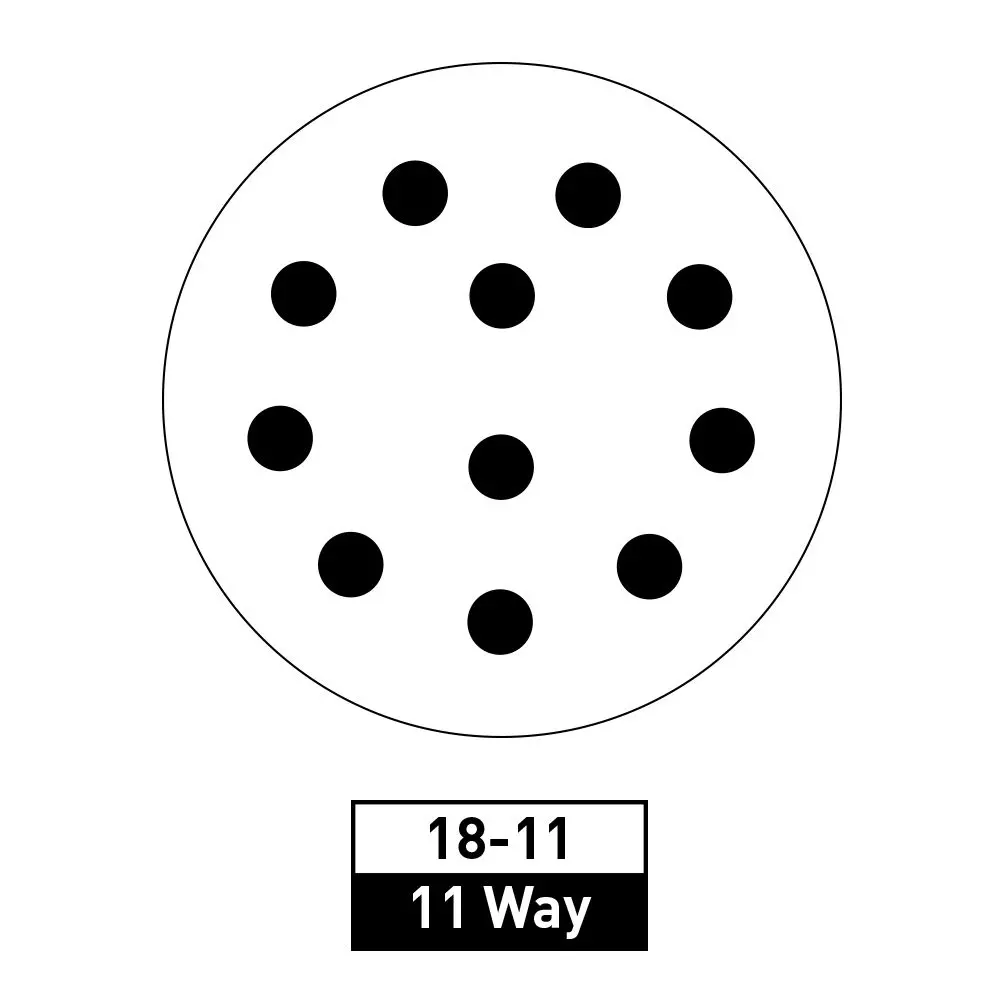

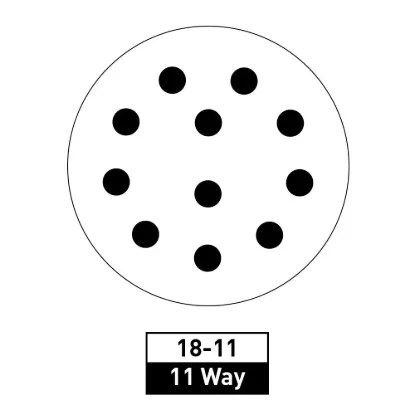

| 11 | (11) 20-14 | 13 | 18-11 | 18-11 |

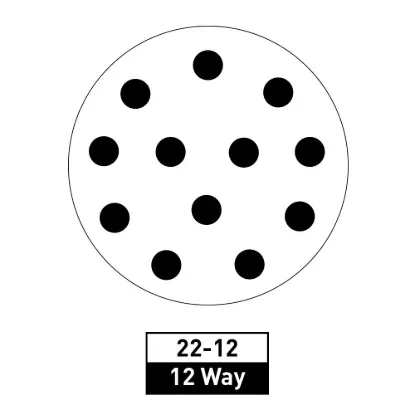

| 12 | (12) 14-12 | 25 | 22-12-KIT | 22-12 |

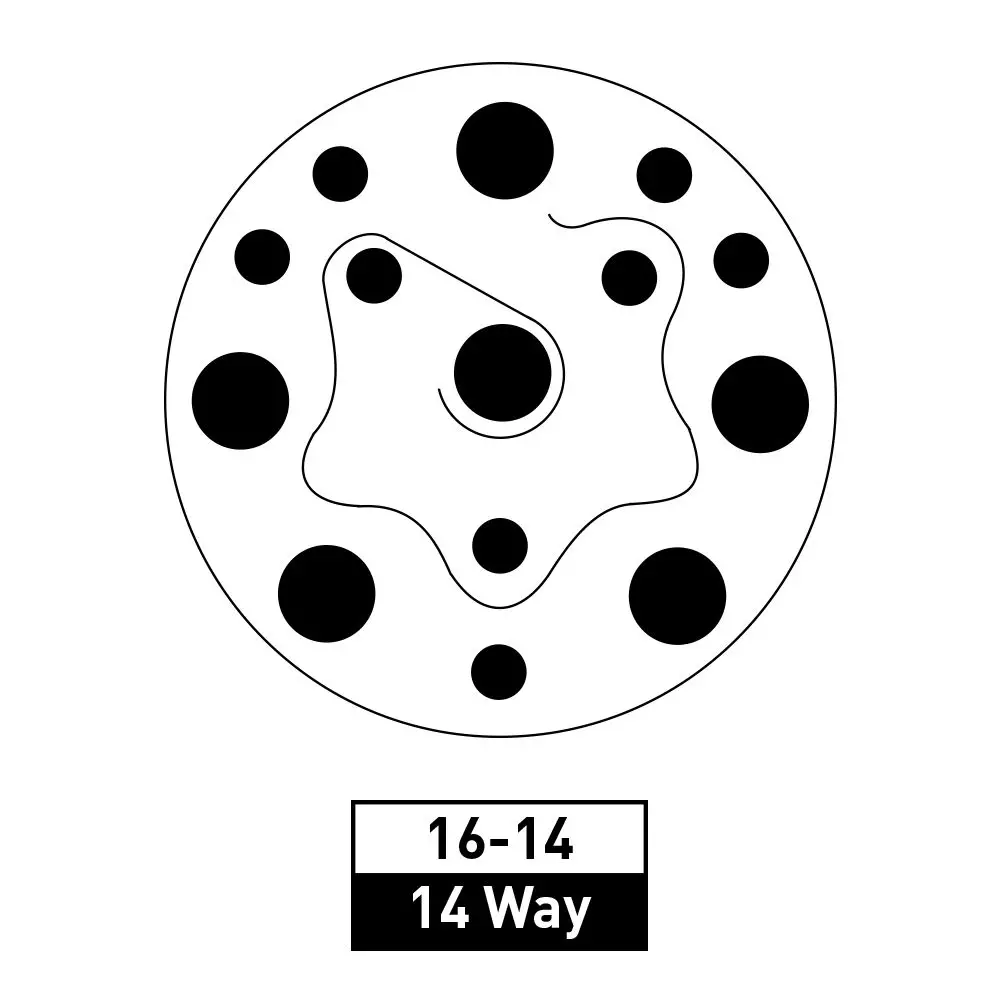

| 14 | (8) 22-18 | 7.5 | 16-14-KIT | 16-14 |
| (6) 14-12 | 25 | |||

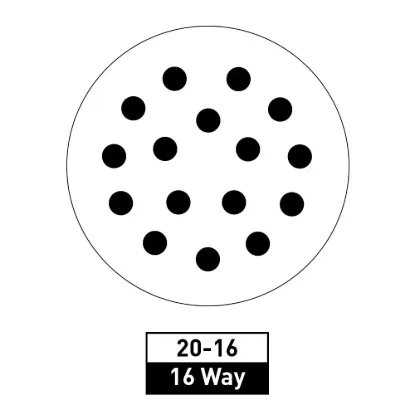

| 16 | (16) 20-14 | 13 | 20-16-KIT | 20-16 |
| 19 | (19) 22-18 | 7.5 | 14-19-KIT | 14-19 |

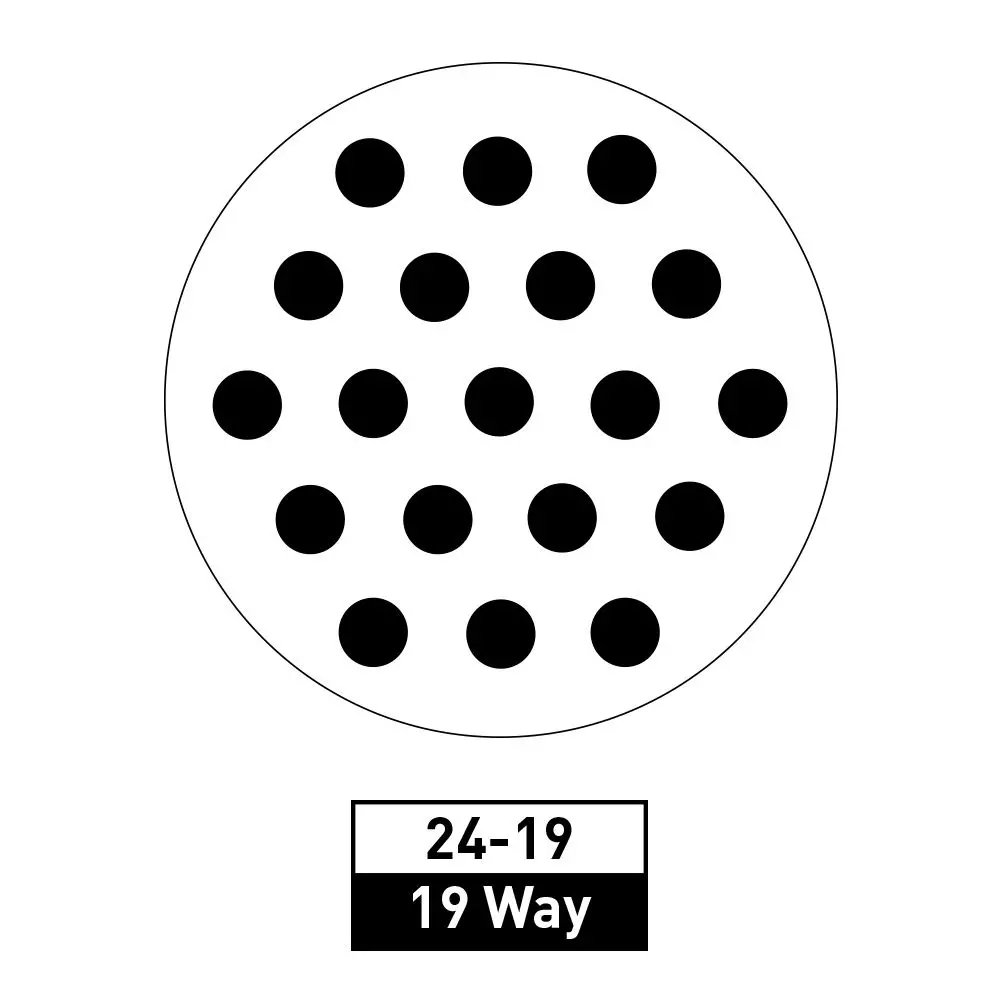

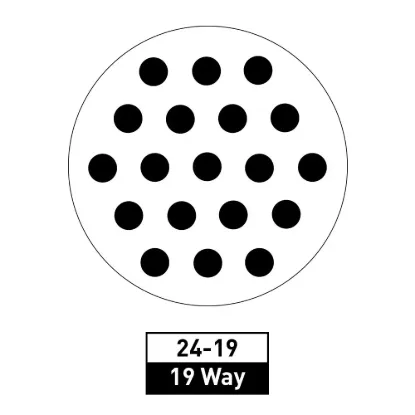

| 19 | (19) 14-12 | 25 | 24-19-KIT | 24-19 |

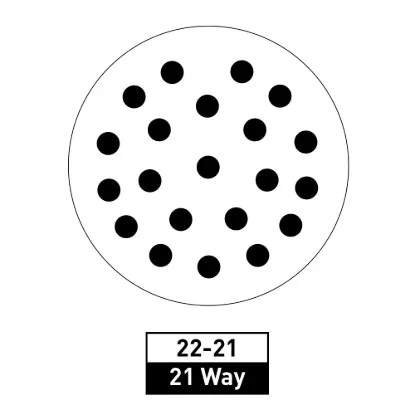

| 21 | (21) 20-14 | 13 | 22-21-KIT | 22-21 |
| 26 | (26) 22-18 | 7.5 | 16-26-KIT | 16-26 |

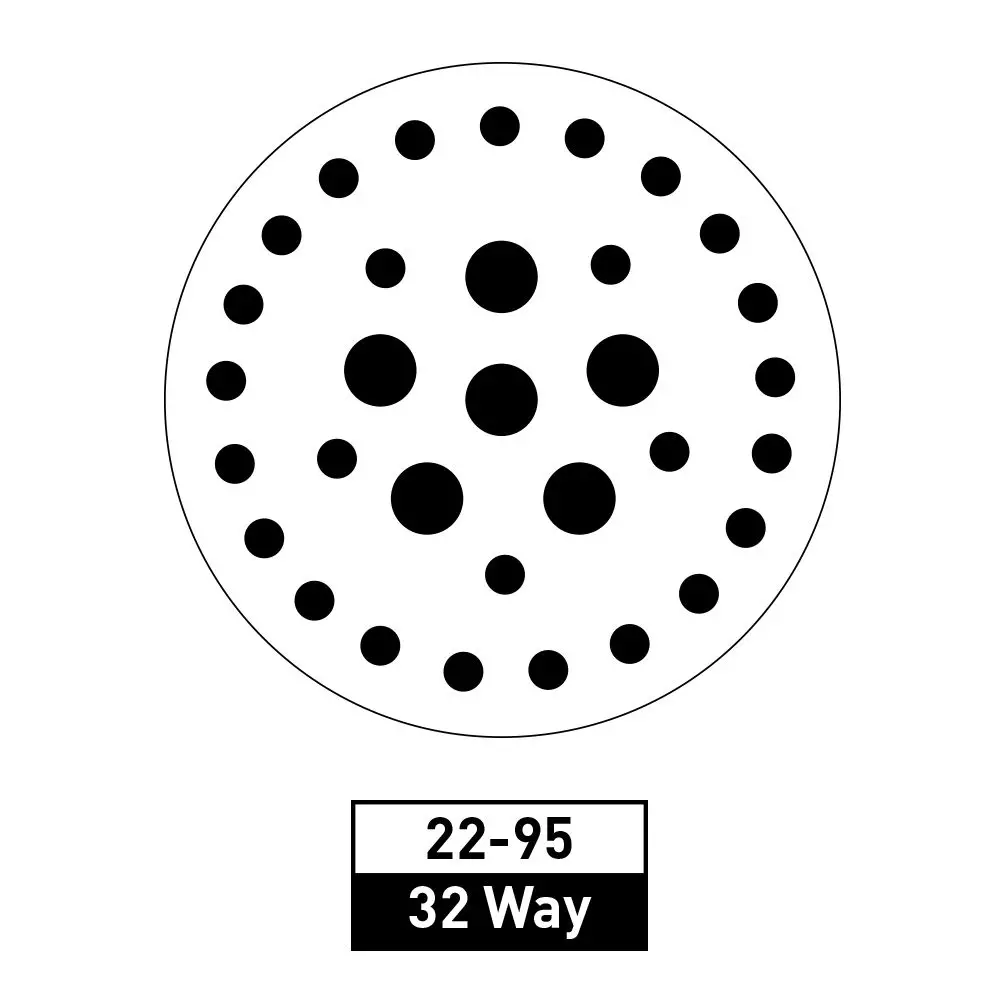

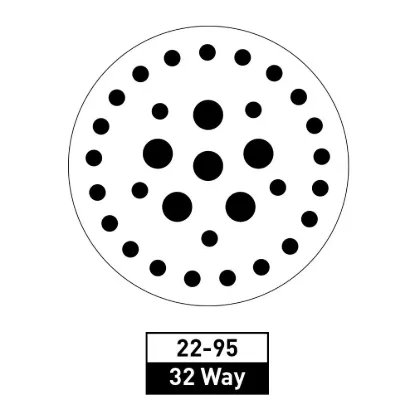

| 32 | (26) 22-18 | 7.5 | 22-95-KIT | 22-95 |
| (6) 14-12 | 25 | |||

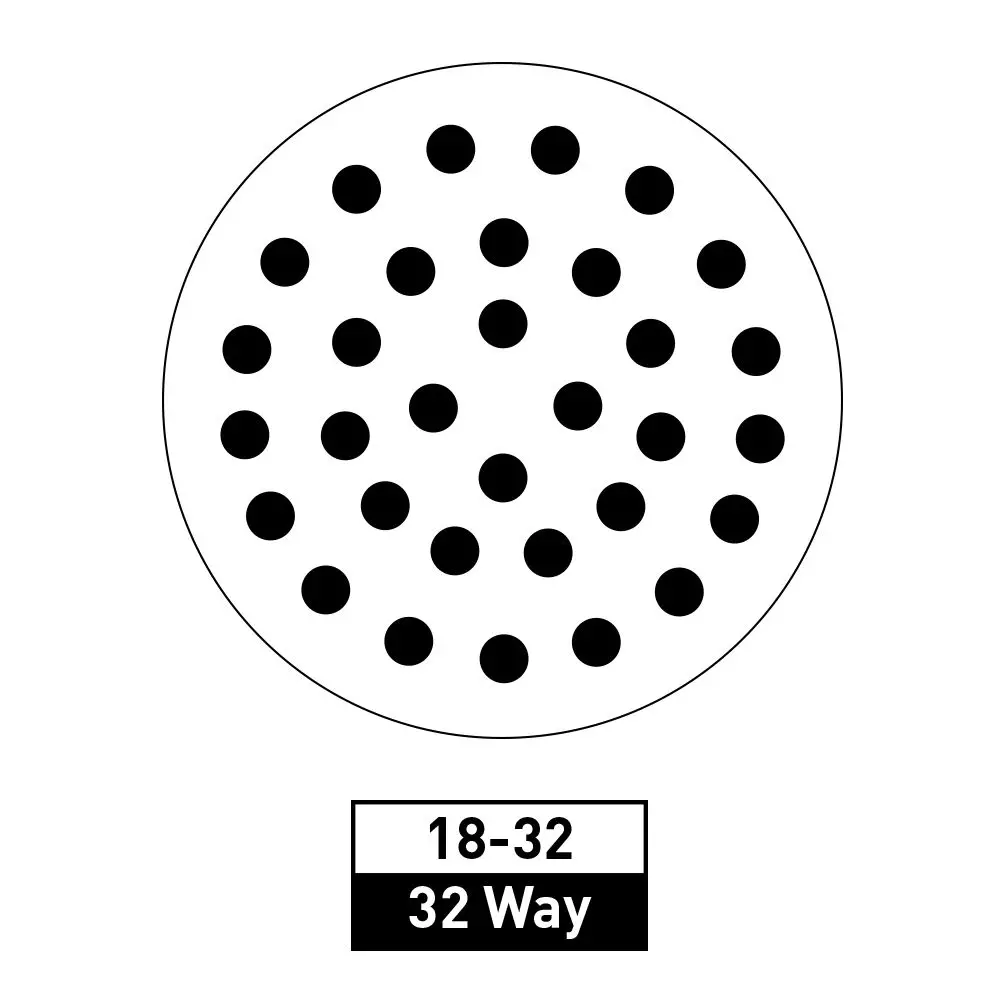

| 32 | (32) 22-18 | 7.5 | 18-32-KIT | 18-32 |
| 39 | (37) 22-18 | 7.5 | 20-39-KIT | 20-39 |
| (2) 20-14 | 13 | |||

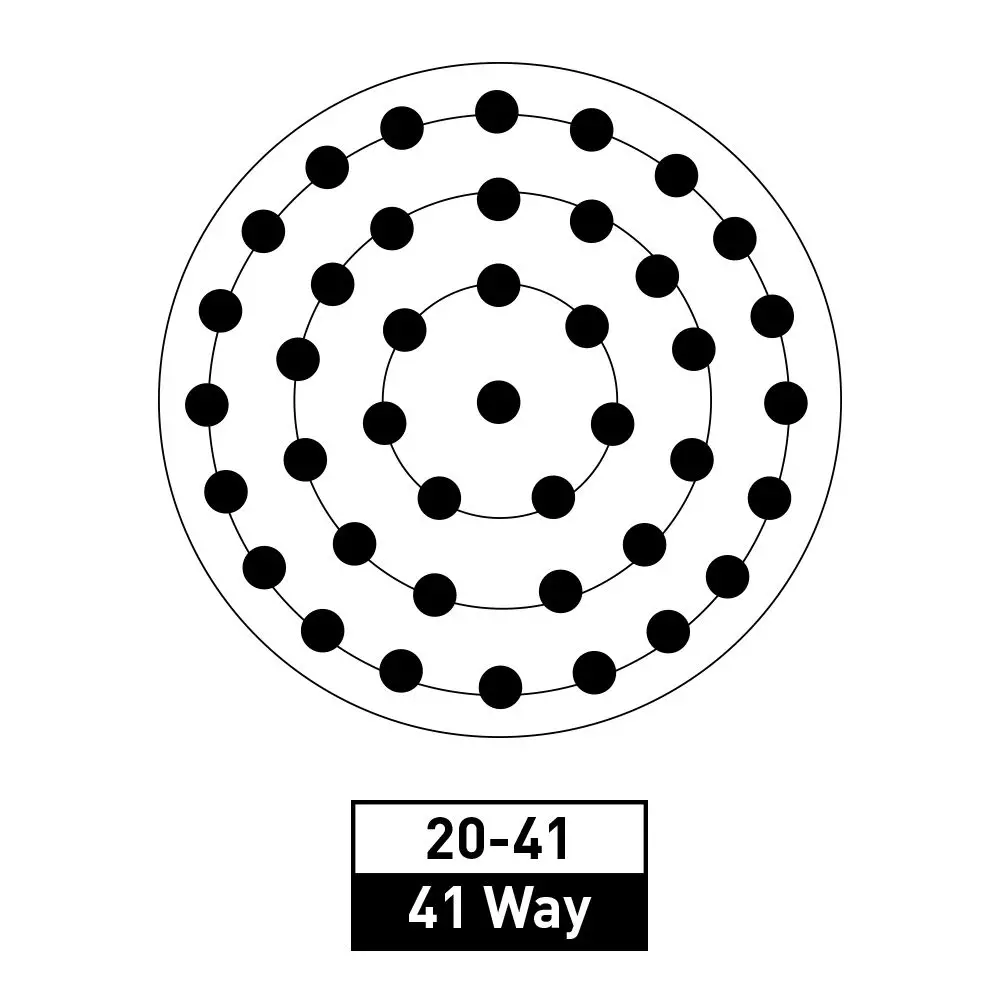

| 41 | (41) 22-18 | 7.5 | 20-41-KIT | 20-41 |

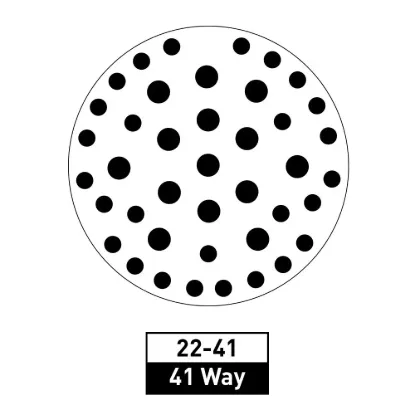

| 41 | (27) 22-18 | 7.5 | 22-41-KIT | 22-41 |
| (14) 20-14 | 13 | |||
| 55 | (55) 22-18 | 7.5 | 22-55-KIT | 22-55 |
| 61 | (61) 22-18 | 7.5 | 24-61-KIT | 24-61 |
Filters
Filters

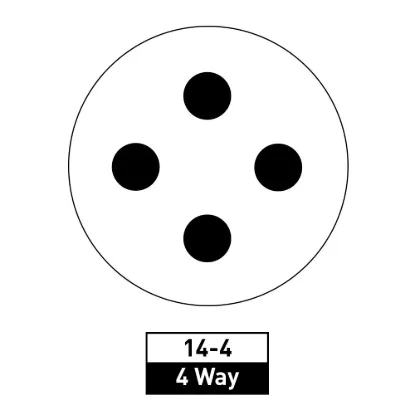

Item No. 14-4-KIT

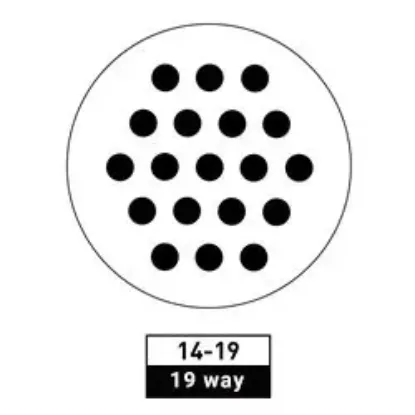

Item No. 14-19-KIT
Item No. 16-14-KIT
Item No. 16-26-KIT
Item No. 18-8-KIT
Item No. 18-11-KIT
Item No. 18-32-KIT
Item No. 20-16-KIT

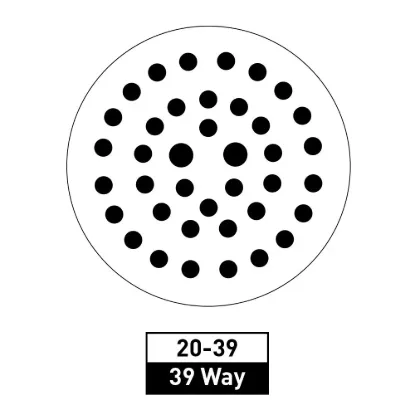

Item No. 20-39-KIT

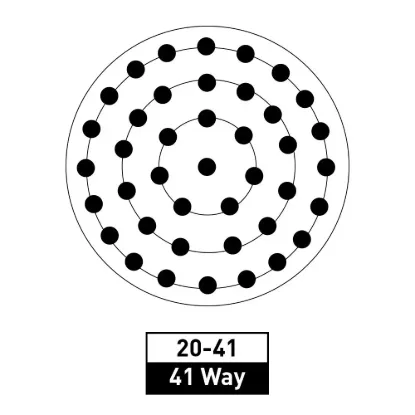

Item No. 20-41-KIT
Item No. 22-12-KIT
Item No. 22-21-KIT
Item No. 22-41-KIT

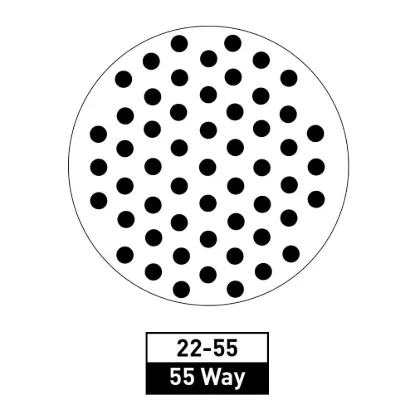

Item No. 22-55-KIT
Item No. 22-95-KIT
Item No. 24-19-KIT

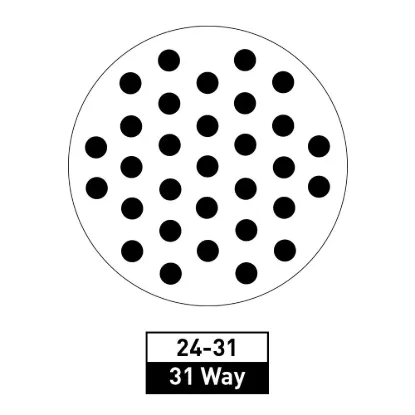

Item No. 24-31-KIT

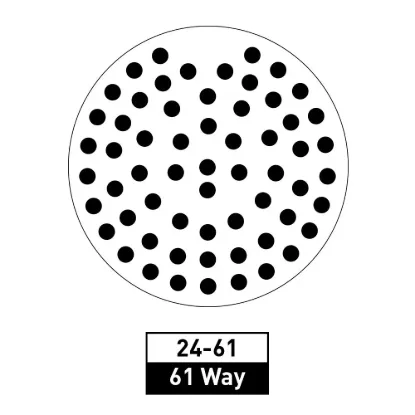

Item No. 24-61-KIT
