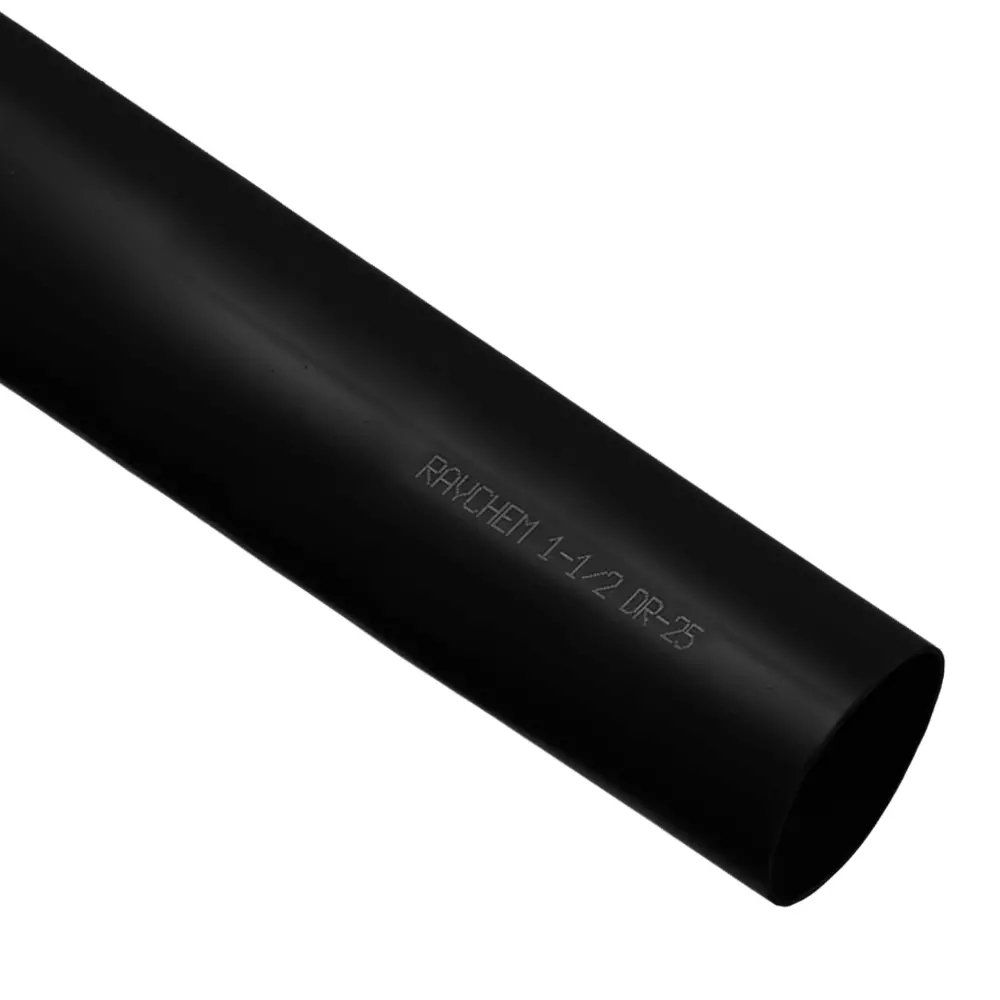

Raychem/TE DR-25 Heat Shrinkable Tubing UK
Heat-Shrinkable, Flexible, Chemical and Abrasion / Diesel Resistant Shrink
Specially formulated for optimum high-temperature fluid resistance and long-term heat resistance. Resistant to aviation and diesel fuels, hydraulic fluids, and lubricating oils. Particularly suitable as a jacketing material for military ground vehicle cables and harnesses. It is also ideally suited for the demands of motorsport cable harnesses. These products provide a complete cable harness system when used in conjunction with System 25 heat-shrinkable molded shapes and RT125 high-performance adhesive.

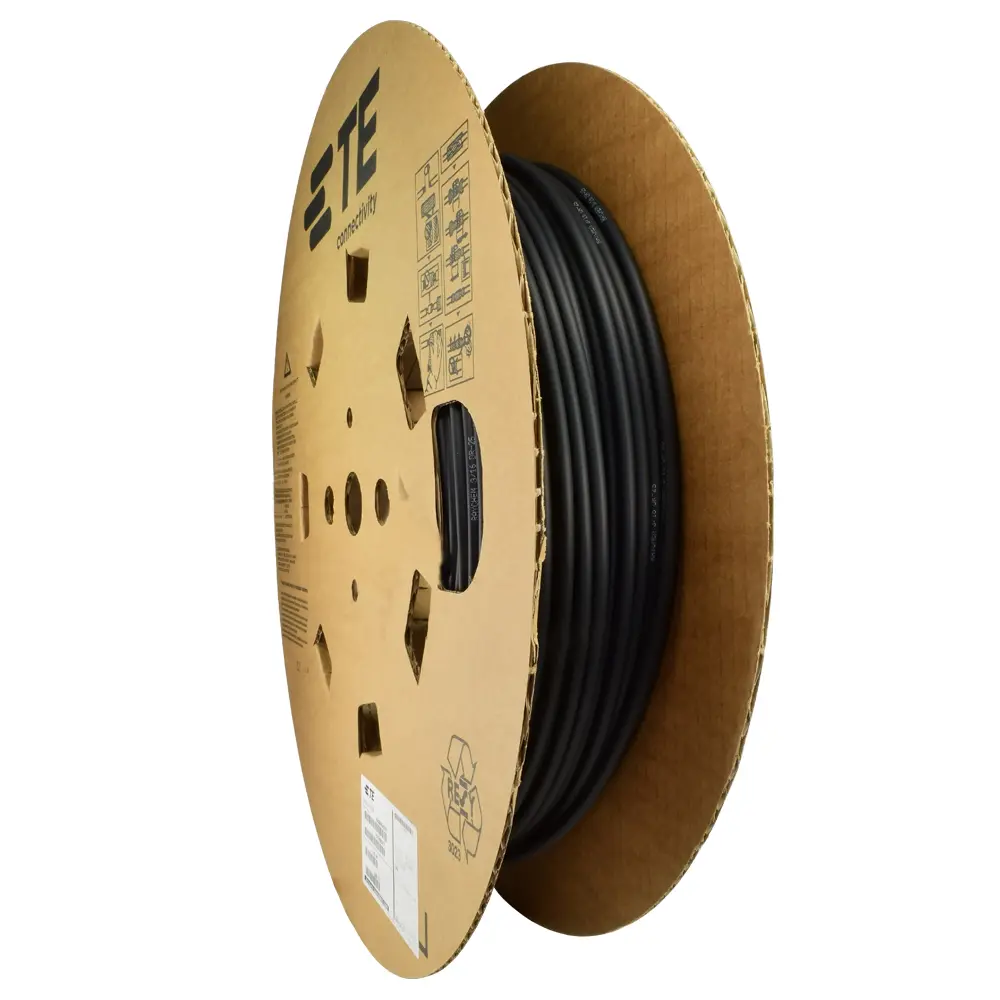

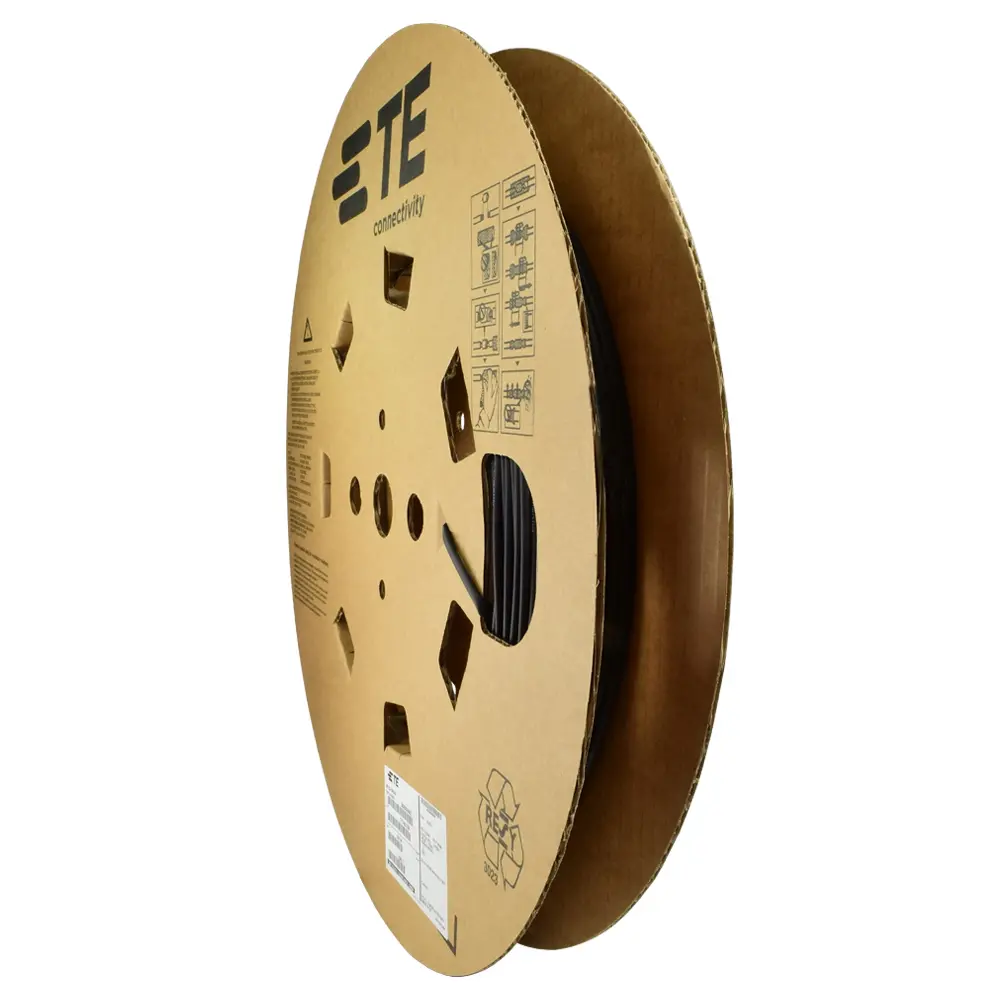

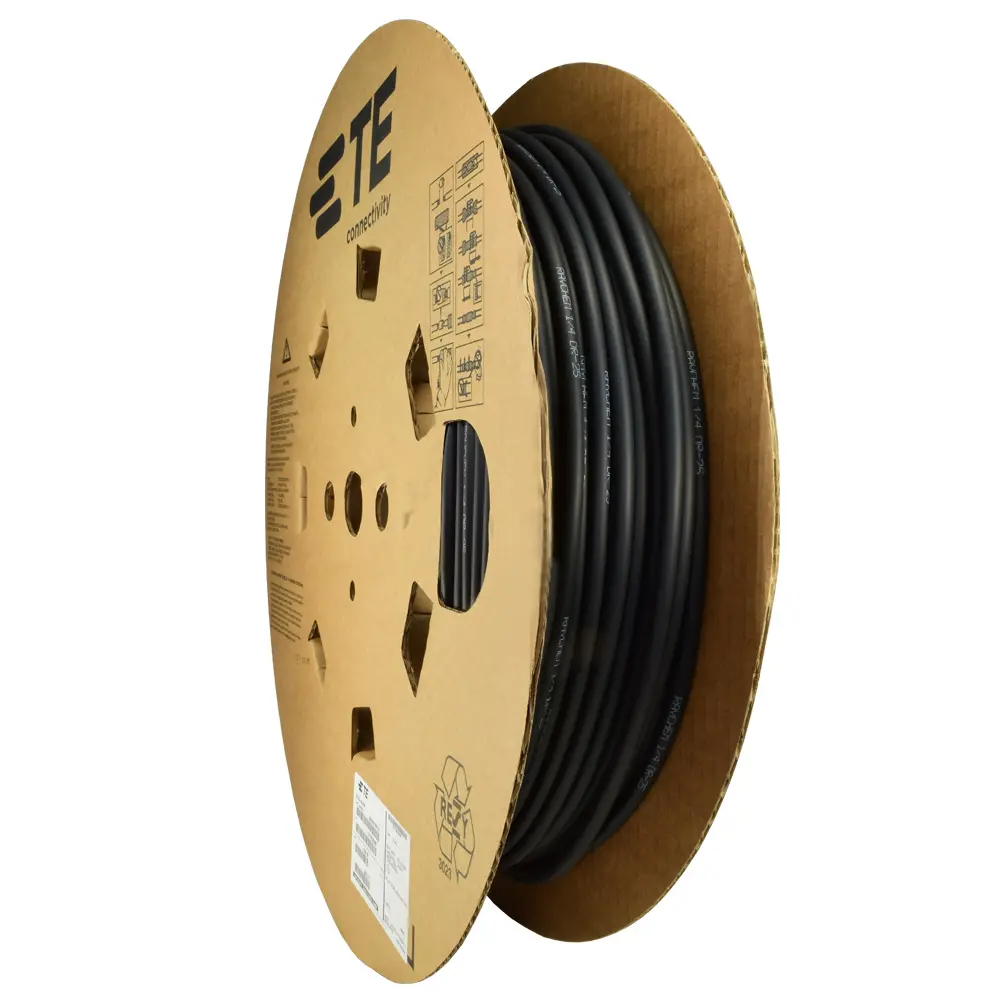

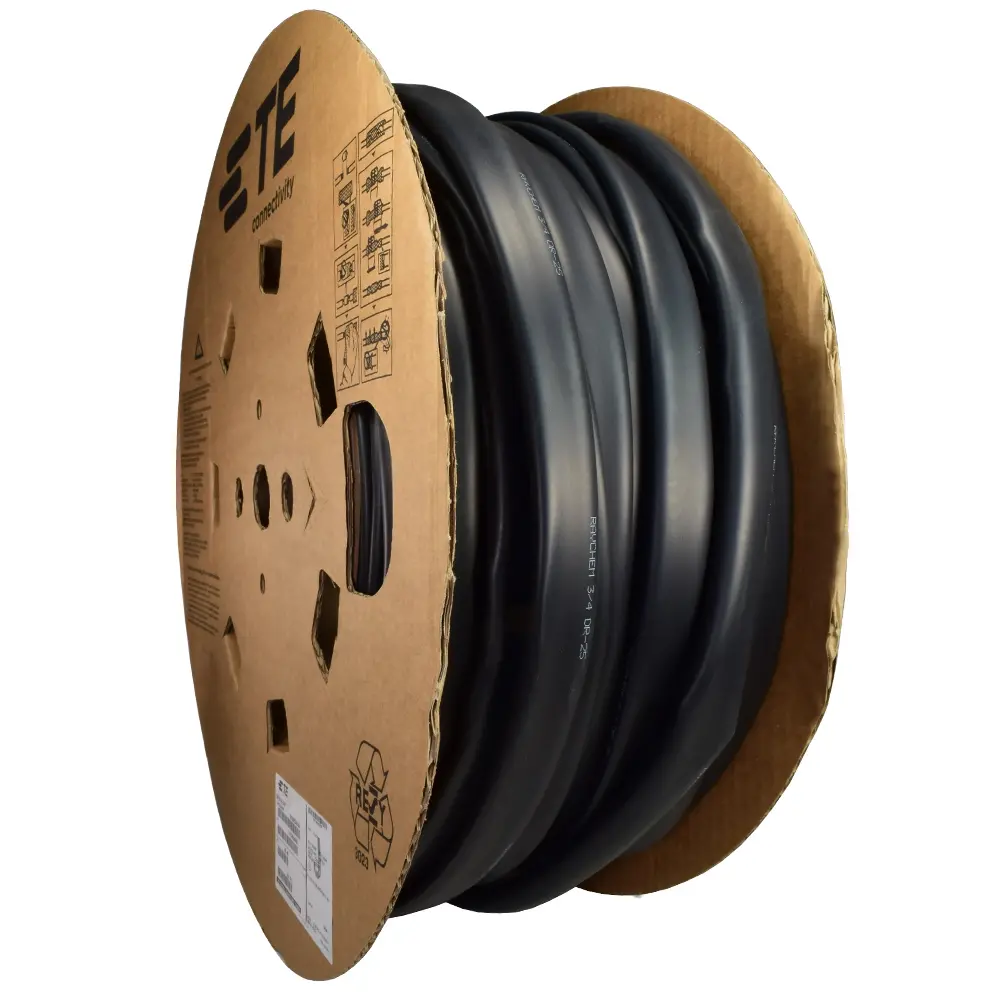

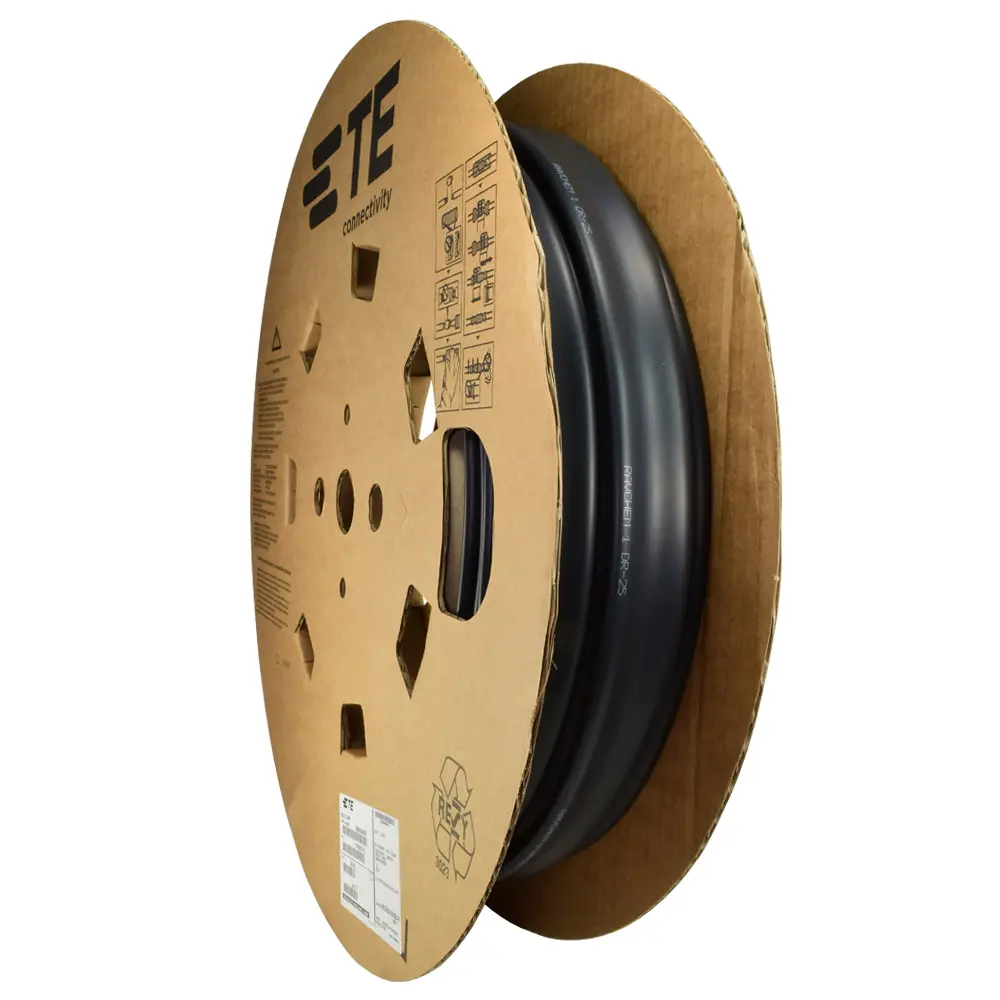

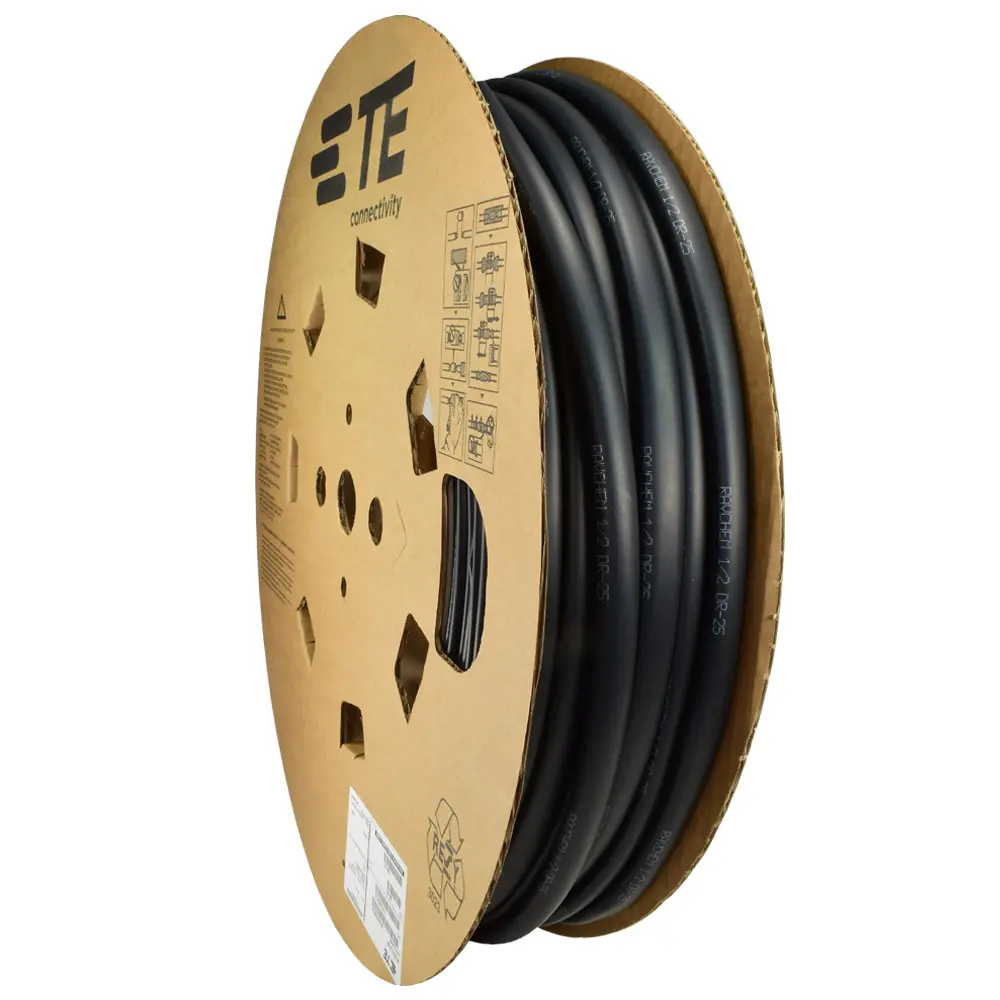

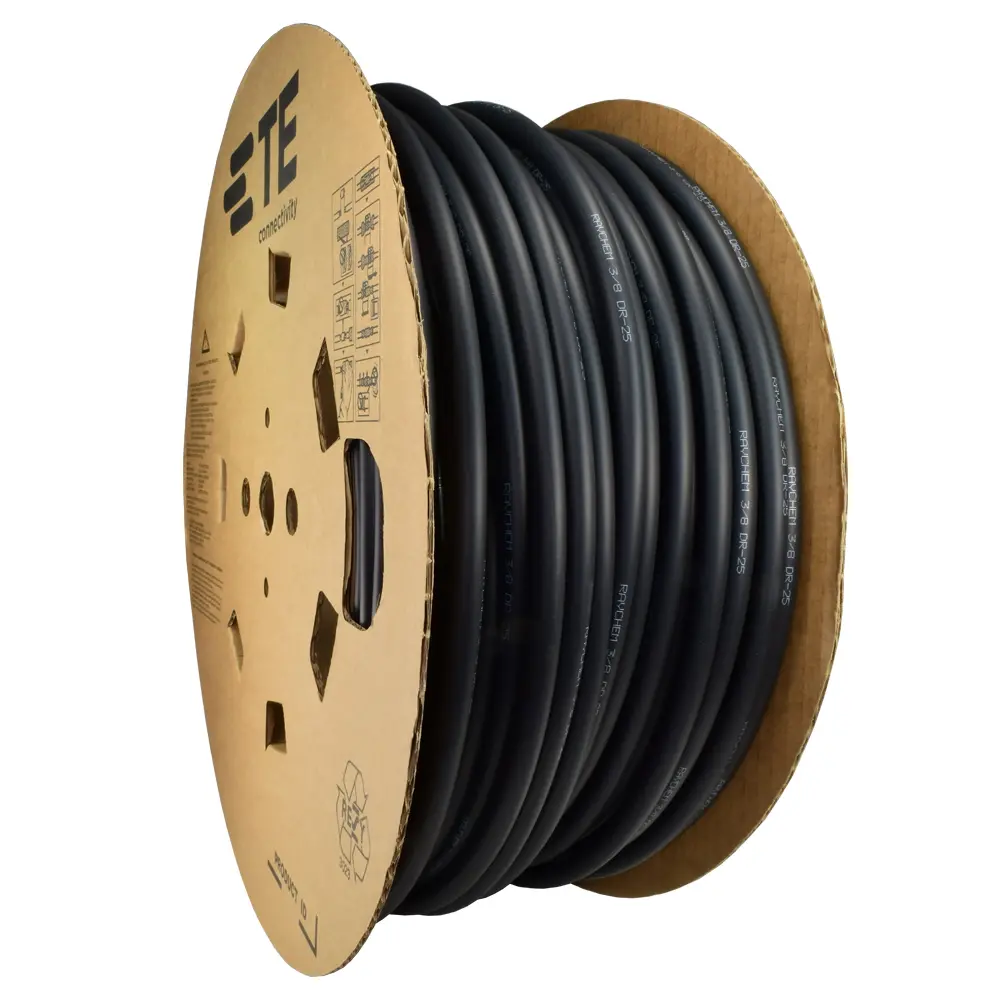

Sold per foot and also on factory reels. See the chart below for factory put-up lengths.
 Raychem/TE DR-25 Datasheet (PDF, 102 KB) |
- Shrink Ratio 2:1
- Flame-Retardant
- Operating Temp Range: -75-150ºC
- Recovery Temp: 175ºC
- U.K. Version Print Color: White
- Glue Lined: No
- Use with Raychem heat shrink boots
- DR-25 tubing is stocked up to 1 1/2" other sizes available by special order
- For fuel-rated heat shrink, Click Here For Viton Tubing.
Are you looking for the classic yellow-printed DR-25?
| Size | Recovered I.D. After Heating | Recovered Wall Thickness | Factory Reel Size/FT |
| 1/8" | .062" [1.6mm] |
| 328 |
| 3/16" | .093" [2.4mm] | 0.033" ± 0.006" | 328 |
| 1/4" | .125" [3.2mm] | 0.035" ± 0.006" [0.89mm ± 0.15mm] | 328 |
| 3/8" | .187" [4.8mm] | 0.040" ± 0.008" | 328 |
| 1/2" | .250" [6.4mm] | 0.048' ± 0.008' [1.22mm ± 0.20mm] | 196 |
| 3/4" | .375" [9.5mm] | 0.057" ± 0.011" | 196 |
| 1" | .500" [12.7mm] | 0.070" ± 0.011" [1.78mm ± 0.28mm] | 98 |
| 1 1/2" | .750" [19.1mm] | 0.095" ± 0.016 | 49 |
**Wall thickness will be less if tubing recovery is restricted during shrinkage. | |||
