382A012 to 046
Y Transition
As Supplied (a)
After Unrestricted Recovery (b)
Application
Provides strain relief and mechanical protection on cable harness assemblies.
Materials Available
| Material* | Material Description | Precoating No. | Adhesive Part No.** |
|---|---|---|---|
| -3 | Semirigid polyolefin | /42 or /86 | S-1017 or S-1048 |
| -4 | Flexible polyolefin | /42 or /86 | S-1017 or S-1048 |
| -12 | Viton® | N/A | S-1255-04 |
| -25 | Fluid-resistant elastomer | /42 or /86 or /225 | S-1017 or S-1048 or S-1125 |
| -100 | Polyolefin, Zerohal | /86 or /180 | S-1048 or S-1030 |
| *For more information, please see the appropriate material page in this section. | |||
| **For more information, please see section 5. | |||
Product Dimensions
| a | b | a | b | b | b | b | b | |
|---|---|---|---|---|---|---|---|---|
| Min. | Max | Min. | Max | ±10% | ±10% | ±20% | ±20% | |
| Part no. | H | J &K | S | T | HW | JW & KW | ||

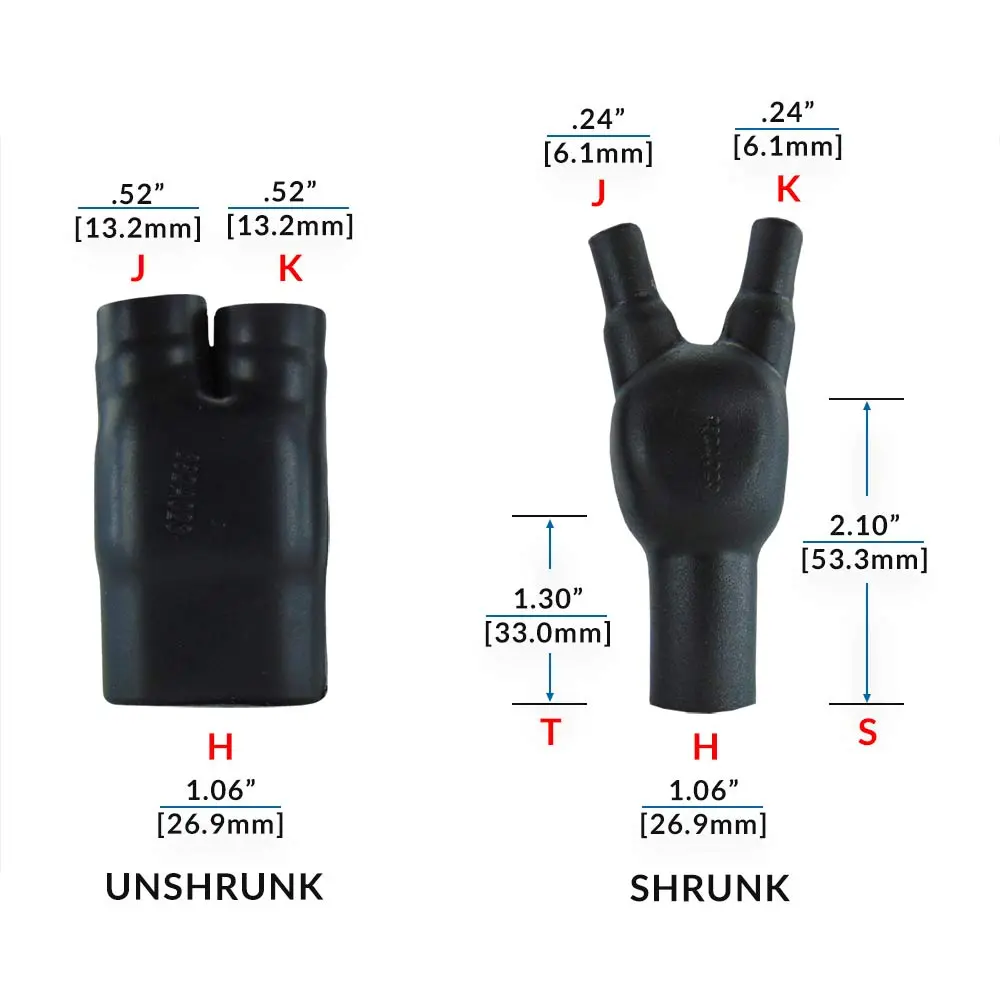

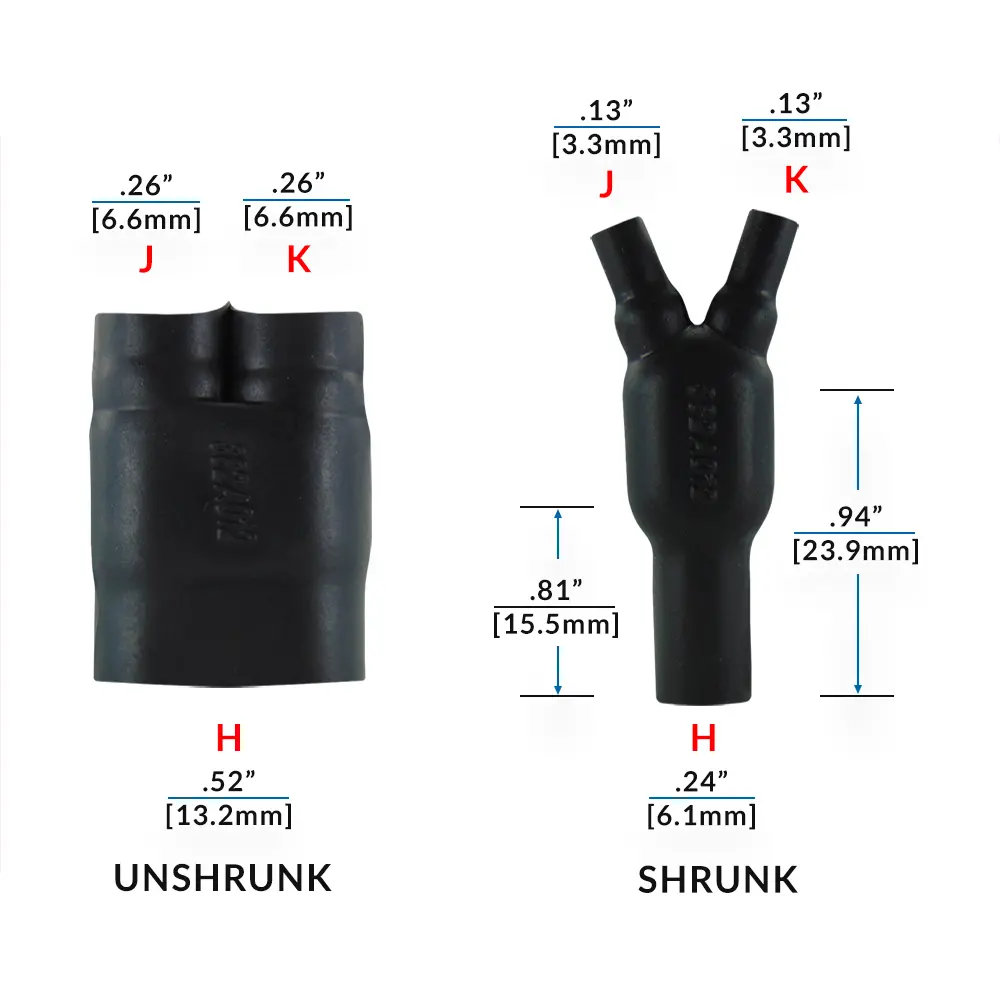

| 382A012 | 13.2 [.52] | 6.1 [.24] | 6.6 [.26] | 3.3 [.13] | 23.9 [.94] | 15.5 [.61] | 1.52 [.06] | 1.02 [.04] |
| 382A023 | 26.9 [1.06] | 12.4 [.49] | 13.2 [.52] | 6.1 [.24] | 53.3 [2.10] | 33.0 [1.30] | 2.54 [.10] | 1.52 [.06] |

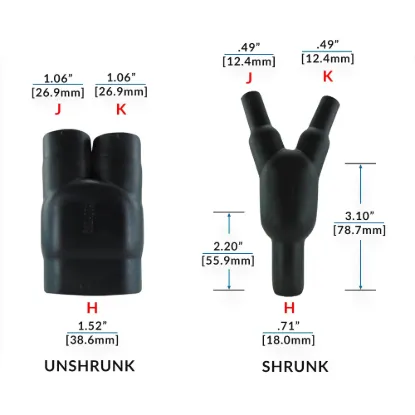

| 382A034 | 38.6 [1.52] | 18.0 [.71] | 26.9 [1.06] | 12.4 [.49] | 78.7 [3.10] | 55.9 [2.20] | 3.05 [.12] | 2.54 [.10] |
| 382A046 | 55.6 [2.19] | 25.9[1.02] | 26.9 [1.06] | 12.7 [.50] | 111.8 [4.40] | 71.1 [2.80] | 4.57 [.18] | 2.54 [.10] |
| Note: Coating is optional. As supplied dimensions appearing in table are for uncoated parts. When coating is added, entry diameters will be reduced by 1.5 [.06] max. | ||||||||
$11.700 / Each
Y HEAT SHRINK BOOTRaychem/TE Connectivity
Item No. 382A023-25-0
100 EA due on 06/20/2025
