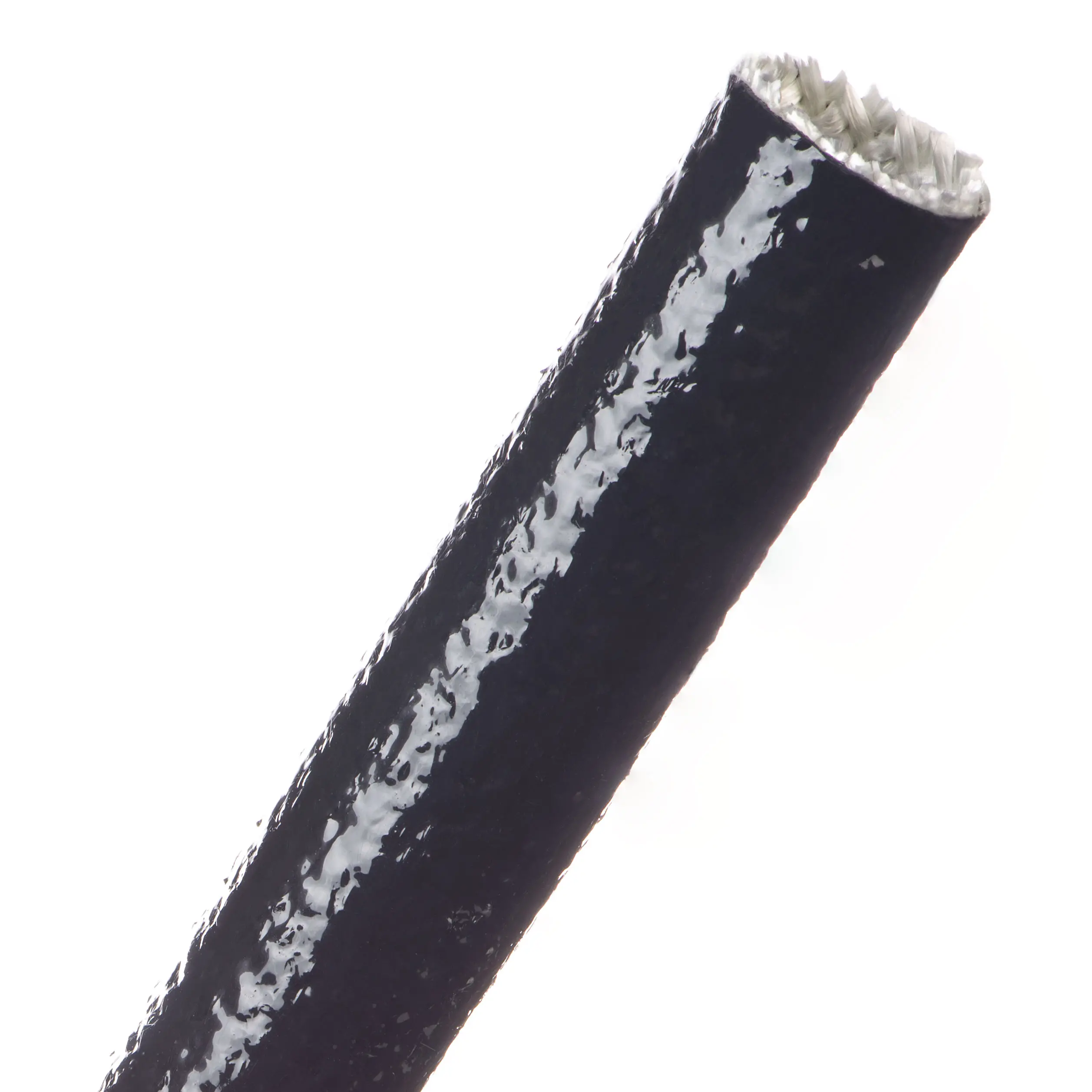

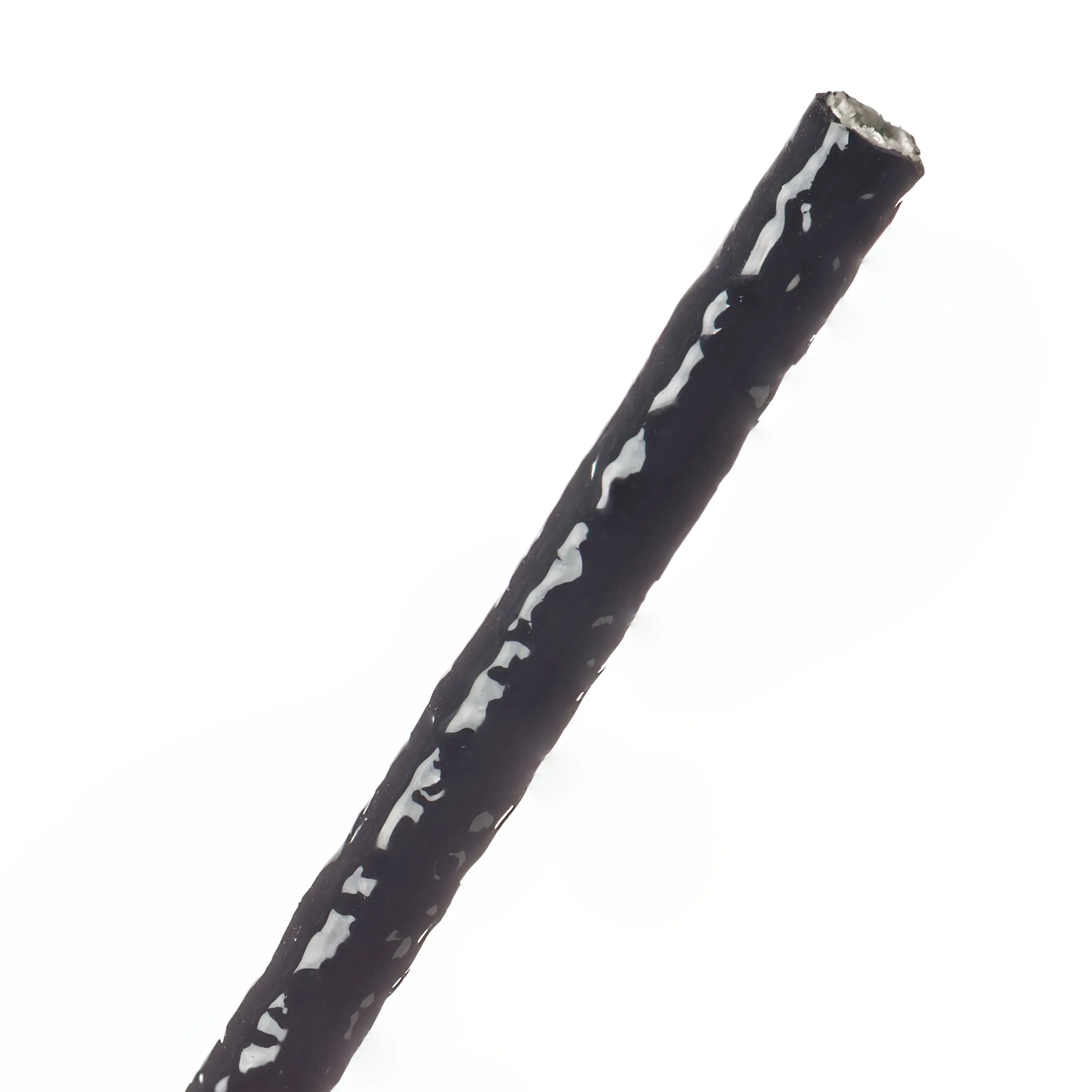

FIREFLEX® HEAT SLEEVE
FireFlex® fiberglass/silicone sleeving is engineered to protect hoses, cables, and wire harnesses from damage due to exposure to extreme heat, open flame, molten splash, and welding sparks. The thick, high-temperature fiberglass sleeve is jacketed with a non-permeable, heavy silicone coating that is flexible enough to follow tight radius curves, resists all automotive chemicals and solvents, and provides a substantial level of abrasion and puncture protection.
FireFlex® is completely non-conductive, will not melt, delaminate, become brittle or support combustion under normal conditions, and provides a professional-level solution to thermal protection needs in any application.
- Stable to 500ºF
- Cut And Abrasion Resistant
- Halogen Free
- Resists Gasoline And Engine Chemicals
Techflex Fireflex Datasheet (PDF, 334 KB)
Nominal Size | Part Nbr. | Dash No. | Lbs/ 100' |
1/4" | FIN0.25 | -.04 | 4.80 |

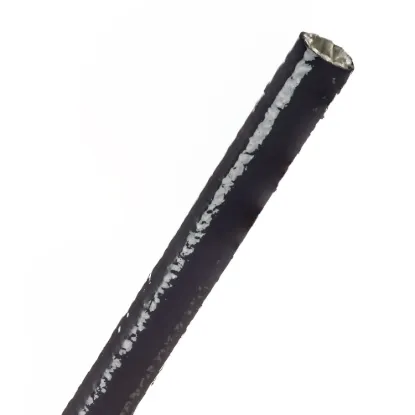

3/8" | FIN0.38 | -06 | 6.30 |

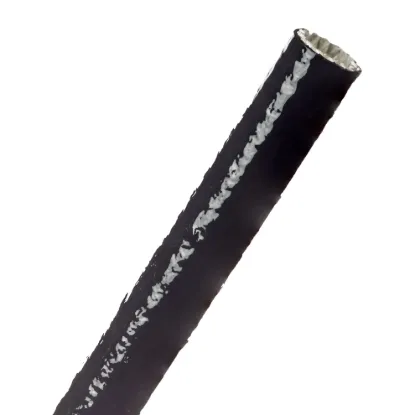

1/2" | FIN0.50 | -08 | 7.40 |

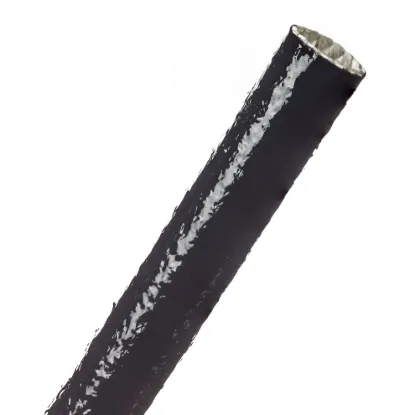

5/8" | FIN0.63 | -10 | 8.80 |
3/4" | FIN0.75 | -12 | 9.80 |
7/8" | FIN0.88 | -14 | 10.10 |

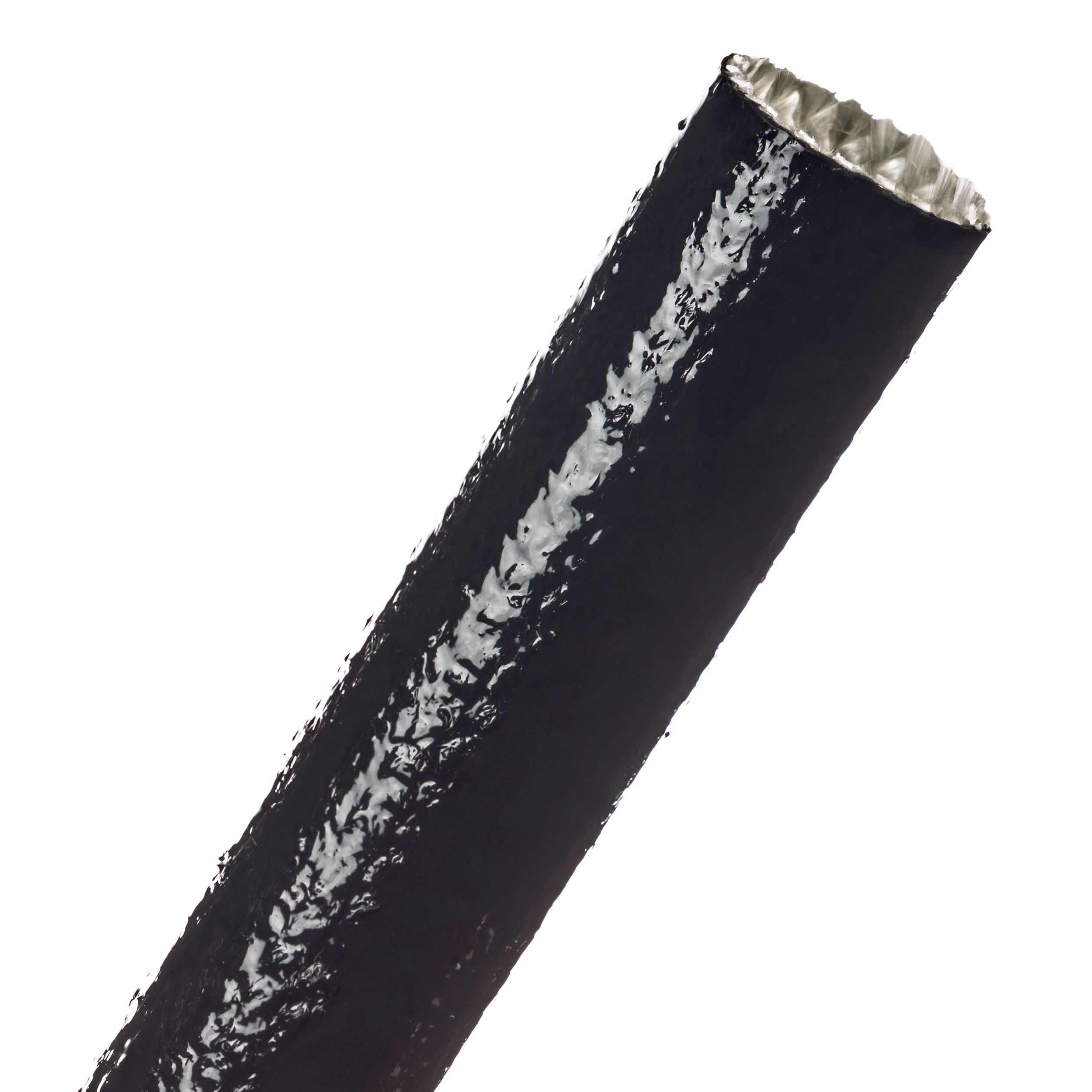

1" | FIN1.00 | -16 | 13.50 |

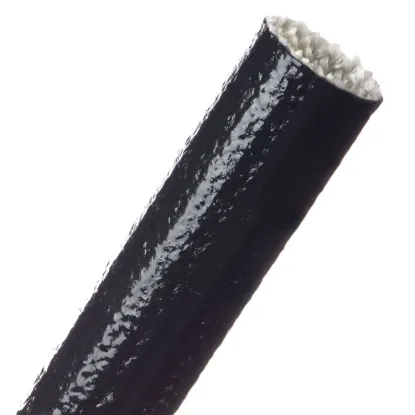

1 1/4" | FIN1.25 | -20 | 14.00 |

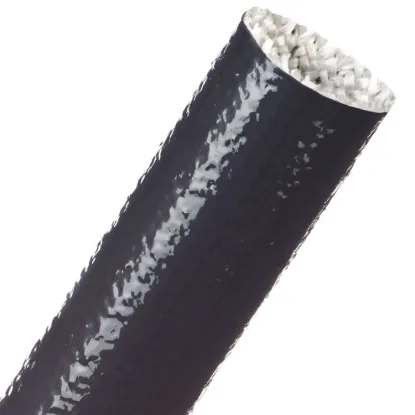

| 1 1/2" | FIN1.50 | -24 | 14.70 |

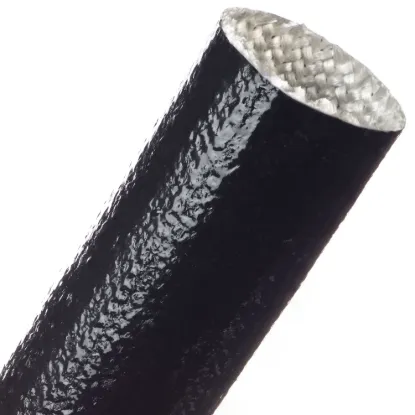

| 1 3/4" | FIN1.75 | -28 | 16.30 |

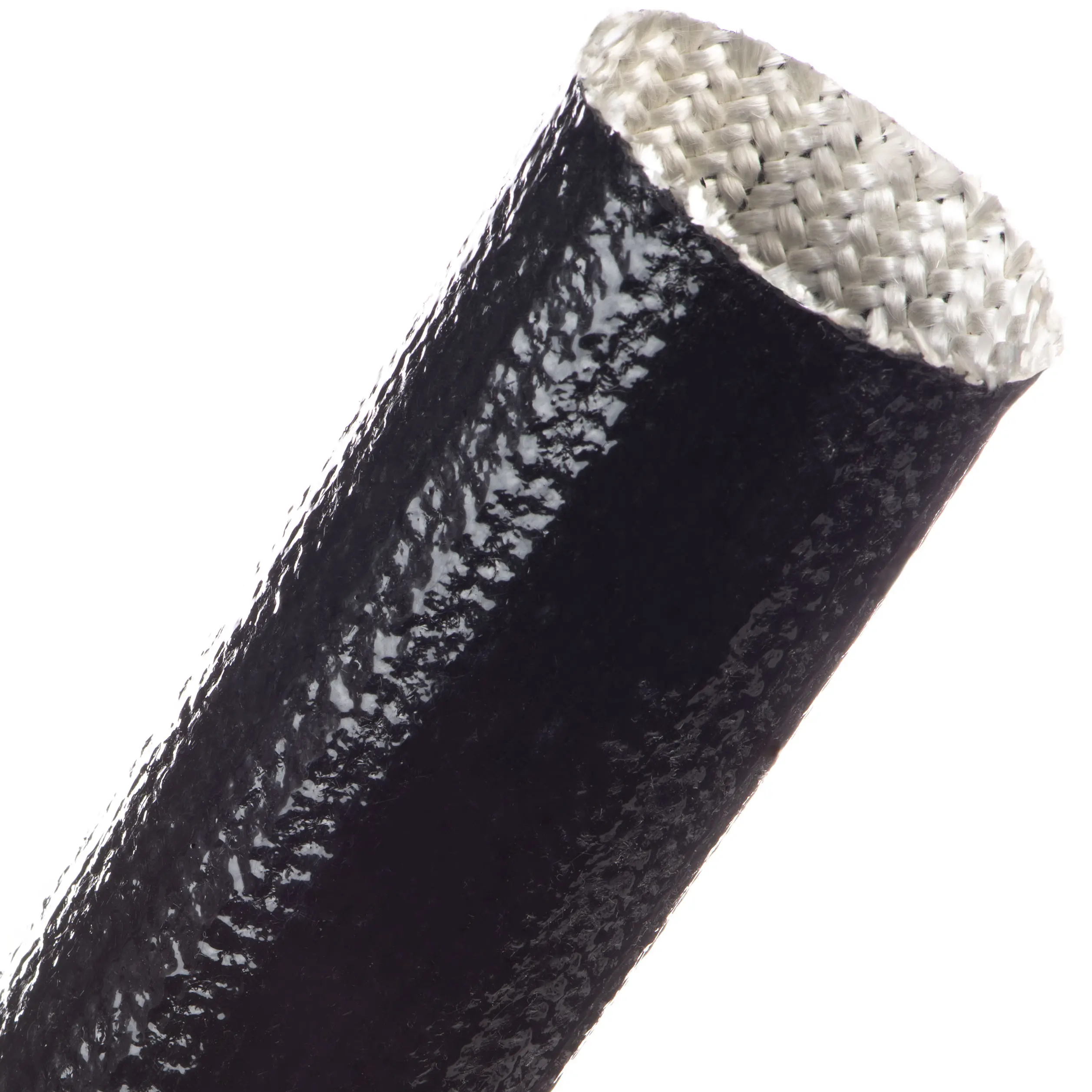

| 2" | FIN2.00 | -32 | 20.50 |

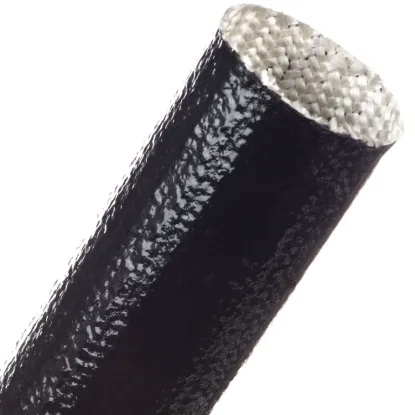

| 2 1/4" | FIN2.25 | -40 | 22.90 |
| Larger sizes available by special order | |||
