Aptiv (Delphi) GT 150 Sealed Connectors
The Aptiv (formerly Delphi) GT 150 Series is a compact, sealed connection system built around 1.5 mm tangless terminals with one of the lowest mating forces in the industry. A pump-handle primary lock, terminal position assurance (TPA) and single wire seals make it a common choice for engine sensors, lighting and harness connections where space is tight.
- Sealed housings from 2 to 16 ways, black, inline / free hanging
- Wire range 22-16 AWG (0.35-1.0 mm²)
- Up to 15 amps per terminal
- Temperature range -40°C to +125°C
- 4.5 mm terminal spacing, 1.5 mm blade
- Tin plated terminals; GT terminals are USCAR compliant
Building a GT 150 connector
Each connector half needs a housing, its TPA, one terminal and one wire seal per wire. The female housing (plug) takes female terminals and mates with the male housing (receptacle), which takes male terminals. The same TPA fits both halves.
| Ways | Female housing (plug) | Male housing (receptacle) | TPA |
|---|---|---|---|

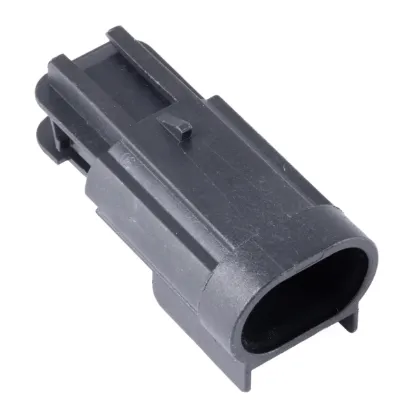

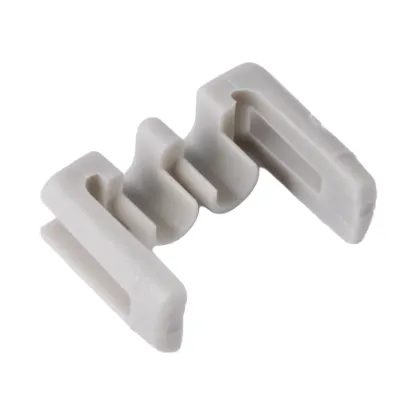

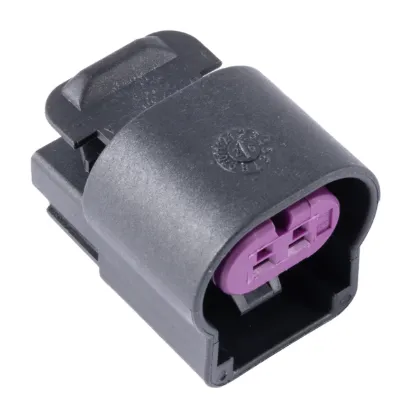

| 2-way | 13510085 | 13510099 | 15355128 |

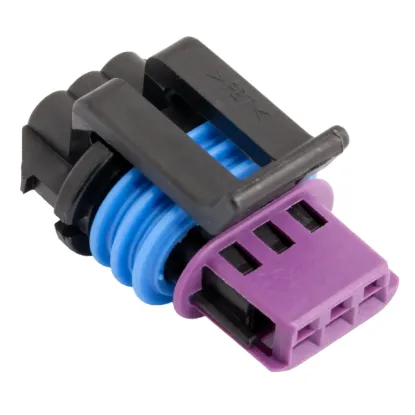

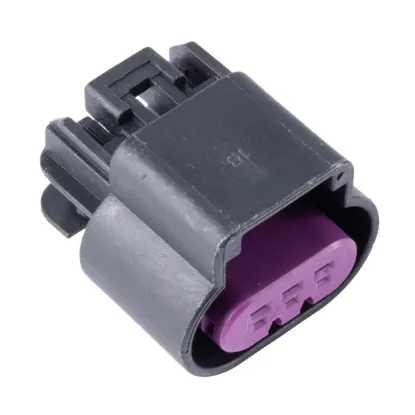

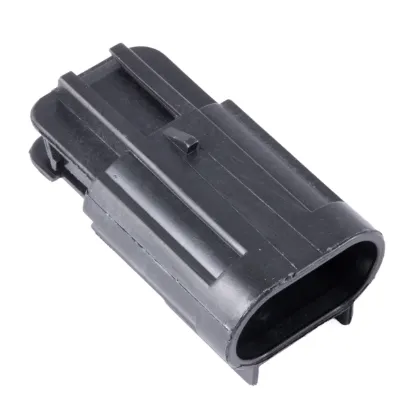

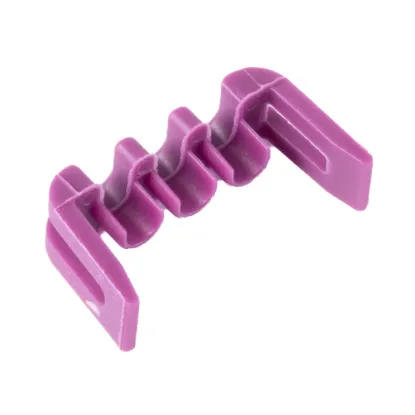

| 3-way | 13519047 | 13519049 | 15418545 |

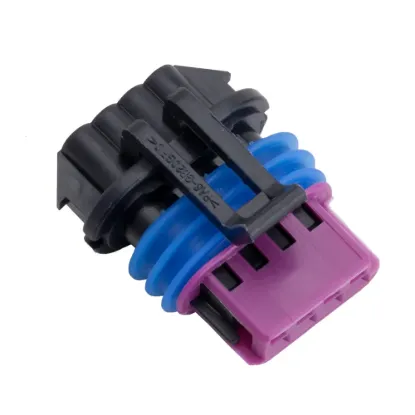

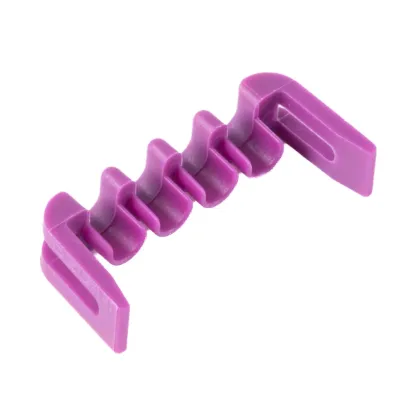

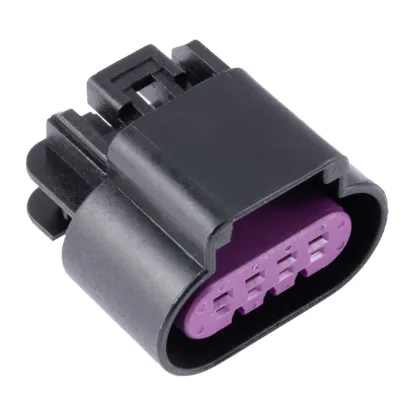

| 4-way | 15326815 | 15326820 | 15418546 |

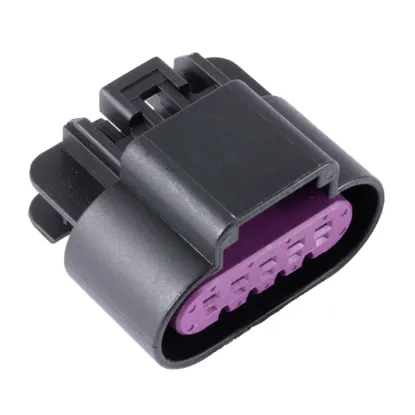

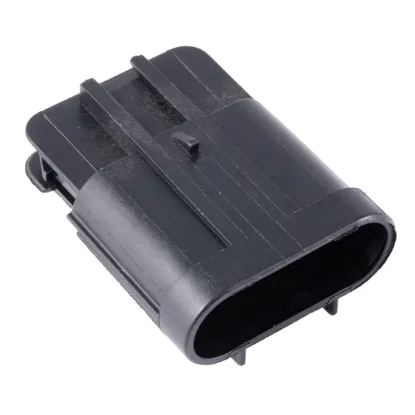

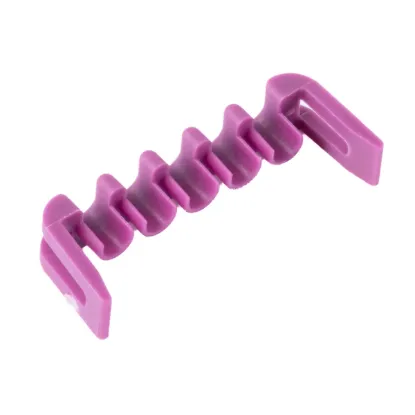

| 5-way | 15326822 | 15326827 | 15418547 |

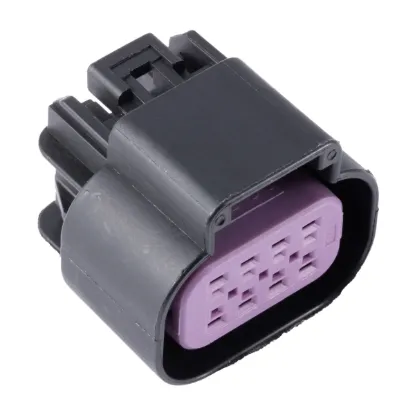

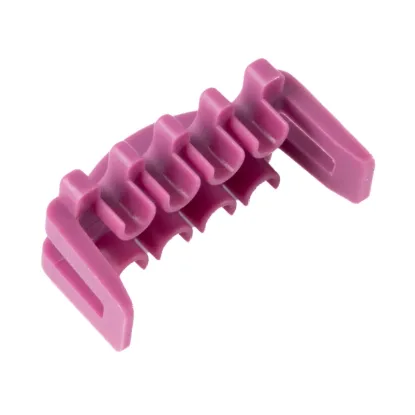

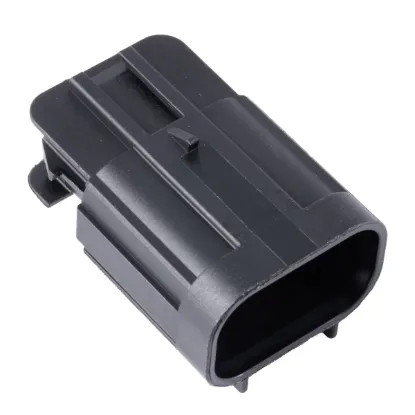

| 8-way | 15326835 | 15326840 | 15418415 |
| 10-way | 15326842 | 15326847 | 15418288 |

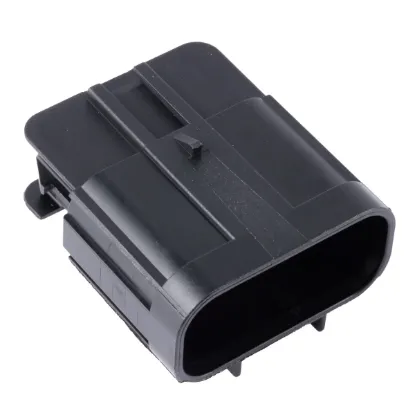

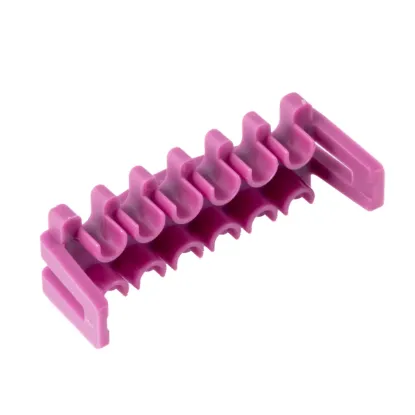

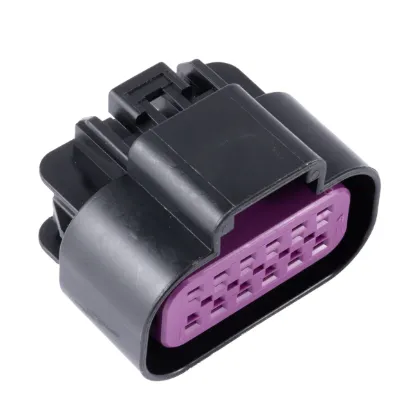

| 12-way | 15326849 | 15326854 | 15430903 |

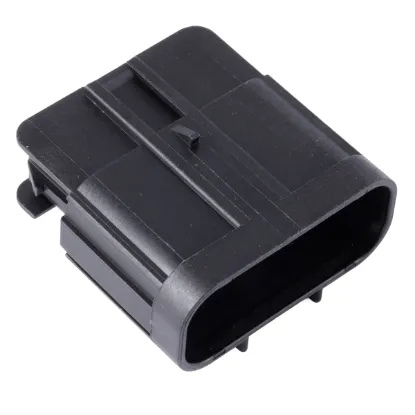

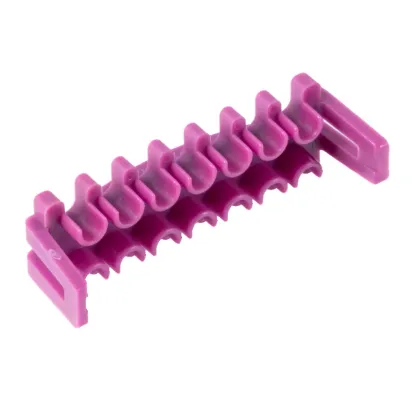

| 14-way | 15326856 | 15326861 | 15430904 |
| 16-way | 15326863 | 15326868 | 15358785 |
Terminals and wire seals
Choose the terminal and seal by wire size; the seal is sized to the wire's insulation diameter.
| Wire size | Female terminal | Male terminal | Wire seal |
|---|---|---|---|
| 18-16 AWG (0.75-1.0 mm²) | 15326265 | 15326269 | Blue 15366060 (1.86-2.40 mm insulation) |

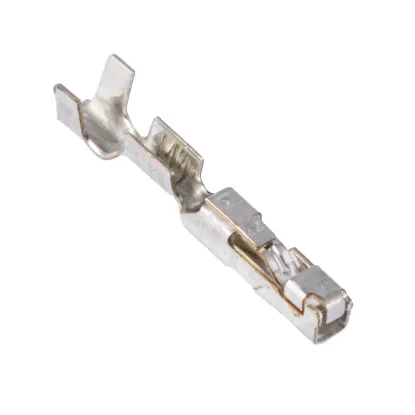

| 22-20 AWG (0.35-0.5 mm²) | 15326266 | 15326268 | White 15366021 (1.20-1.90 mm insulation) |
Tools
Prefer a kit?

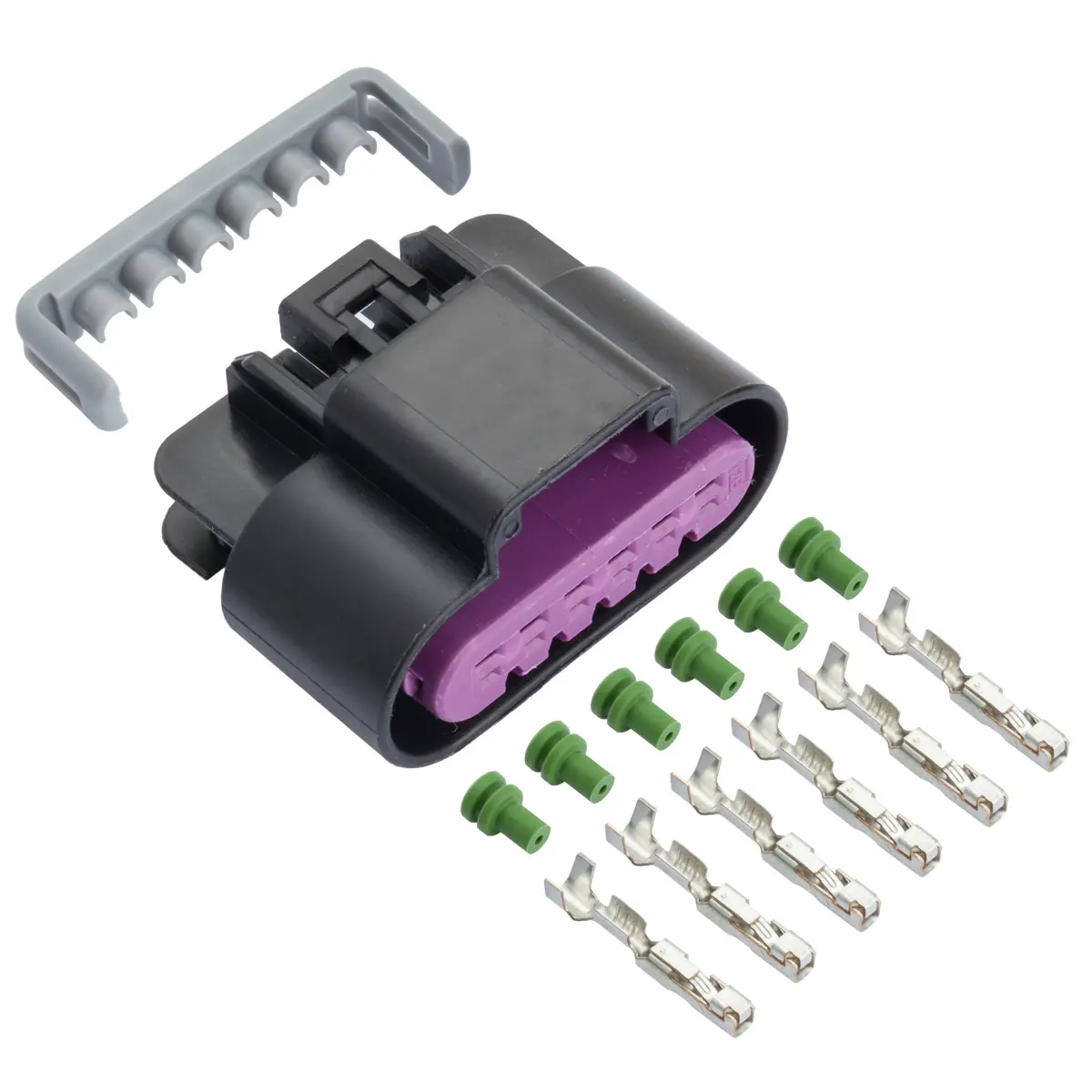

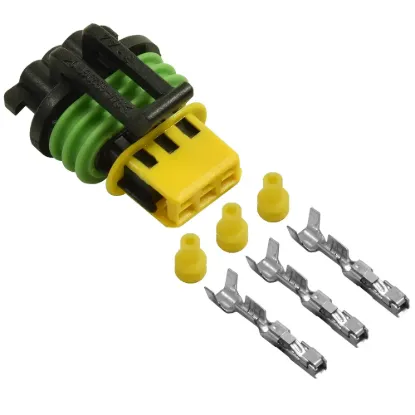

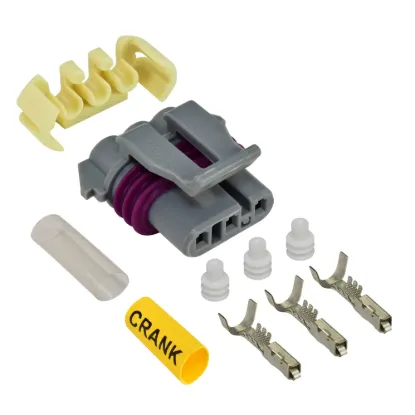

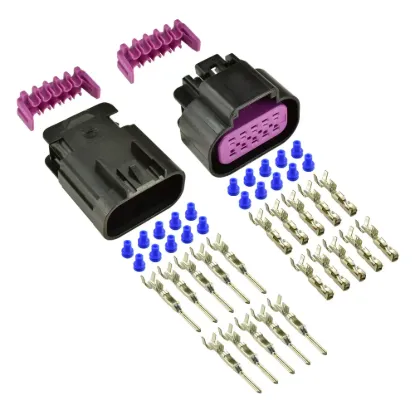

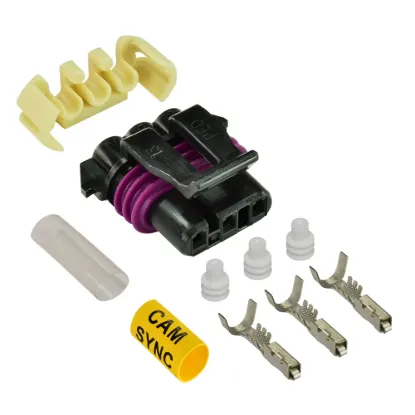

Our GT150 Kits include the housing(s), TPA, terminals and seals for a connector or a mating pair in one part number, and the GT150 Master Connector Kit is a complete shop kit.
Use the filters to narrow the list by component type, number of ways, wire size and gender.
Documents
- Aptiv GT 150 / 280 / 630 Series Connection Systems datasheet (PDF)
- Each part page lists its own Aptiv customer drawing and 3D CAD model (STEP) when available.
