SUMITOMO W5DL

DUAL WALL SEMI-RIGID POLYOLEFIN ENCAPSULANT LINED

High Shrink Ratio

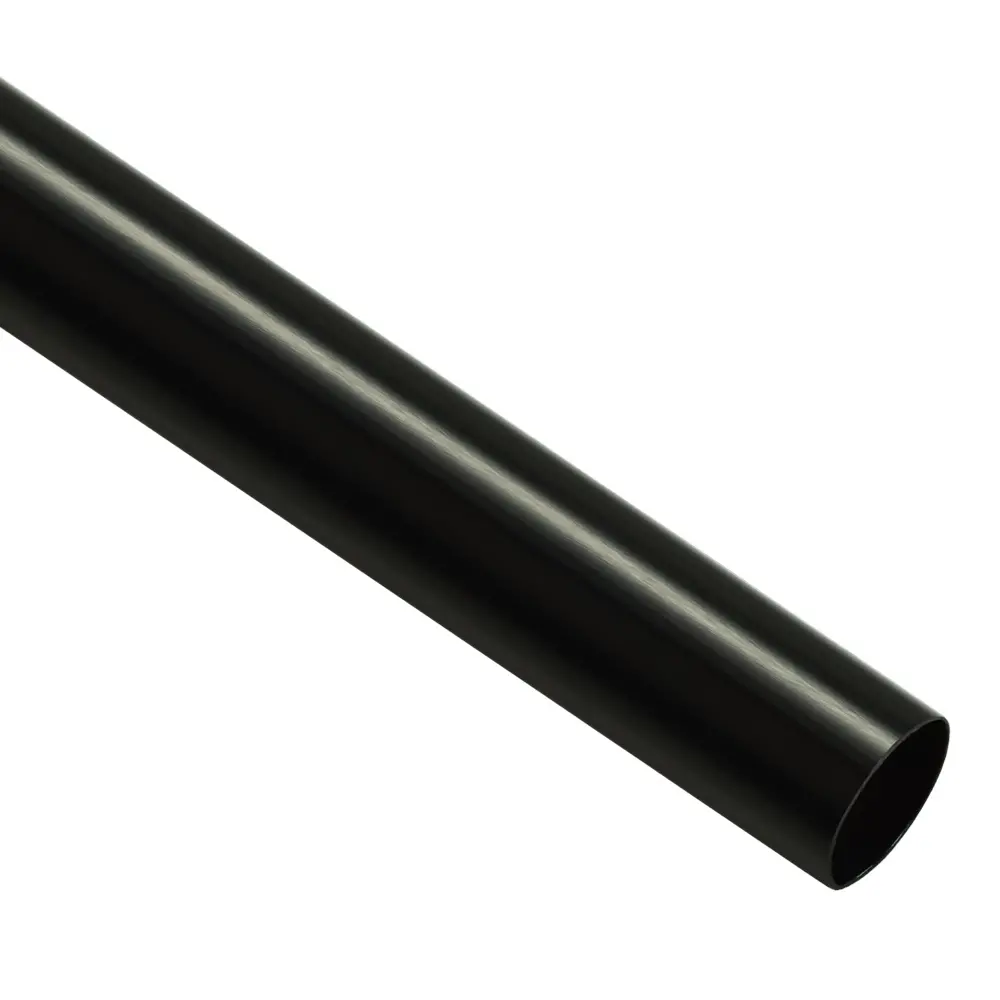

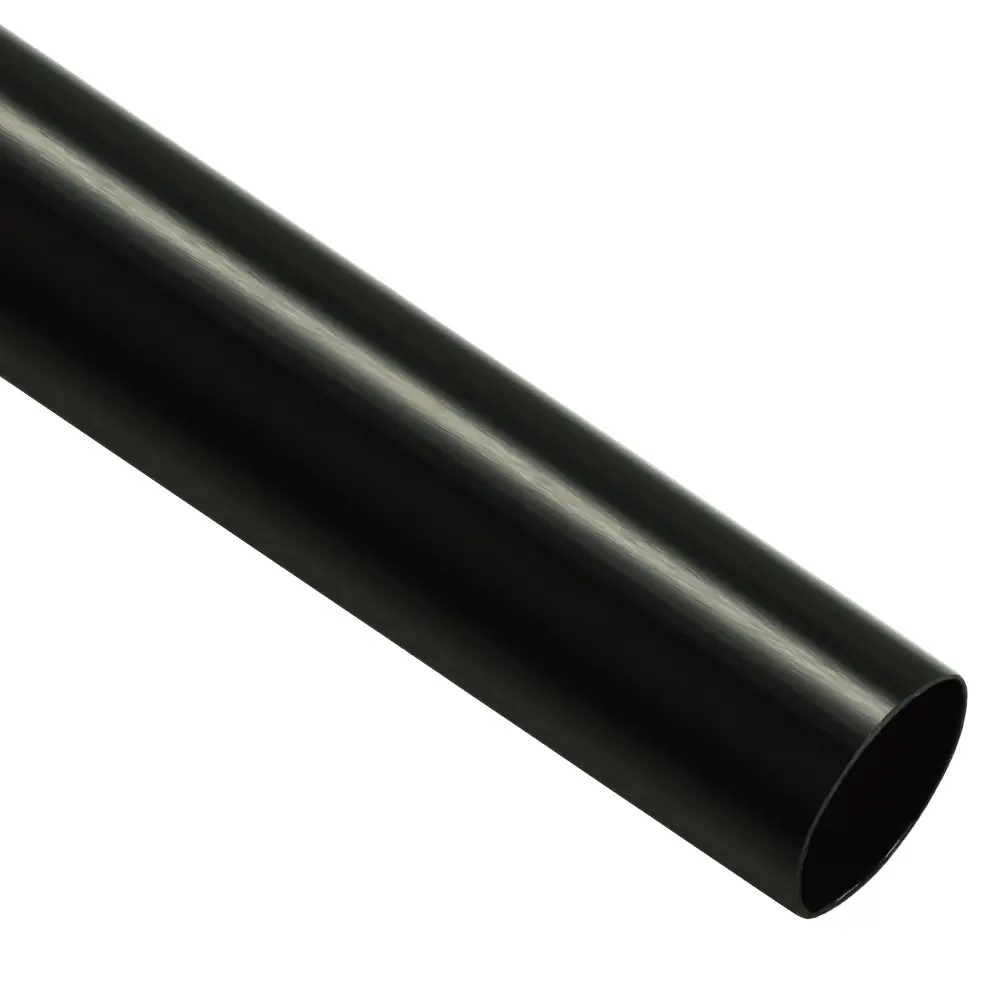

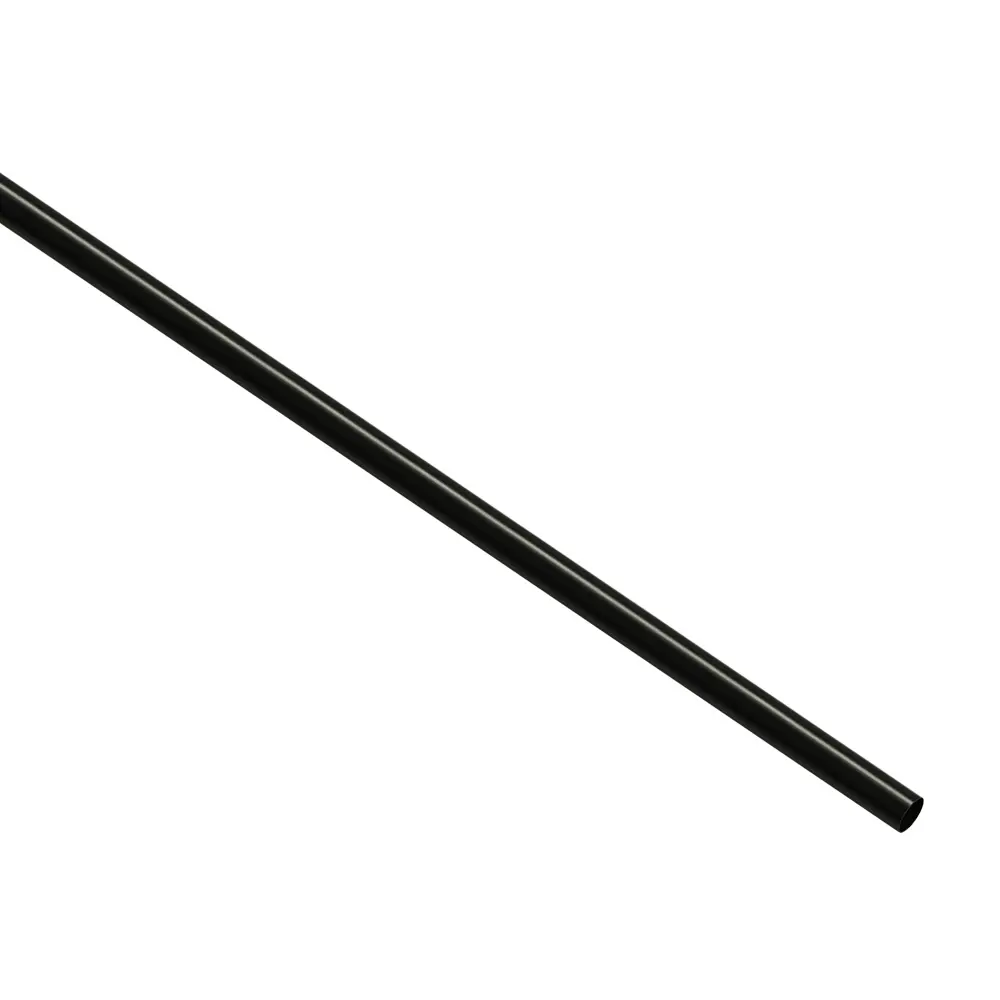

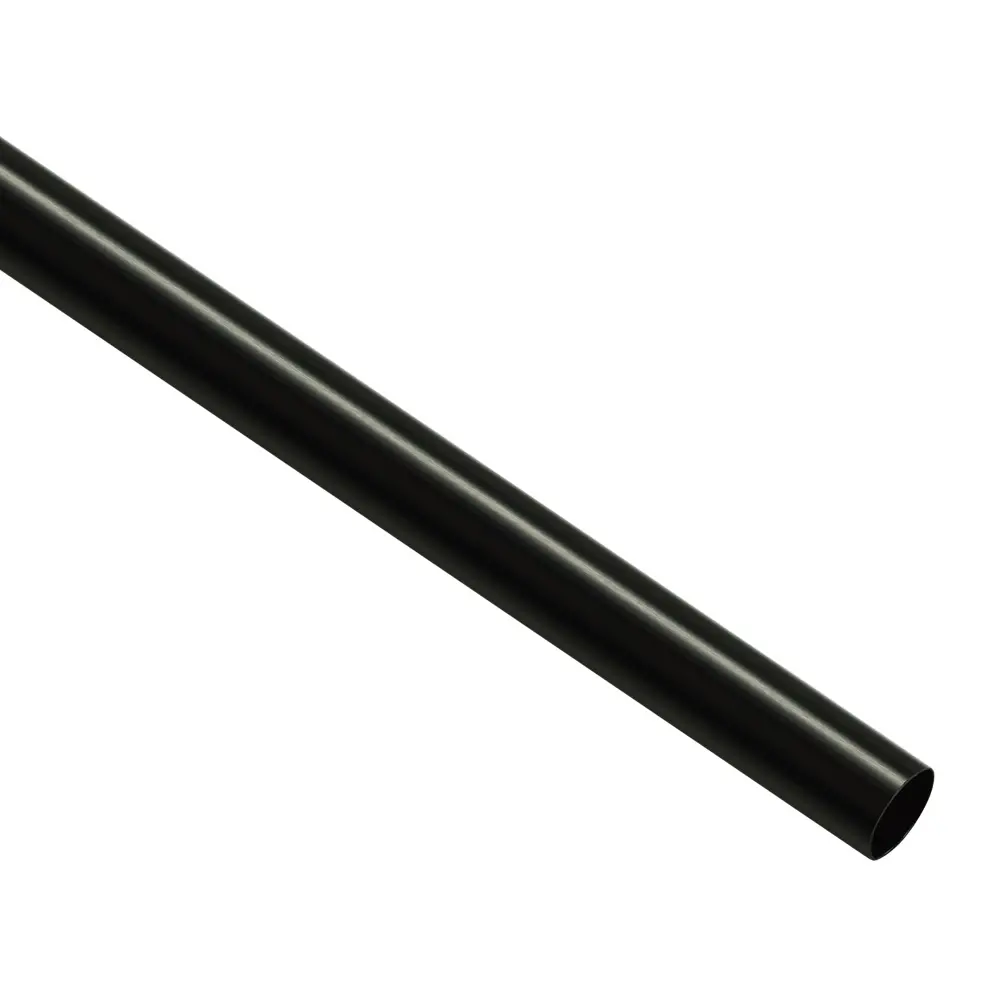

Sumitomo W5DL is a semi-rigid, dual-wall, non-flame retarded polyolefin heat-shrinkable tubing. Upon heat application, the inner liner melts and flows to encapsulate components or splices within.

W5DL is recommended in applications for connections and wire harnesses where filling voids and interstices are of importance. In addition, W5DL provides good strain relief because it does not adhere to the substrate material; it can be removed to repair components.

SUMITUBE W5DL is an excellent alternative to Raychem SCL. Both W5DL and SCL share the same Mil-Spec and UL ratings.

Sumitomo W5DL Datasheet (PDF, 35 KB)

Product Facts

• Shrink Ratio: 3:1
• Shrink Temperature: 140ºC
• Sold In 4Ft Sticks
• Standard Color: Black
• It can be used for inline breakouts /transitions
• Perfect for sealing the ends of ring terminals and connectors
• Adhesive Color: Black
• Meets or exceeds the requirements of AMS-DTL-23053/4, Class 1
• UL recognized 125º C, 600 volts under File E75077
