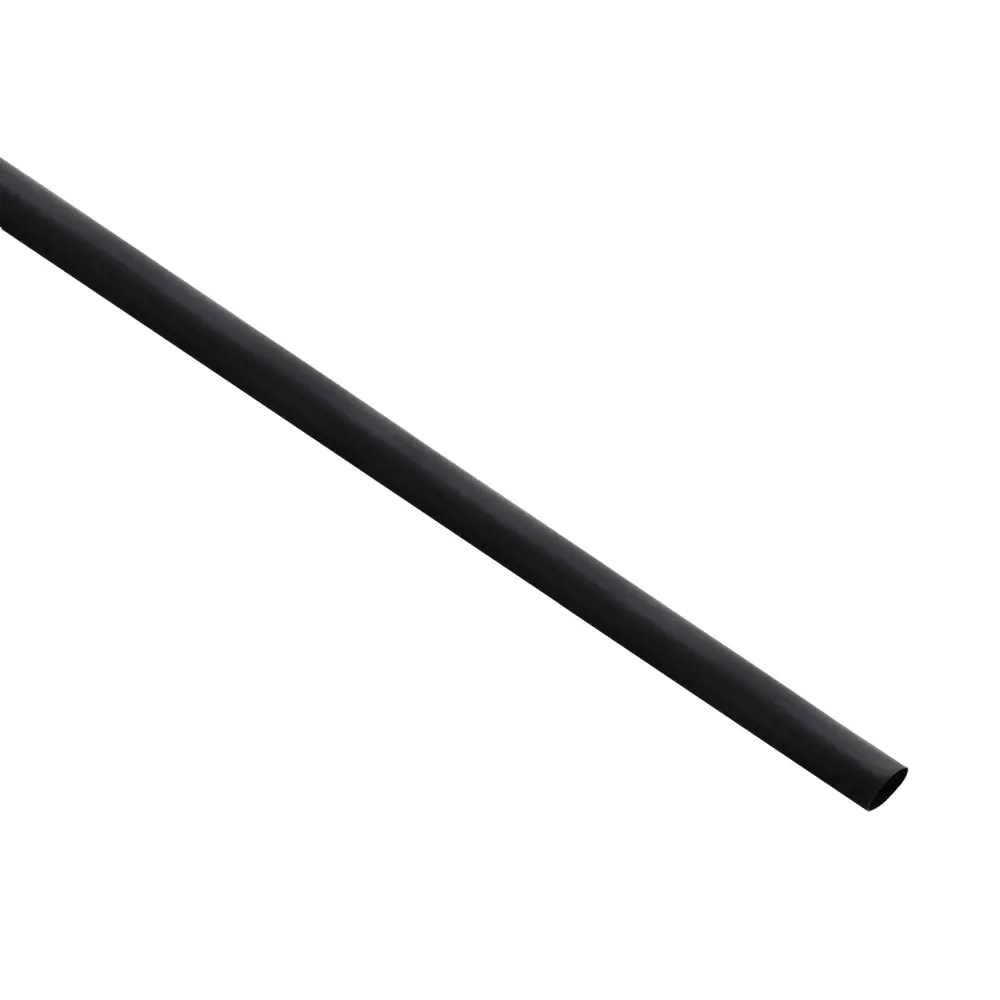

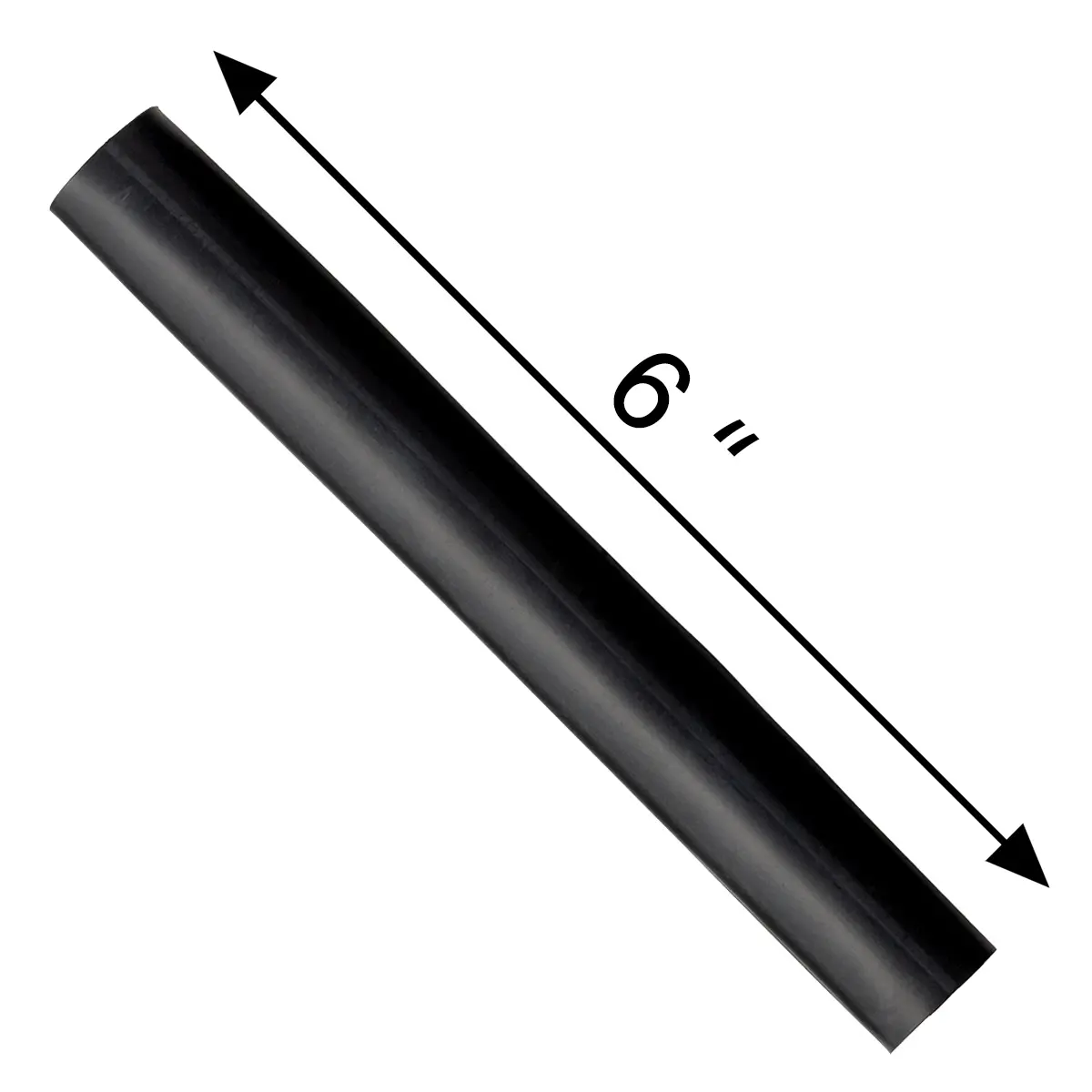

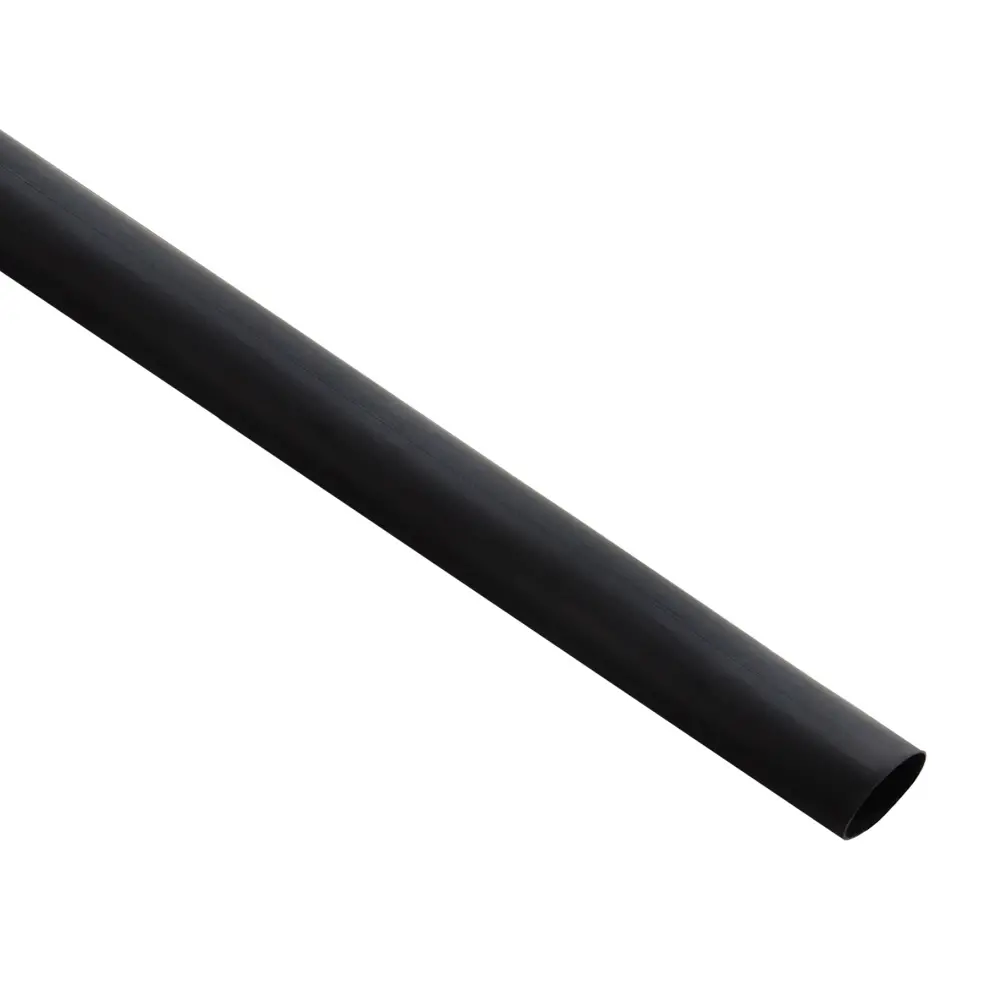

Raychem ATUM Tubing 4:1

4:1 High-Shrink-Ratio, Adhesive-Lined Polyolefin Tubing

Environmentally seals and protects a wide variety of electrical applications, including back-end connector sealing, breakouts, and connector-to-cable transitions. In addition, a high expansion ratio makes it possible to repair most damaged cable jackets without removing connectors.

The installed tubing provides rugged protection against abrasion, vibration, and flexing. A wide range of applications can be accommodated with only a few sizes of ATUM tubing.

Raychem ATUM Datasheet (PDF, 109 KB)

Temperature Rating:

Full recovery temperature: 110ºC
Continuous operating temperature: 55ºC to 110ºC

Specifications:

UL: E85381
Military: AMS-DTL-23053/4 Class 3
Shrink Ratio: 3:1
Voltage Rating: 600V

Size	Expanded as supplied	Recovered after heating	Total wall**	(nom.) Meltable wall
Inside diameter			Recovered wall thickness

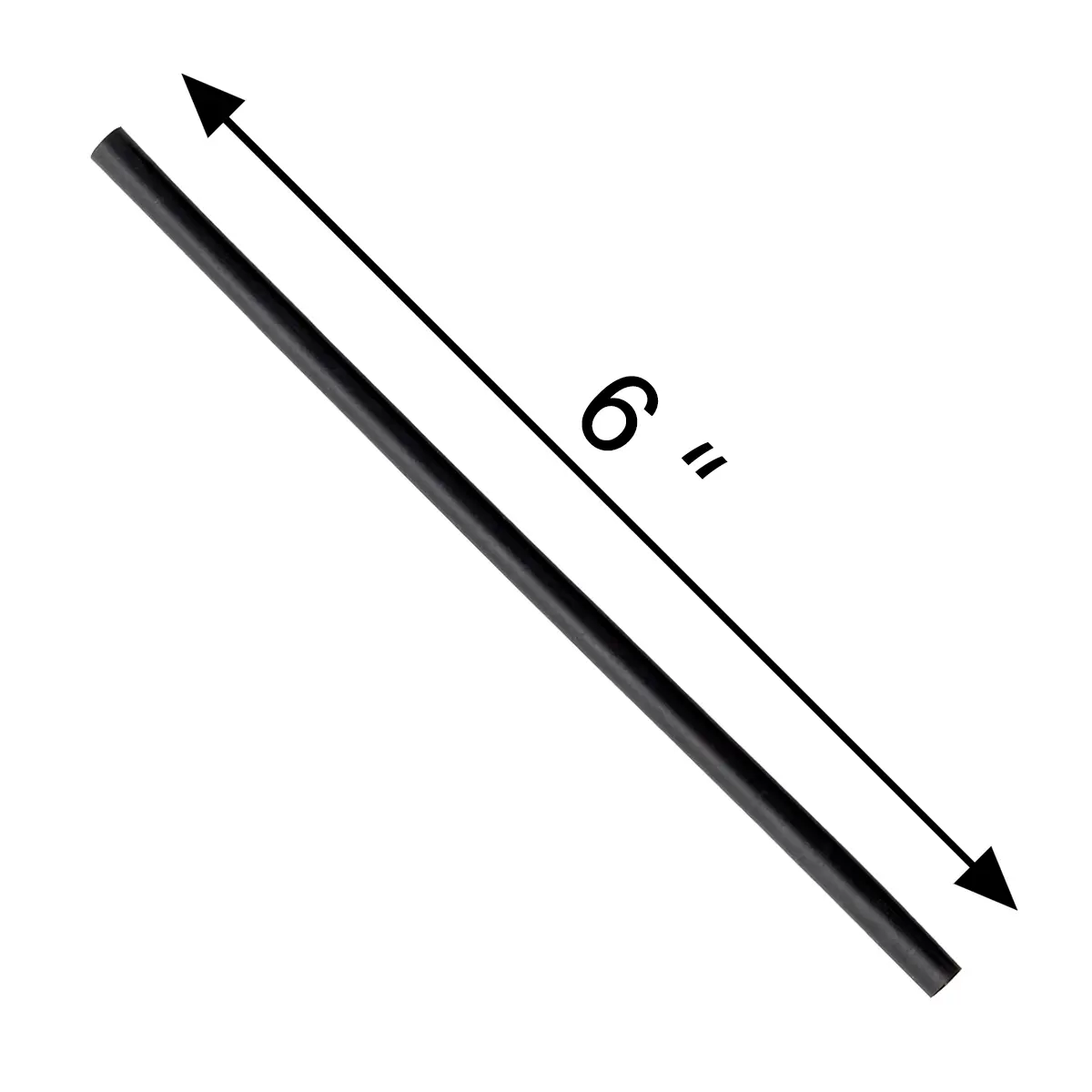

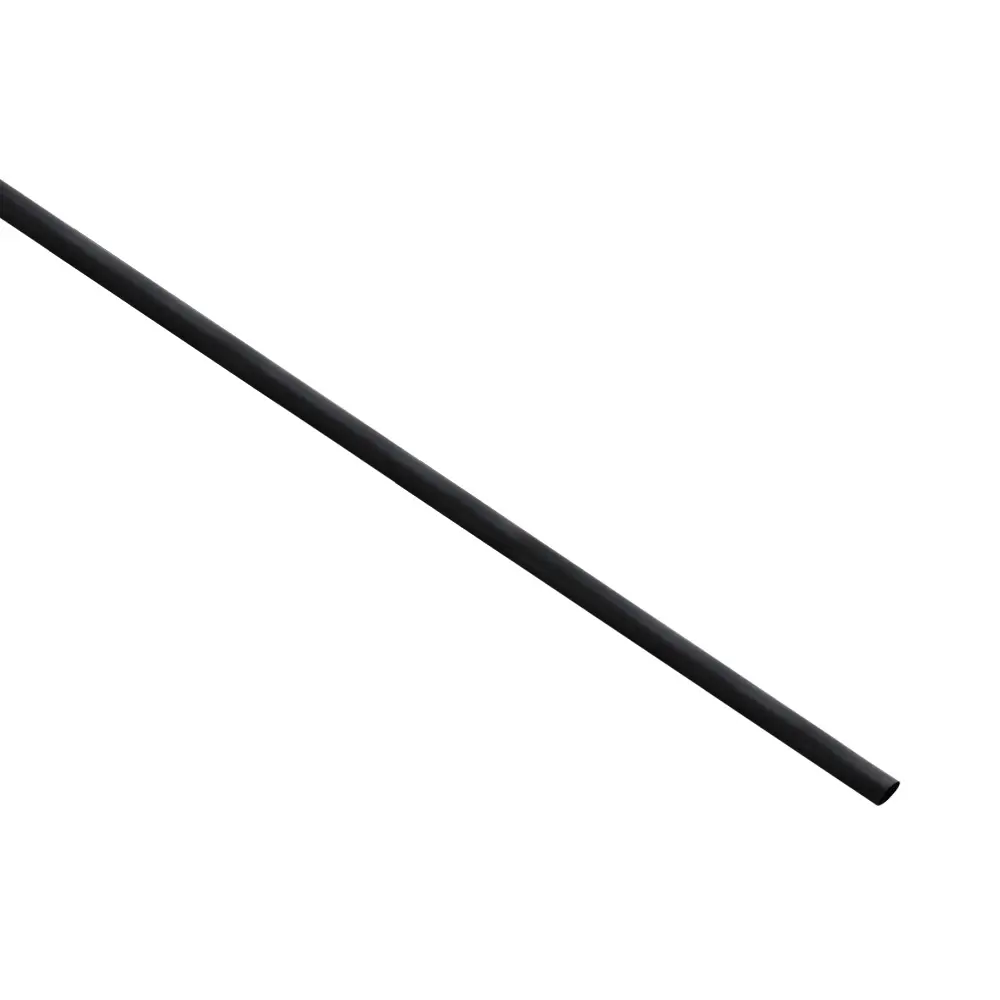

4/1	4mm [0.157"]	1mm [0.039"]	1.00mm ± 0.28mm [0.039" ± 0.010"]	0.50mm [0.020"]

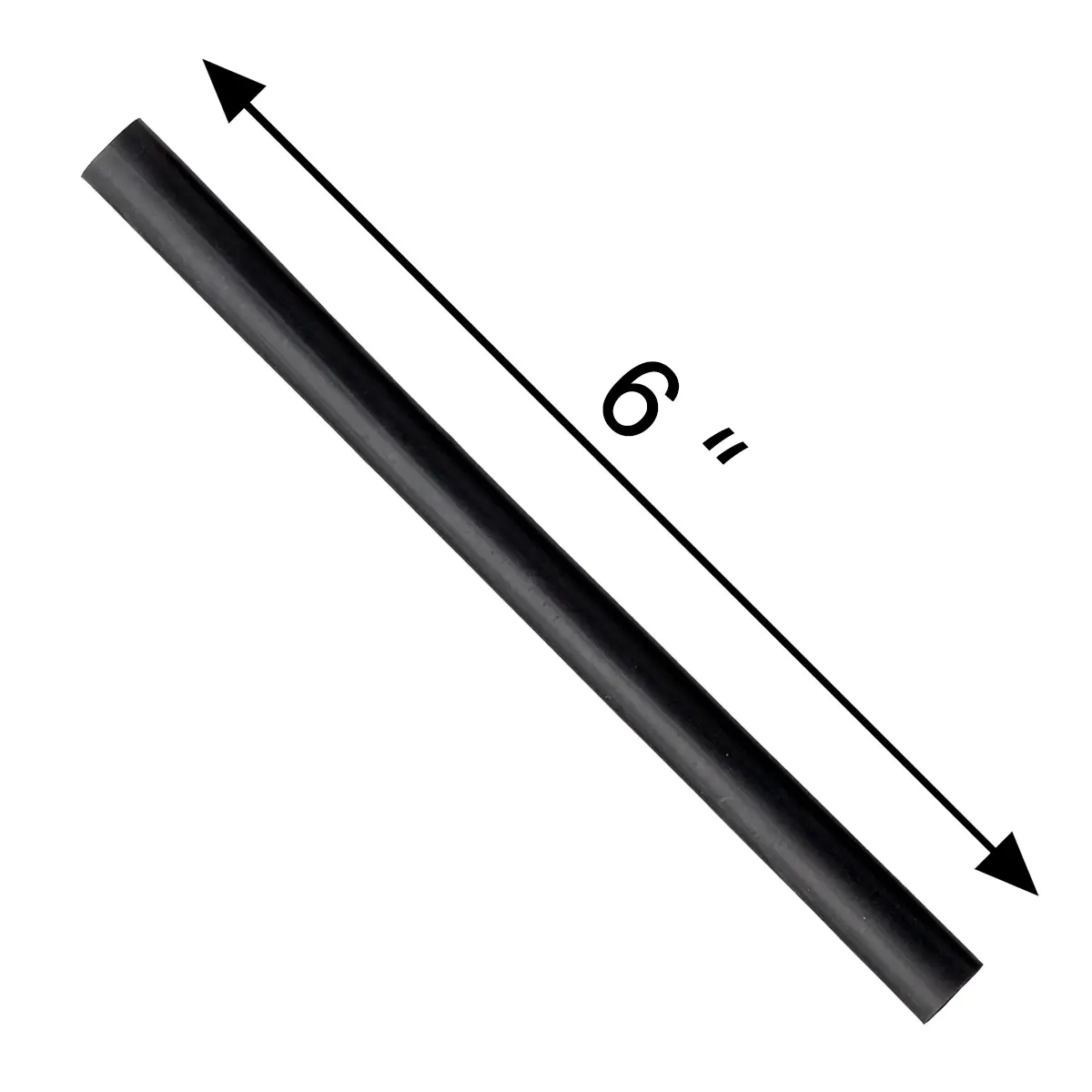

8/2	8mm [0.315"]	2mm [0.079"]	1.00mm ± 0.28mm [0.039" ± 0.010"]	0.50mm [0.025"]
12/3	12mm [0.472']	3mm [0.118"]	1.40mm ± 0.28mm [0.055" ± 0.010"]	0.61mm [0.024"]
16/4	16mm [0.630"]	4mm [0.157"]	1.78mm ± 0.38mm [0.070" ± 0.015"]	.76mm [0.030"]

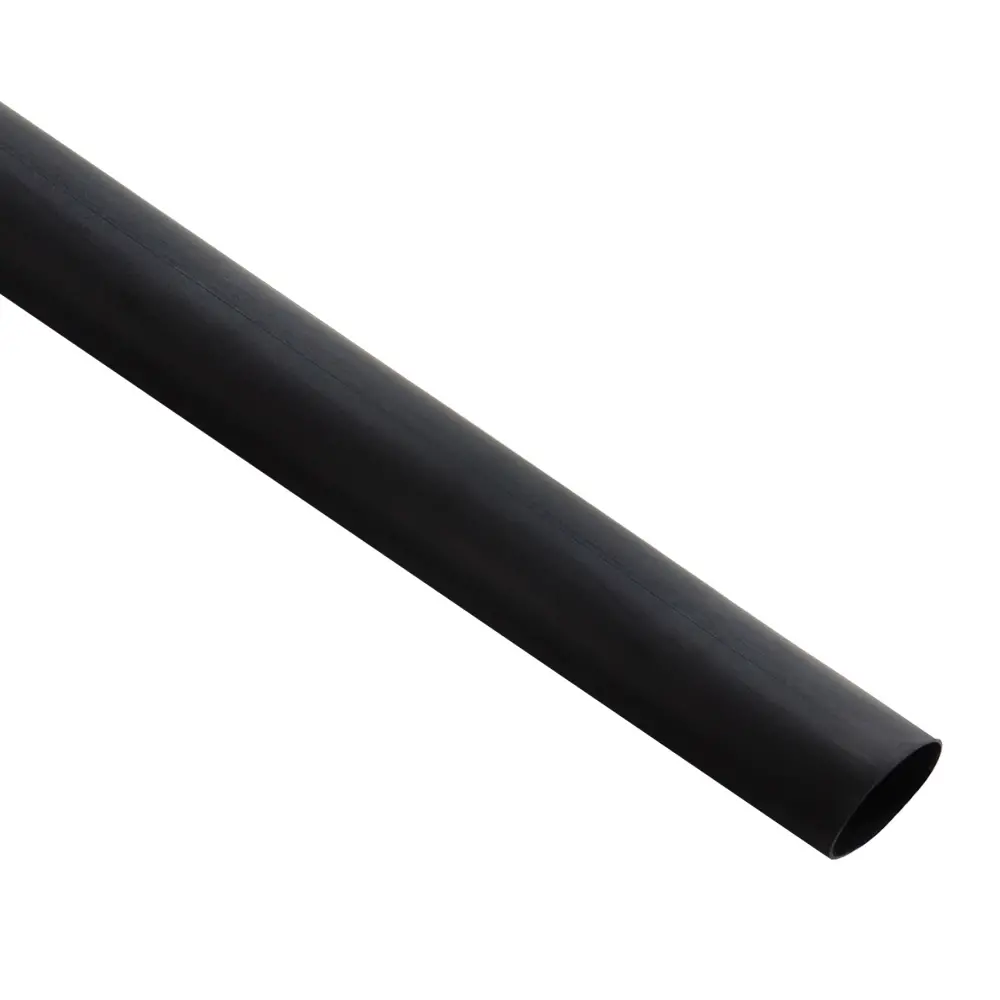

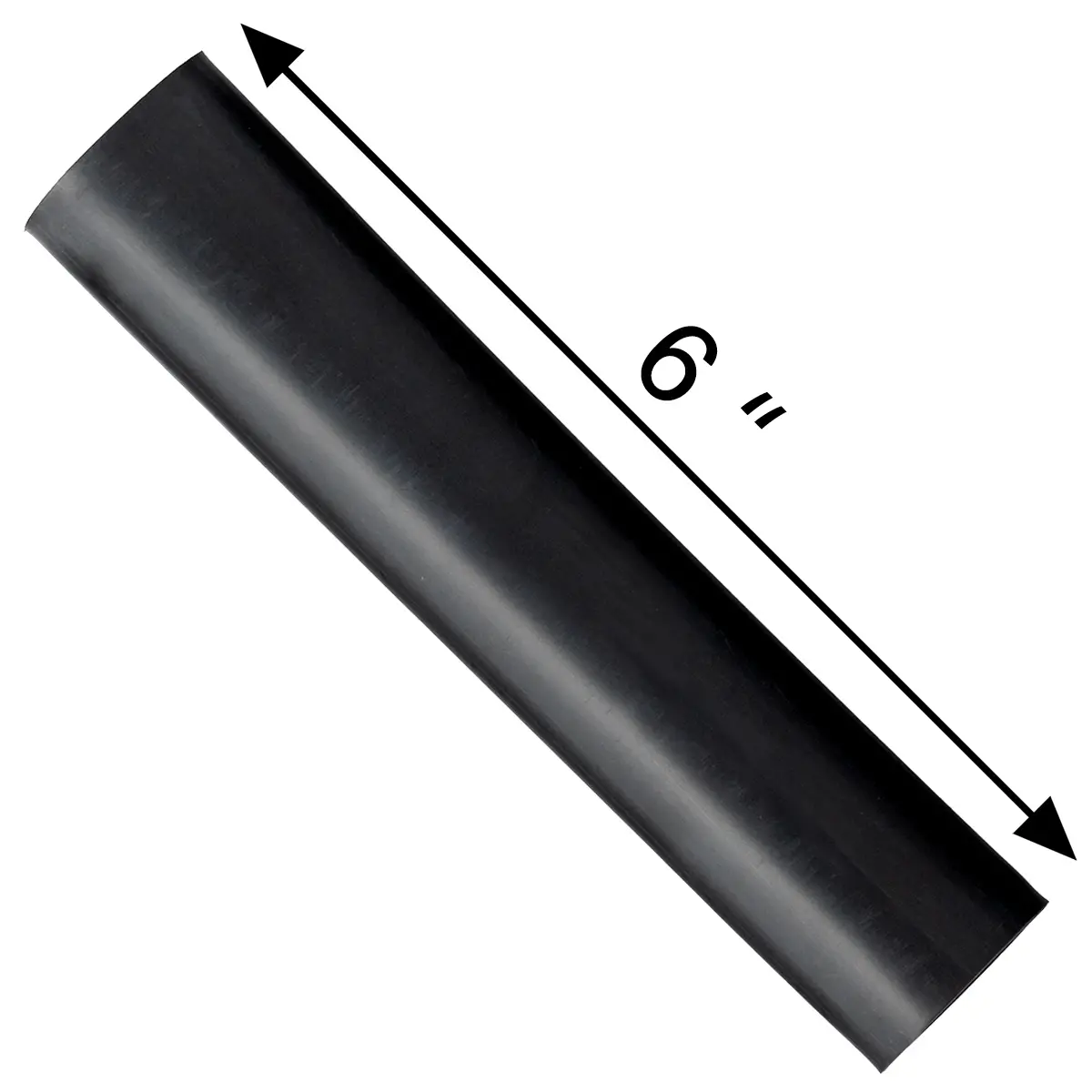

24/6	24mm [0.945"]	6mm [0.236"]	2.25mm ± 0.55mm [0.088" ± 0.022"]	.76mm [0.030"]

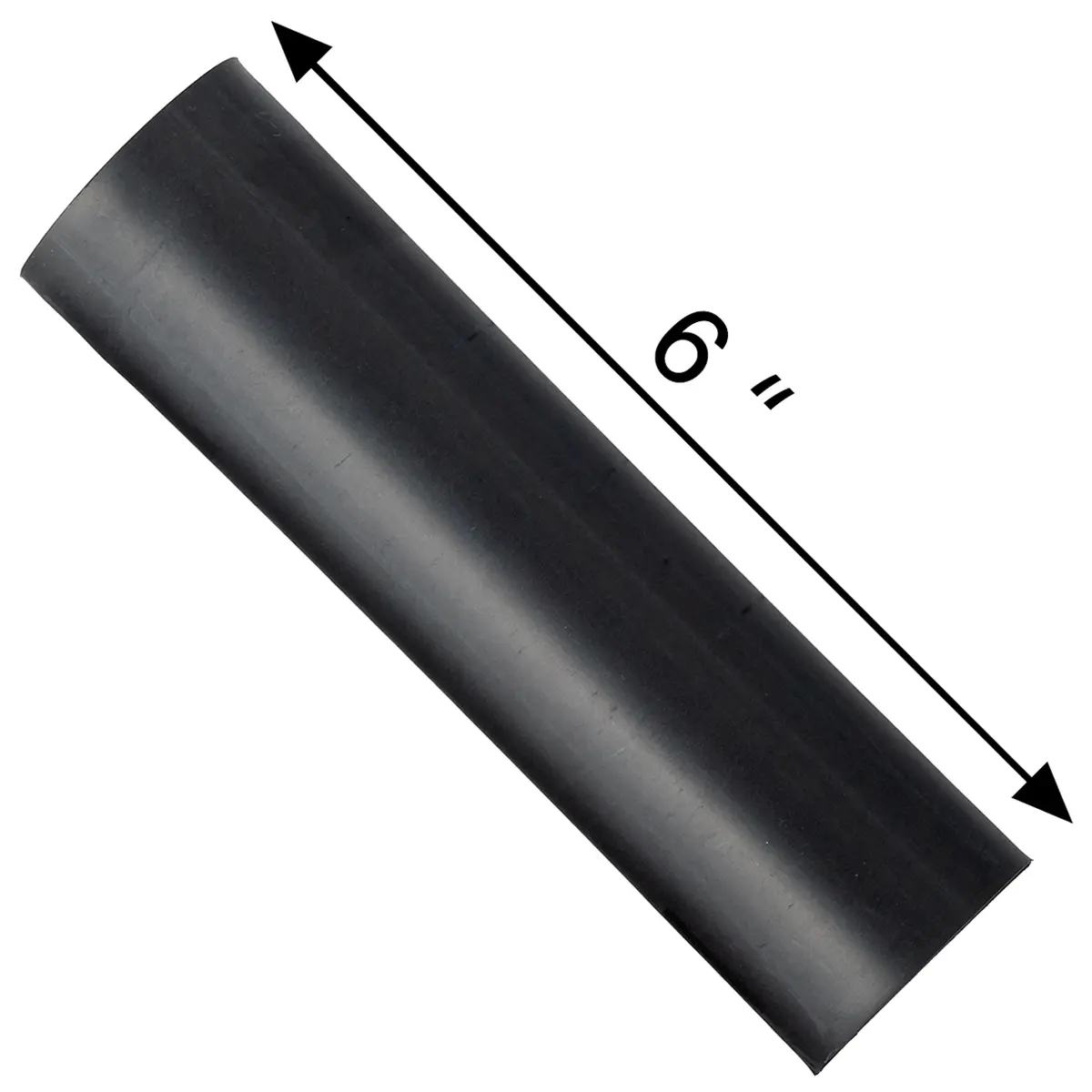

32/8	32mm [1.26"]	8mm [0.315"]	2.54mm ± 0.55mm [0.100" ± 0.022"]	1.02mm [0.040"]

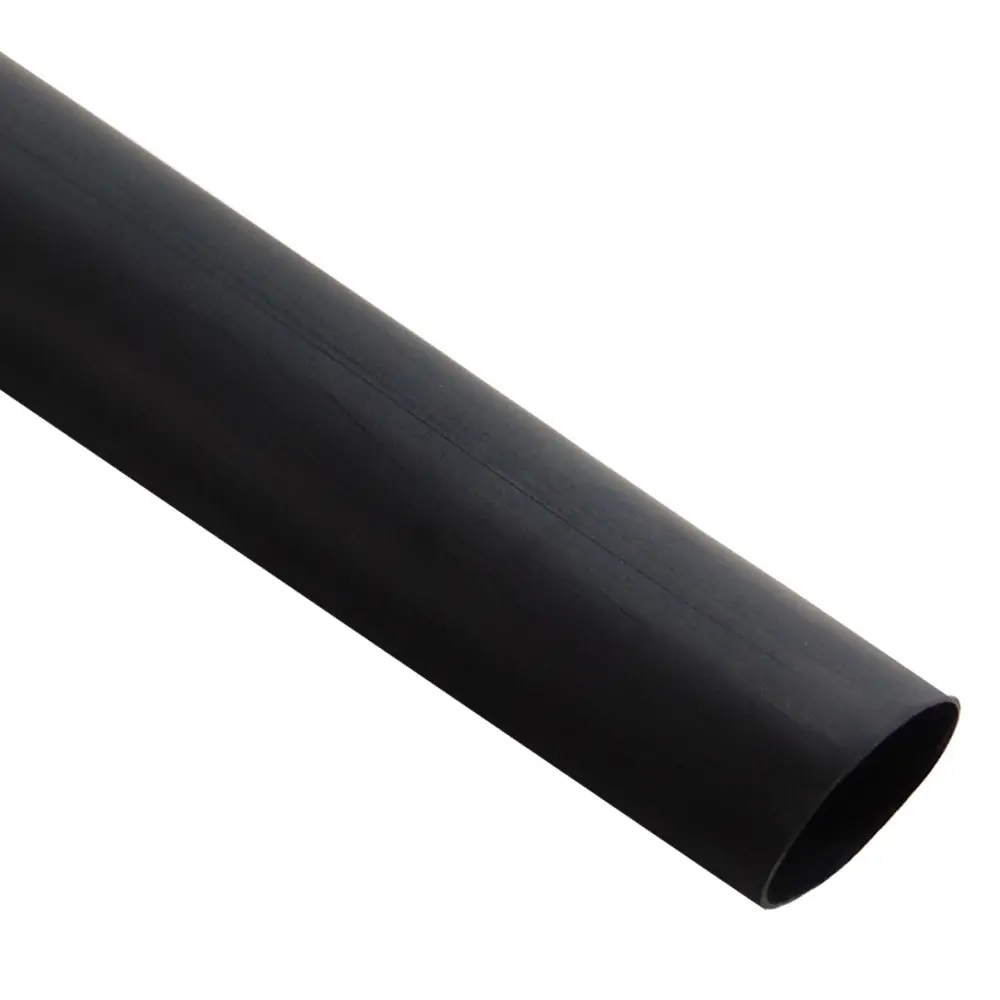

52/13	52mm [2.05"]	13mm [0.512"]	2.54mm ± 0.55mm [0.100" ± 0.022"]	1.02mm [0.040"]
**Wall thickness will be less if tubing recovery is restricted during shrinkage.
