Textalu® Aluminum Coated Fiberglass Fire-Sleeve
Textalu® is an insulative fiberglass sleeve with a heavy aluminum coating that protects components in high-temperature areas. It provides superior insulation to components that maintain stable temperatures to ensure performance efficiency. Firesleeve is used on wire harnesses, sensor control wiring, and cable assemblies near engines and exhaust systems. Due to its elastic structure, Textalu® conforms well to the variable profiles of the components it protects. Its braided construction allows good flexibility in temperatures as low as -50°C (-58°F). The infrared emissivity rating of Textalu® heavy aluminum coating and its fiberglass braid ensures temperature stability inside the sleeve despite frequent external temperature fluctuations due to radiant heat.
Textalu® Datasheet (PDF, 51 kb)
- Rigid: Raychem SCL Glue Lined Shrink 3:1
- Semi-Rigid: Raychem ATUM Glued Lined Shrink 3:1
- Semi-Rigid: Raychem ATUM Glue Lined Shrink 4:1
Product Highlights:
- Operating Temperature from -50°C (-58°F) to +225°C (-58°F to +437°F)
- Fiberglass construction withstands temperatures to +550°C (+1022°F)
- Slightly expandable tubular sleeve
- Nonflammable self-extinguishing Type A
- Conforms well to various profiles
- High flexibility
- Fray Resistant
- No skin irritation
- Excellent thermal protection
Typical Applications:
- Wire Harnesses
- Electrical Cables
- Sensor Wiring
- Control Cables
| Part Nbr. | Internal Nominal | Internal Nominal | Wall Thickness |

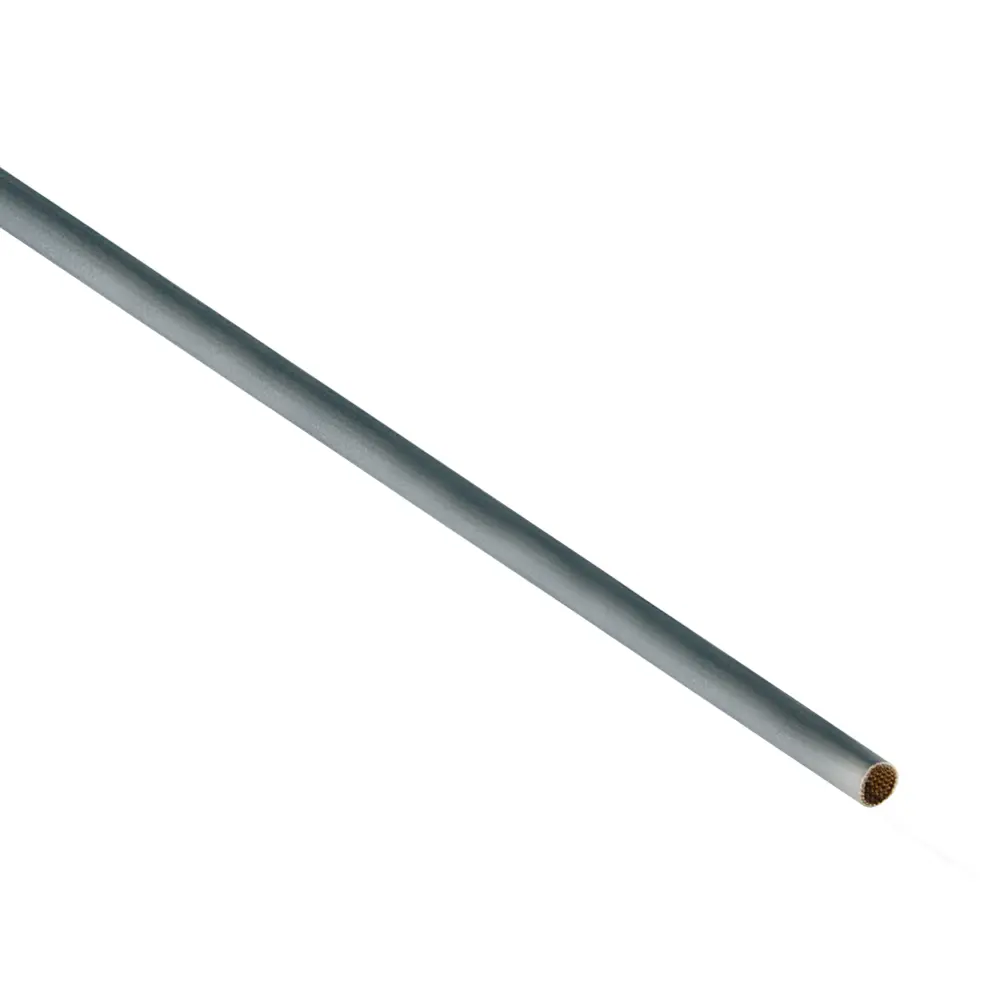

| TX-1202-5 | 1/4 | 5 | .55 |
| TX-1202-8 | 5/16 | 8 | .65 |

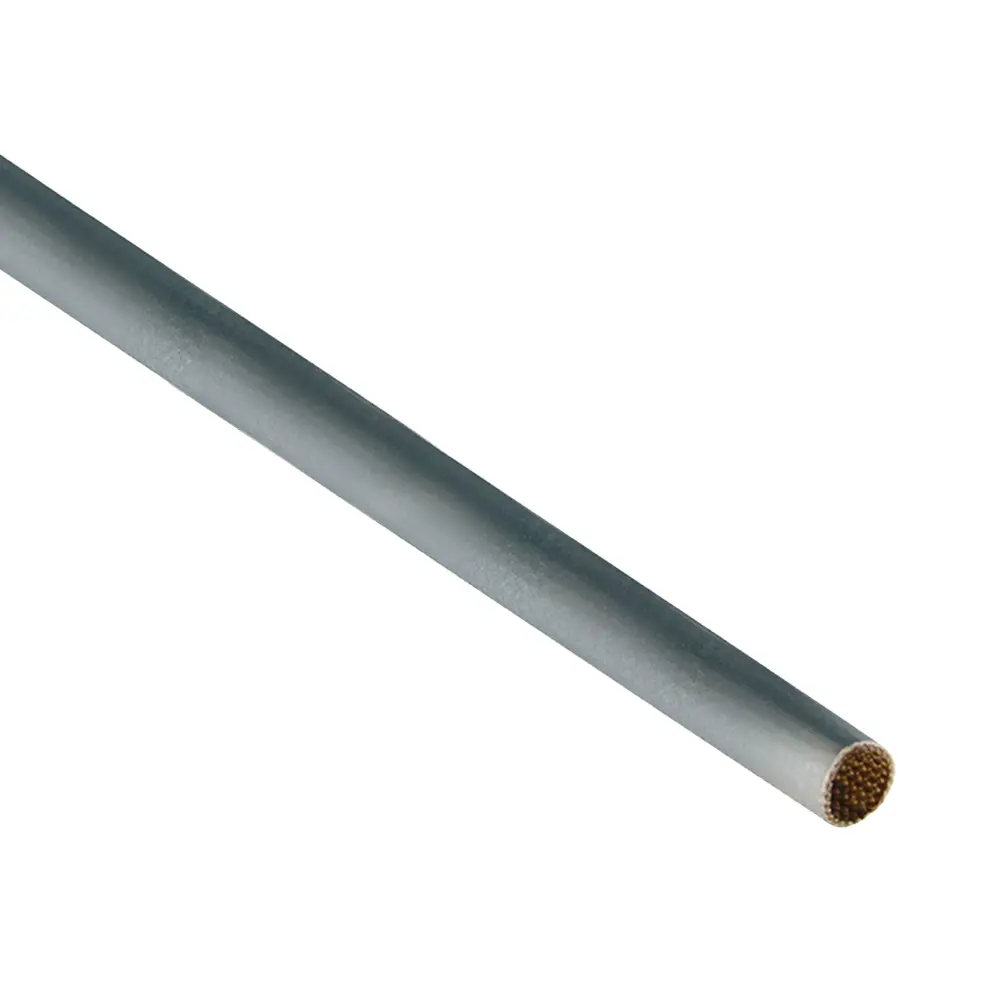

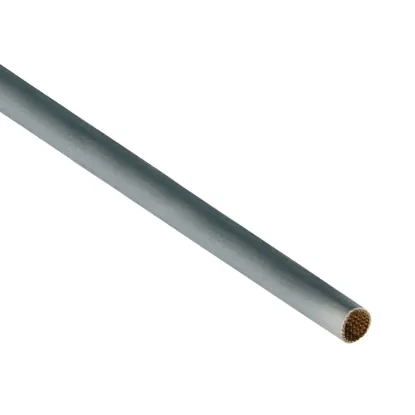

| TX-1202-10 | 3/8 | 10 | .75 |

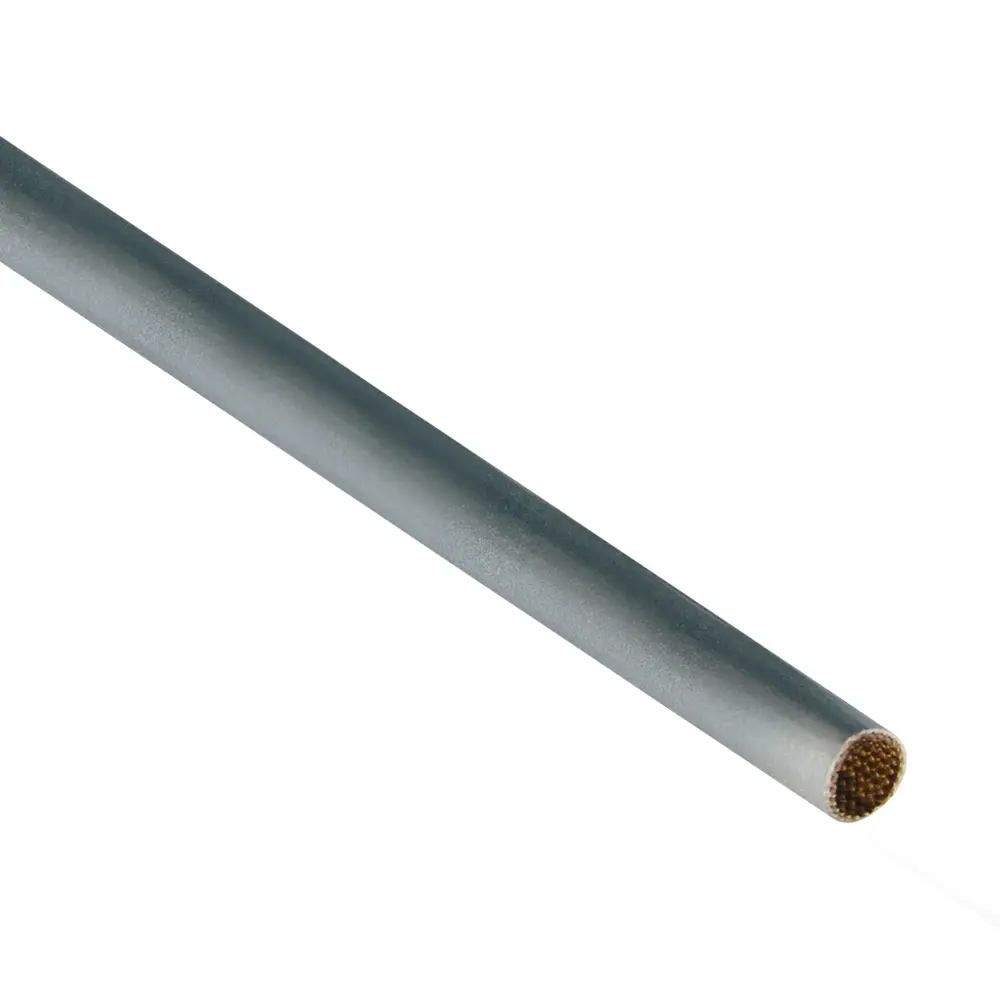

| TX-1202-12 | 1/2 | 12 | .75 |

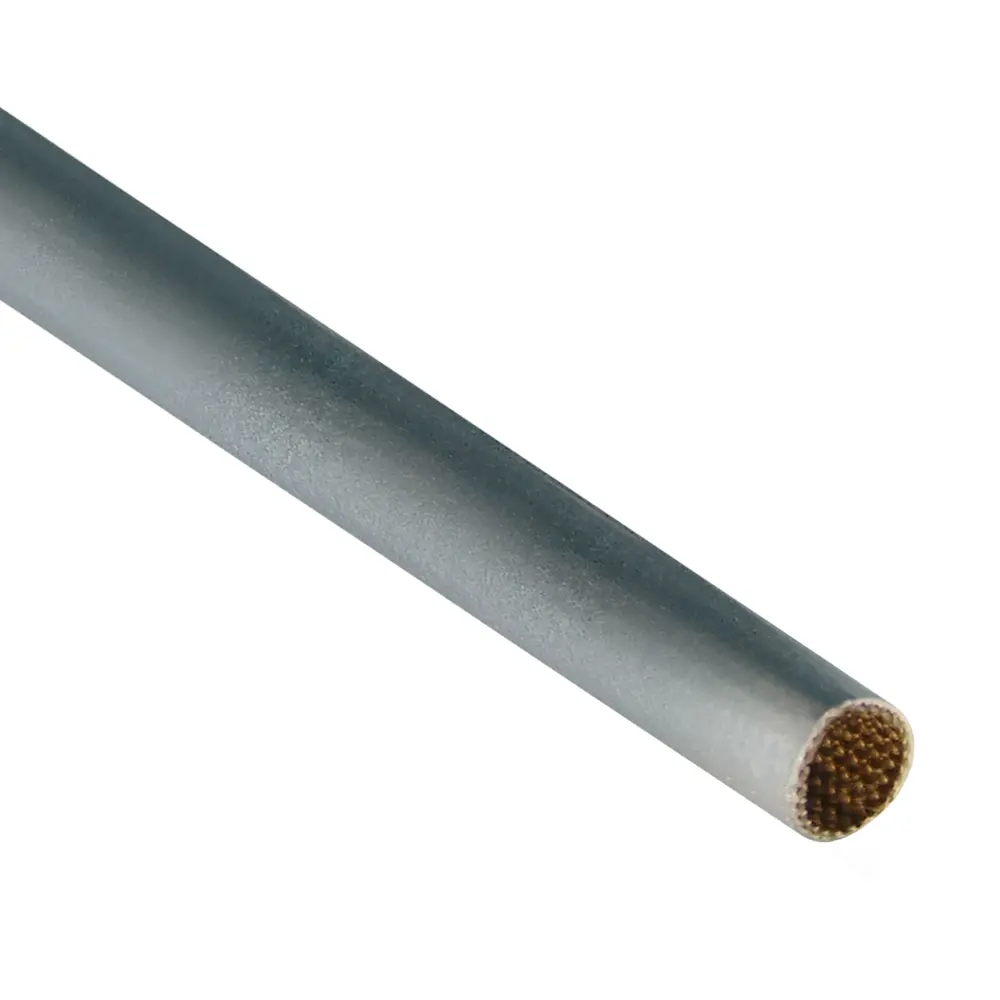

| TX-1202-15 | 5/8 | 15 | .75 |

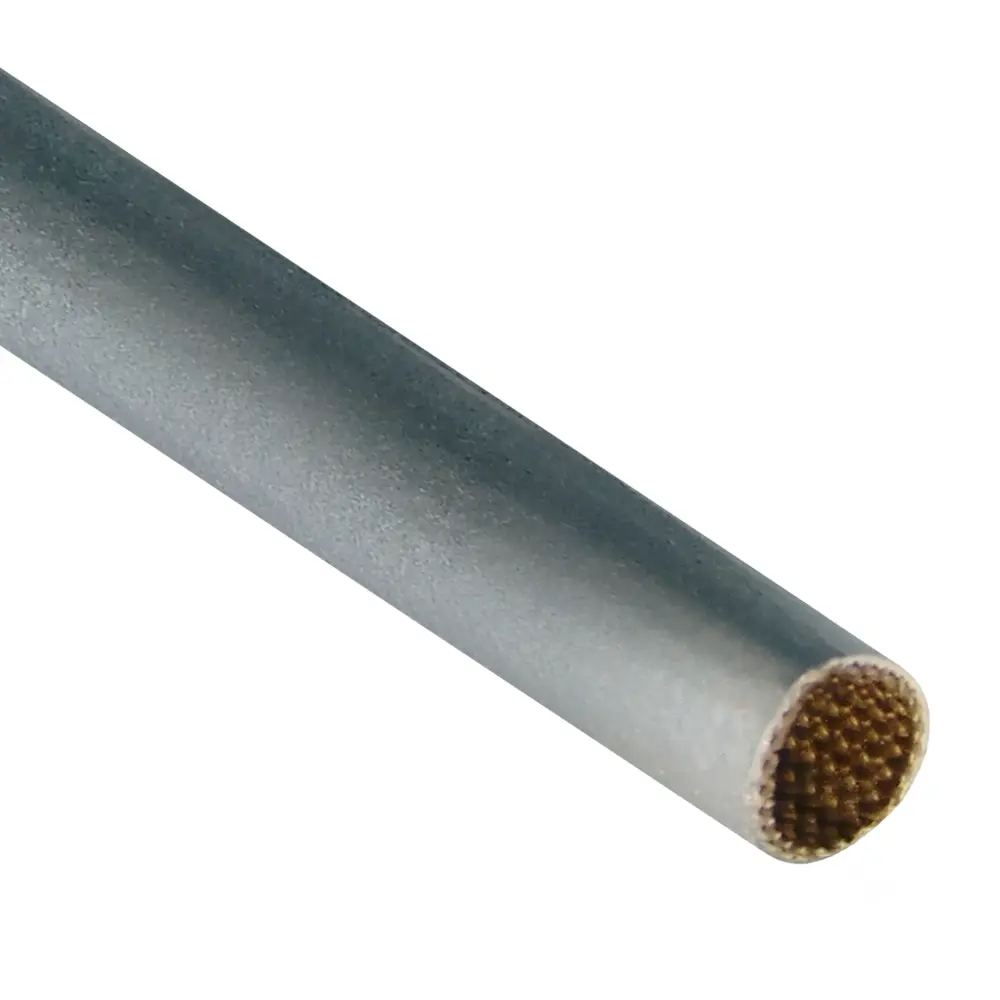

| TX-1202-20 | 3/4 | 20 | 1.5 |

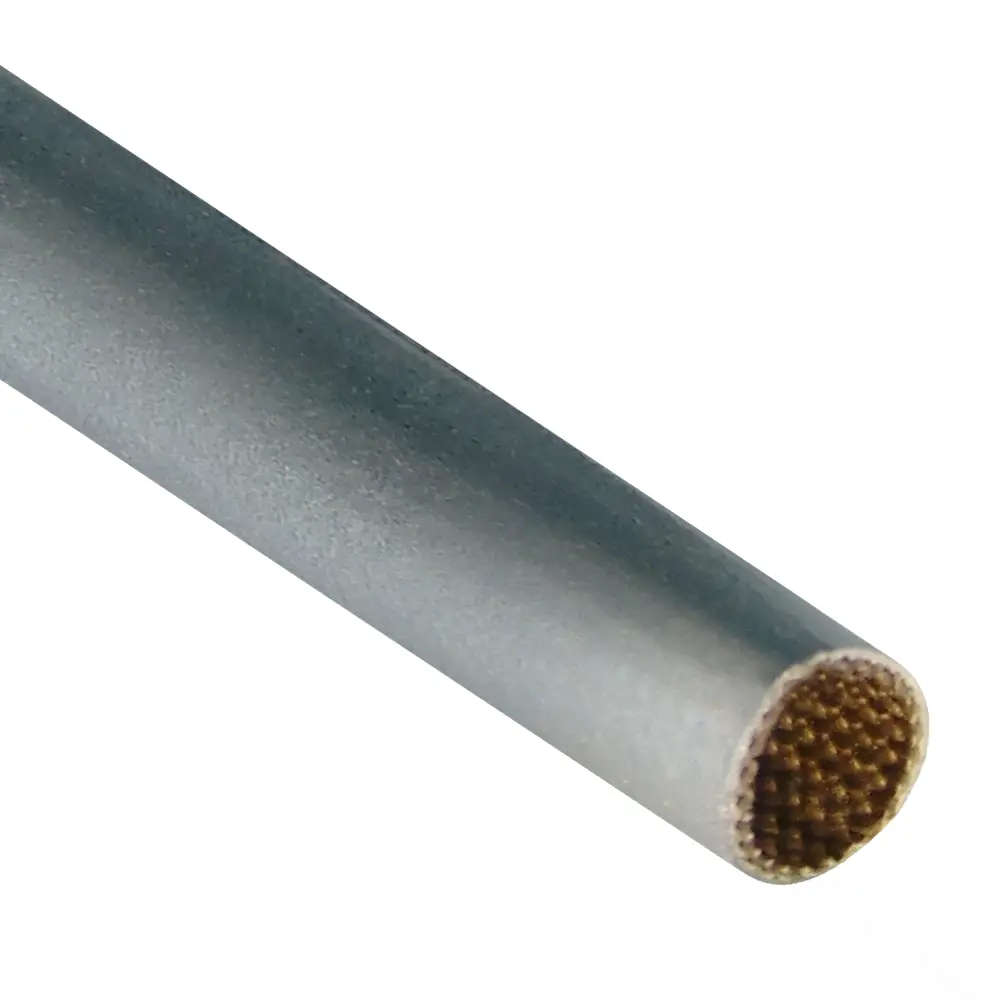

| TX-1202-22 | 7/8 | 22 | 1.5 |
