12 WAY MIL SPEC BUILD YOUR OWN KIT
Receptacle Type:
Flange/Pin
Flange/Socket
Jam Nut/Pin
Jam Nut/Socket
Plating:
Nickle
Black
Shrink Boots:
Yes
No
Shrink Boot Adapters:
Yes
No
12-way Mil-Spec connector kit comes complete with plug/receptacle connectors (with contacts), shrink boots, and shrink boot adapters.

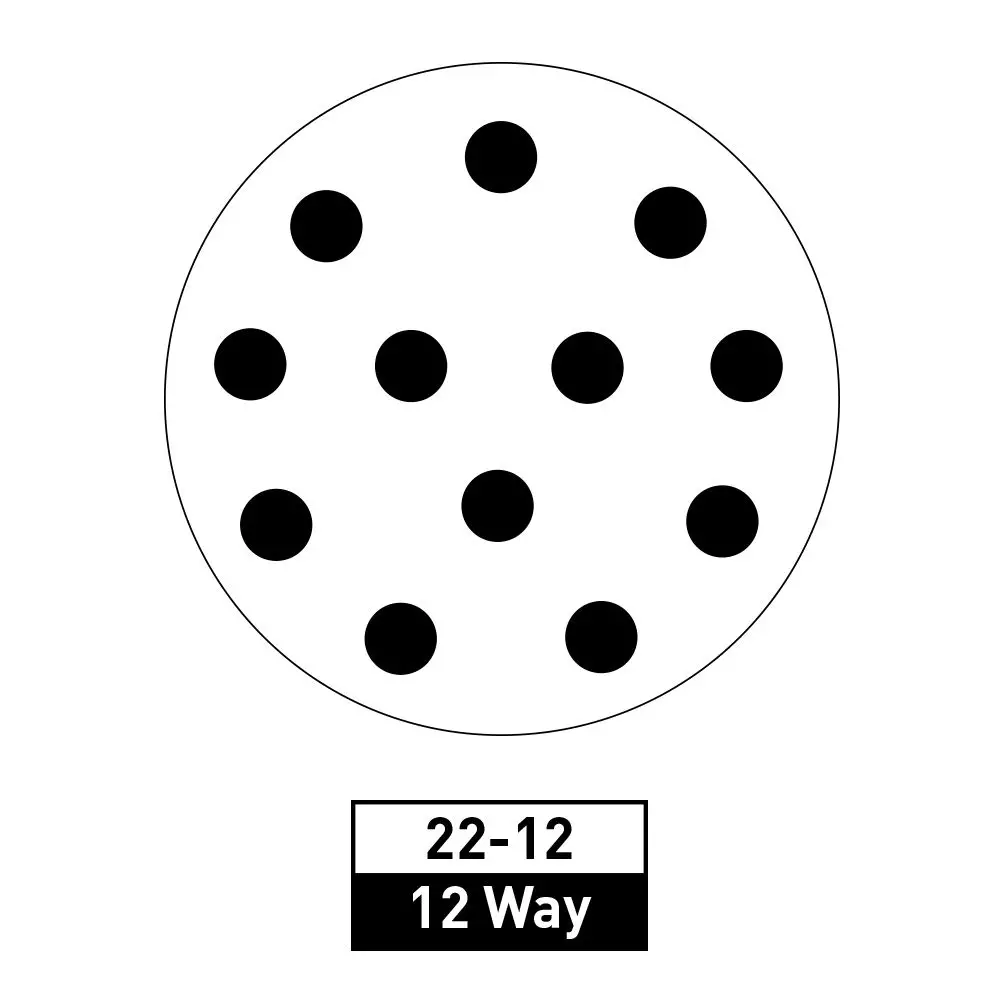

Connector Specifications 22-12:
| Contact Size | Qty | Wire Range | Amperage Per Contact |
| 12 | 12 | 14-12** | 25 |
| Panel Cutouts (Shell Size 22) | |||
| 4 Bolt Flange | 1.373" | Jam Nut | 1.436" |
| Crimp Tooling | |||
| Mil-Spec | M22520/1-01 (AF8) | Required Turret | M22520/1-02 (TH1A) |
| Deutsch OEM | HDT-48-00 | Econo Size 12 | 18860 |
| Insert/Removal Tools | |||
| Metal (Insert Only) | (Size 12) DAK82-12B | Metal (Removal Only) | (Size 12) DRK83-12B |
