39 WAY MIL SPEC COMPLETE KIT
Receptacle Type:
Flange/Pin
Flange/Socket
Jam Nut/Pin
Jam Nut/Socket
Plating:
Nickle
Black
Shrink Boots:
Yes
No
Shrink Boot Adapters:
Yes
No
39 way mixed arrangement Mil-Spec connector kit comes complete with plug/receptacle connectors (with contacts), shrink boots and shrink boot adapters.

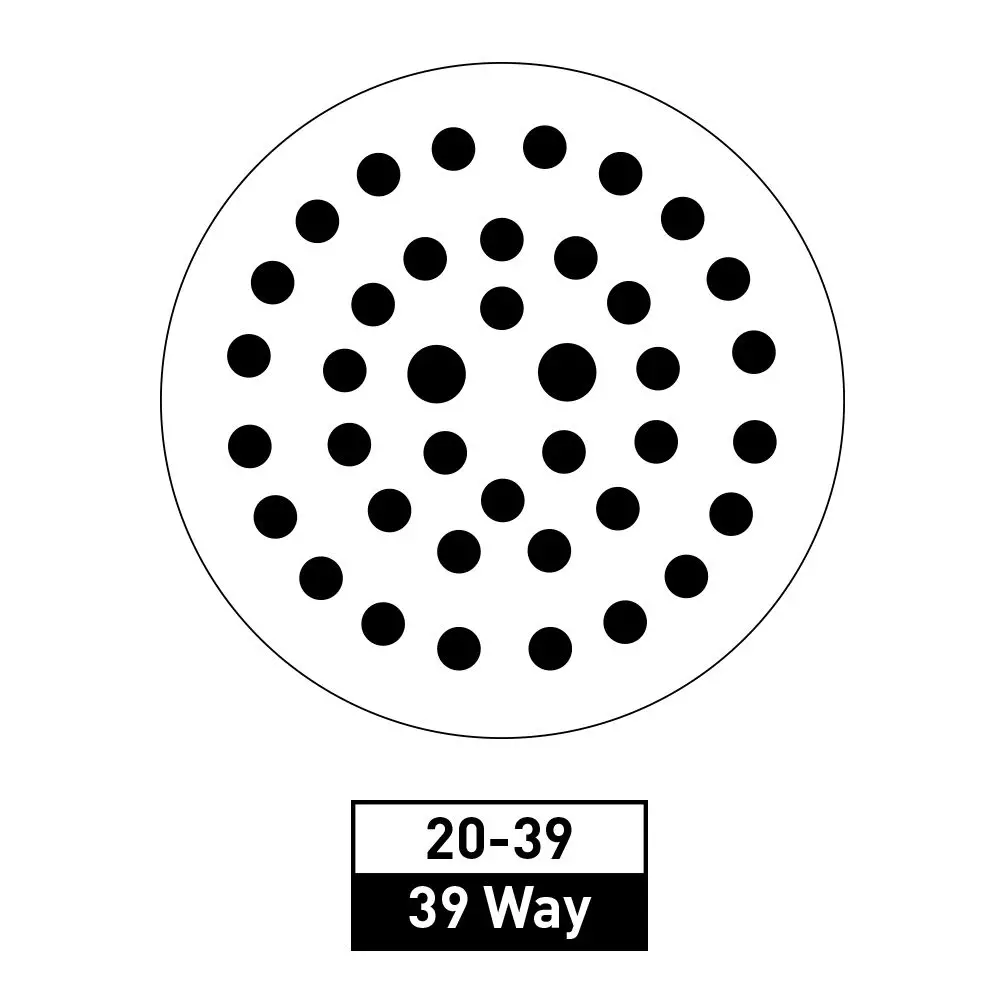

Connector Specifications 20-39:
| Contact Size | Qty | Wire Range | Amperage Per Contact |
| 20 | 37 | 22-18* | 7.5 |
| 16 | 2 | 20-16** | 13 |
| *16 Ga wire can used in this connector with a special size 20 contact (non Mil-Spec), see below for part numbers. These would be purchased separately, no substitutions allowed for the contacts that are already supplied in the kit. | |||
| **14 Ga wire can be used in the size 16 contacts if the wire if stripped perfectly | |||
| 16 Ga Size 20 Contacts | |||
| Gold Socket | 0462-005-2031 | Gold Pin | 0460-010-2031 |
| Nickle Socket | 0462-005-20141 | Nickle Pin | 0460-010-20141 |
| Panel Cutouts (Shell Size 20) | |||
| 4 Bolt Flange | 1.248" | Jam Nut | 1.311" |
| Crimp Tooling | |||
| Mil-Spec | M22520/1-01 (AF8) | Required Turret | M22520/1-02 (TH1A) |
| Deutsch OEM | HDT-48-00 | Econo Size 20 | 18890 |
| Econo Size 16 | 18880 | ||
| Insert/Removal Tools | |||
| Metal (Insert Only) | (Size 20) DAK83-20B | Metal (Removal Only) | (Size 20) DRK83-20B |
| Metal (Insert Only) | (Size 16) DAK82-16B | Metal (Removal Only) | (Size 16) DRK83-16B |
