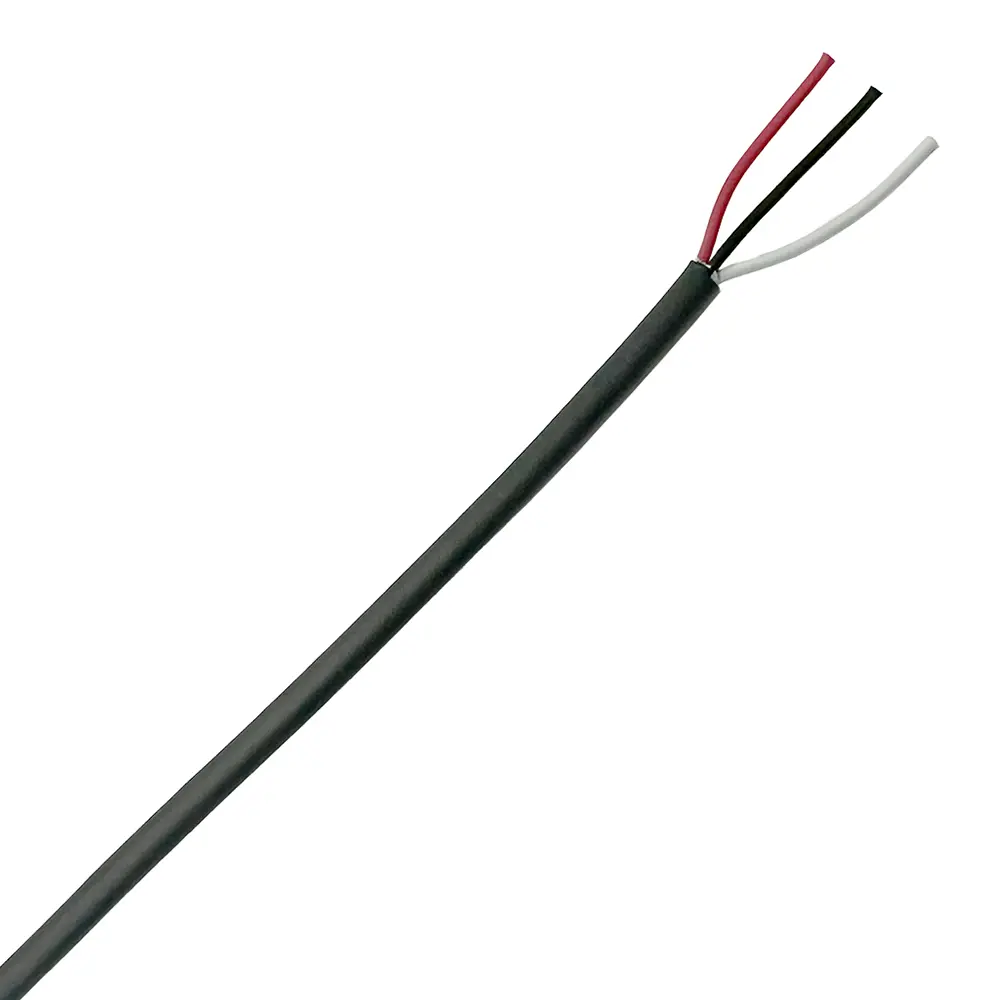

TXL-20X3 TXL 20 AWG X 3 Conductor Cable

PROWIREUSA
Item No. TXL-20X3
$1.003 / FT
Features & details

3-conductor 20 AWG TXL jacketed cable.

  • PVC Jacket: 30ºC - 105ºC
  • Stranded bare copper conductors with XLPE insulation
  • Rated 600VDC
  • 221°F (105°C) to -86°F (-30°C)
  • Conductor Color: Black, red, white
  • Approximate Weight: 44 lbs. per 1000'
  • Typical Stranding: 19/30
  • Nominal O.D.: 0.200" (5.08 mm)
  • Layup: Fibrillated Polypropylene Filler in Each Interstice
  • Layup: O/A Mylar Tape + 0.024” Wall
  • Jacket: black flexible PVC, oil, moisture UV resistant, VW-1
  • Jacket Thickness: 0.016"
Product specification
Conductor Stranded
