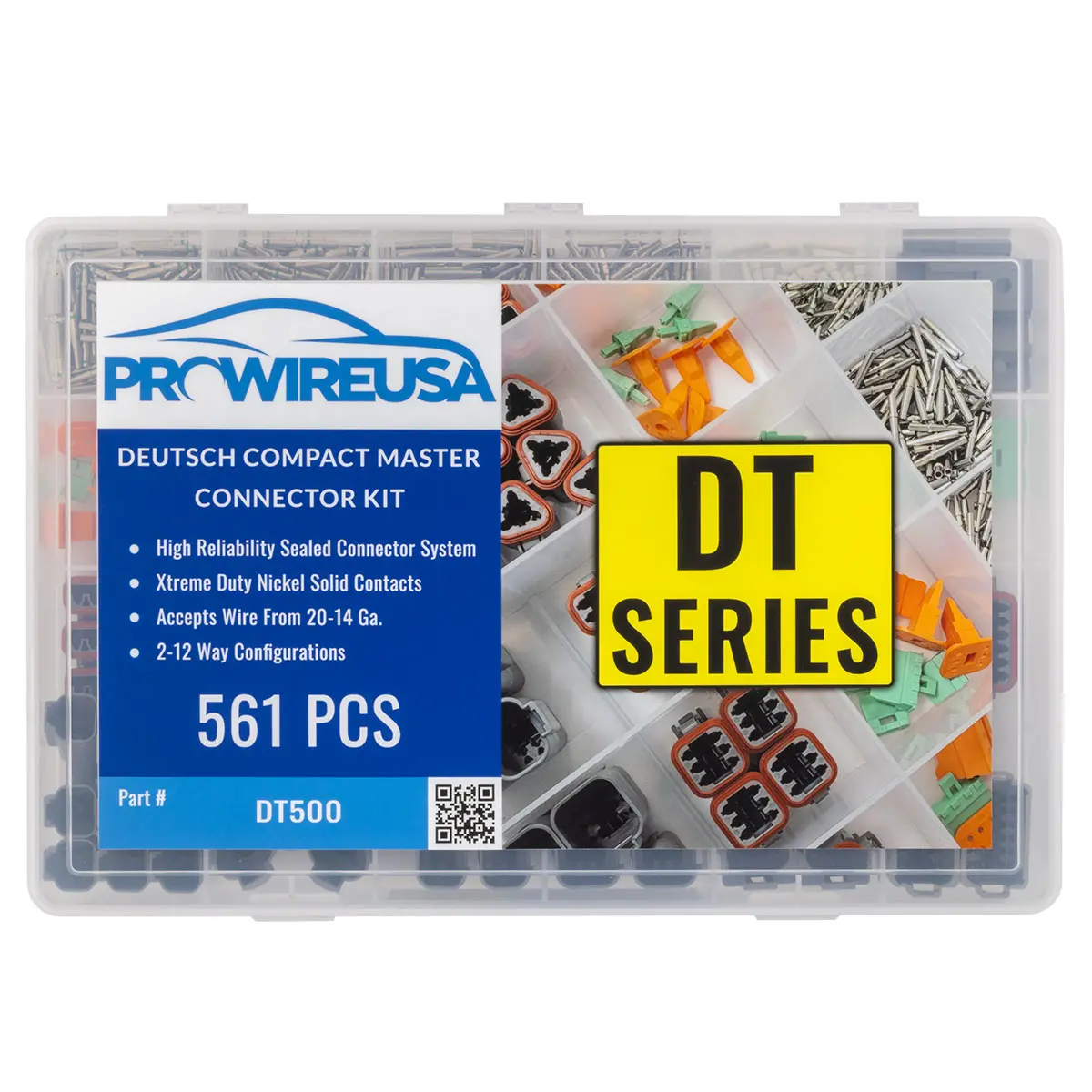

DT500 Deutsch DT Series MINI Master Kit

Name: DEUTSCH DT MINI MASTER KIT
SKU: DT500
Price: 246.42 USD
Availability: InStock

Item No. DT500

$246.421 / EA

What's in this kit

Some items in this kit may not be listed below, as they may not be available for purchase separately.

Part	In kit	Price
W4P W4P 4,103 in stock	×4	$0.25
W2P W2P 9,076 in stock	×9	$0.076
W6P W6P 1,837 in stock	×4	$0.111
DT04-6P REC, 6P, GRY, N 2,214 in stock	×4	$1.355
DT06-6S DT06-6S 681 in stock	×4	$1.978
0462-201-16141 SOC, SOLID, SIZE 16, 16-20 AWG, NI Out of stock	×100	$0.479
W4S W4S 4,231 in stock	×4	$0.177
0462-209-16141 SOC, SOLID, SIZE 16, 14 AWG, NI 10,924 in stock	×100	$0.677
0460-215-16141 PIN, SOLID, SIZE 16, 14AWG, NI 10,510 in stock	×100	$0.435
W3S W3S 15,254 in stock	×5	$0.101
DT04-08PA DT 8 WAY RECEPTACLE 317 in stock	×2	$2.448
DT06-3S DT06-3S Out of stock	×5	$0.827
0460-202-16141 PIN, SOLID, SIZE 16, 16-20AWG, NI 38,246 in stock	×100	$0.313
DT04-12PA DT 12 WAY RECEPTACLE 544 in stock	×2	$3.876
DT04-4P REC, 4P, GRY, N 1,216 in stock	×4	$0.973
DT06-4S DT06-4S 6,191 in stock	×4	$1.268
DT04-2P REC, 2P, GRY, N 9,101 in stock	×9	$0.689
DT06-2S PLG, 2P, GRY, N 6,760 in stock	×9	$0.747
W2S W2S 1,646 in stock	×9	$0.116
1011-027-0805 CLIP, PA66, GRY, 508MM HOLE, ST, DT 8PIN ONLY 205 in stock	×2	$1.276
1011-026-0205 CLIP, PA66, GRY, 508MM HOLE, ST 2,363 in stock	×5	$0.54
114017 DT/DTP SIZE 16/12 CAVITY SEALING PLUG 8,359 in stock	×50	$0.049
DT-RT1 DT DTM DTP WEDGELOCK REMOVAL TOOL 20 in stock	×1	$23.60
W8P W8P 2,310 in stock	×2	$0.147
W8S W8S 350 in stock	×2	$0.139
W12S W12S 3,951 in stock	×2	$0.253
W12P W12P 957 in stock	×2	$0.279
DT06-12SA DT06-12SA 1,119 in stock	×2	$3.825
DT04-3P REC, 3P, GRY, N 546 in stock	×5	$0.771
W3P W3P 2,758 in stock	×5	$0.063
W6S W6S 6,178 in stock	×4	$0.139
DT06-08SA DT06-08SA 895 in stock	×2	$3.096

Scroll the list to see all 32 parts

Features & details

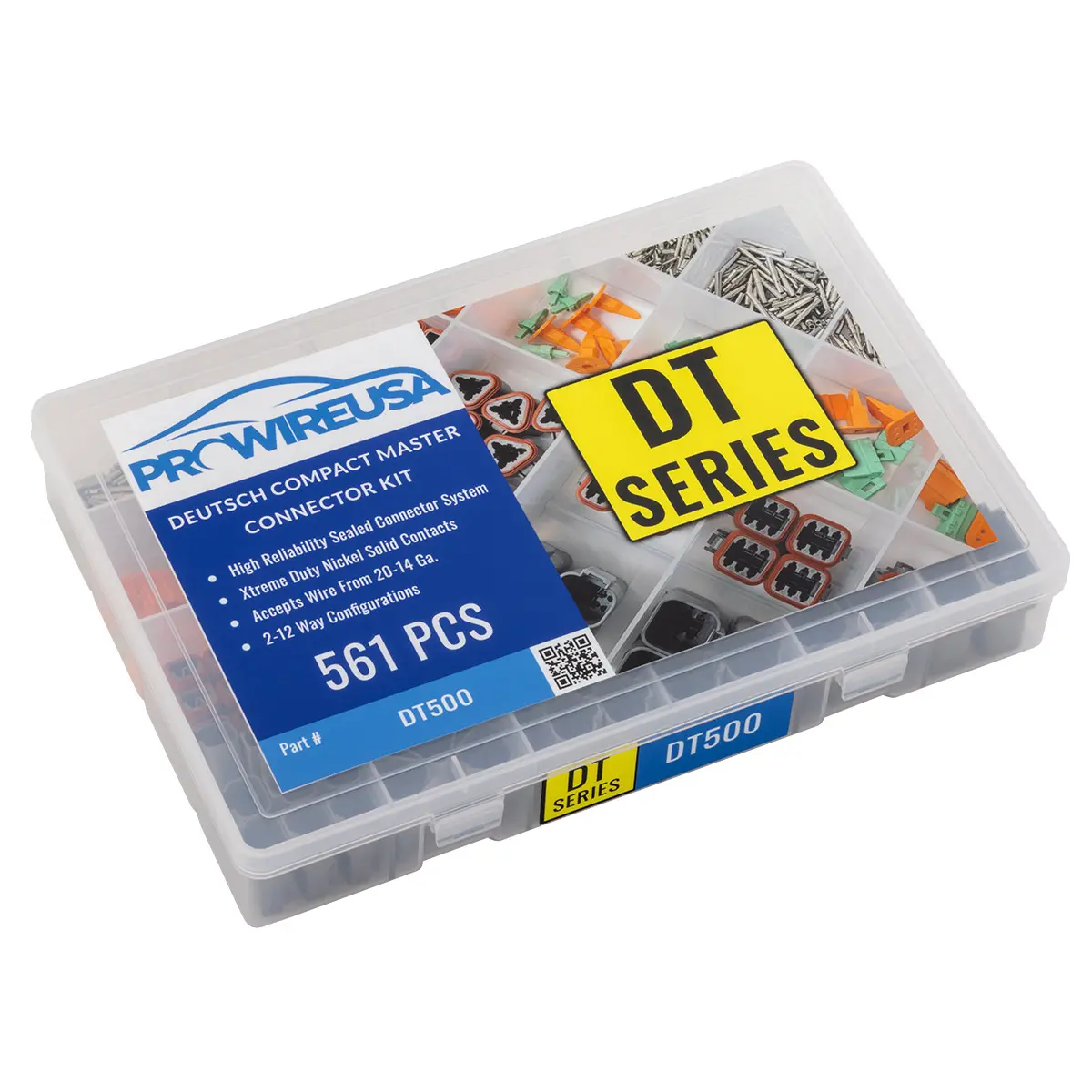

We are proud to offer our MINI Master DT series kits. These connector kits are built with genuine TE/Deutsch components and come in a sturdy plastic box. This mini DT series kit is a miniature version of our Monster Master Kit-1 with over 500 pieces. Add a crimper, and you are good to go. See the tooling section below for crimp tool recommendations.

Box dimensions: 13-1/8 x 9 x 2-5/16

DT series connectors and contacts are compatible with size 16 contacts and tooling and are not cross-compatible with either DTM or DTP series connectors. The size 16 contact is rated for 13 amps continuous.

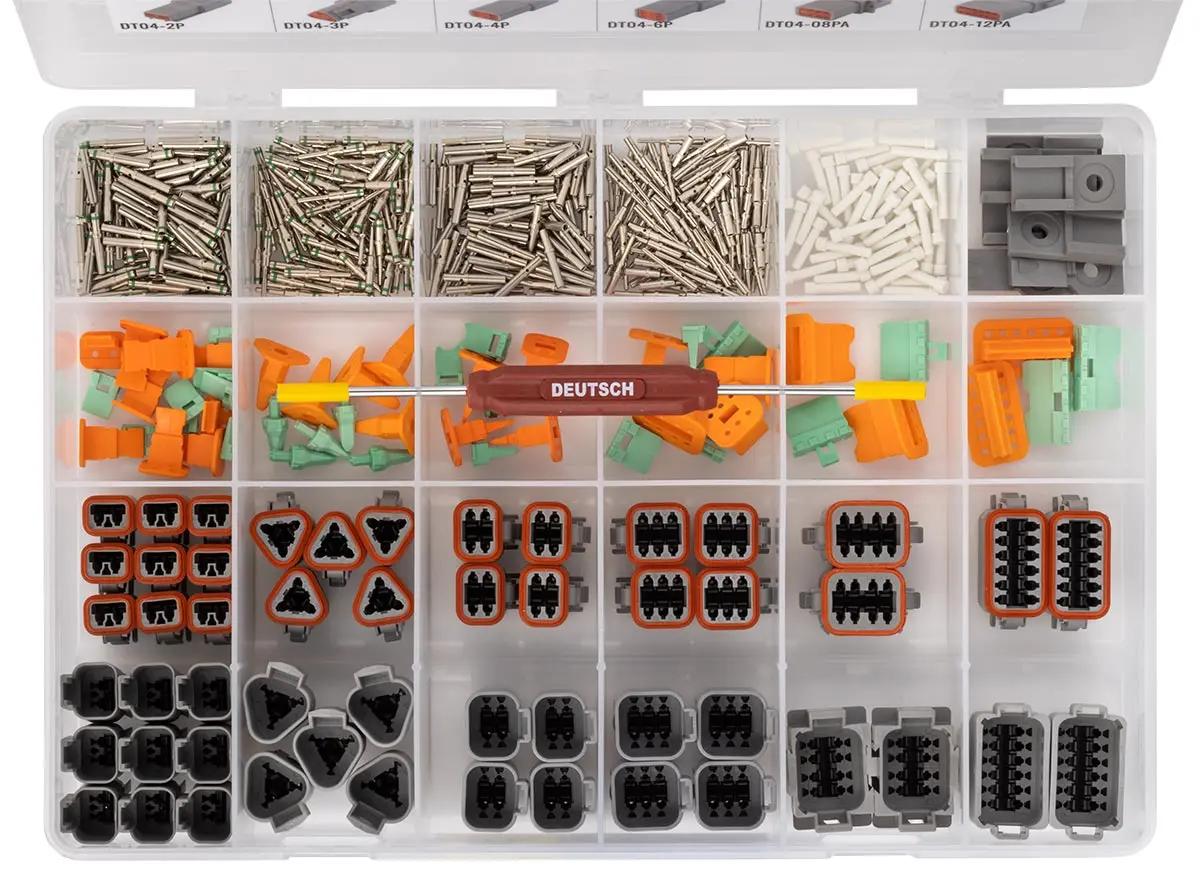

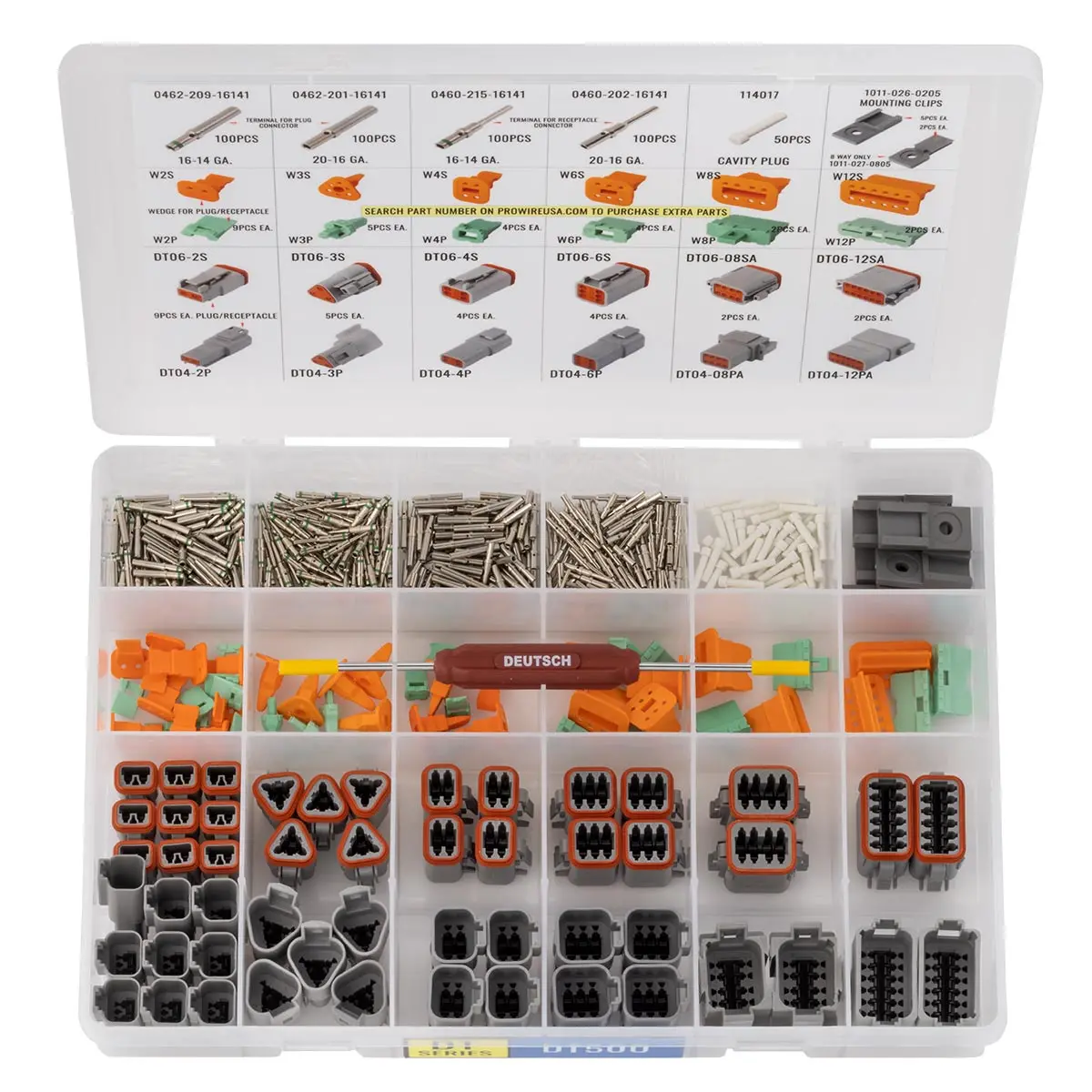

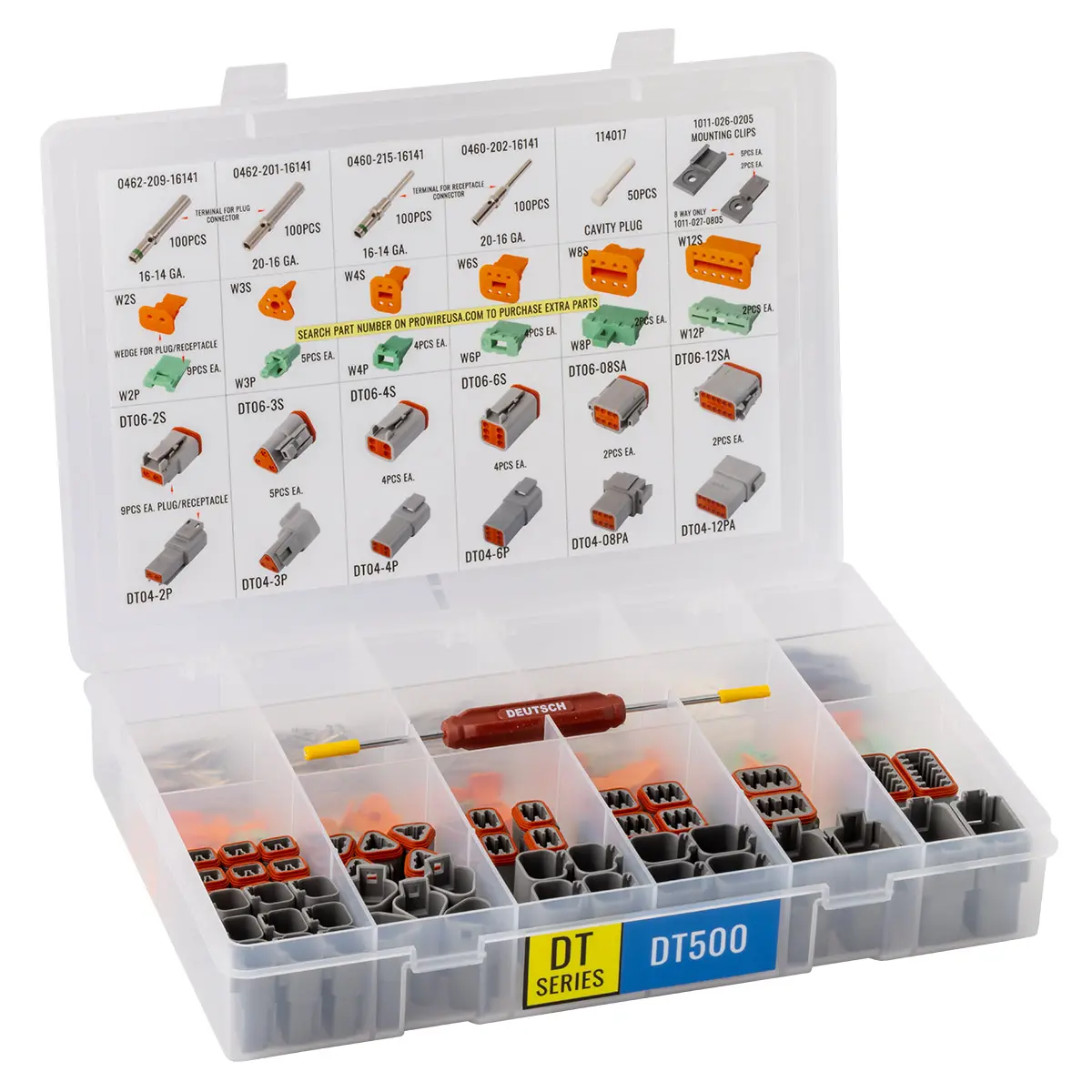

What's in the Kit?

(9) 2-way kits with corresponding wedgelocks
(5) 3-way kits with corresponding wedgelocks
(4) 4-way kits with corresponding wedgelocks
(4) 6-way kits with corresponding wedgelocks
(2) 8-way kits with corresponding wedgelocks
(2) 12-way kits with corresponding wedgelocks
(100) 0462-201-16141 contacts 20-16 ga
(100) 0460-202-16141 contacts 20-16 ga
(100) 0462-209-16141 contacts 16-14 ga
(100) 0460-215-16141 contacts 16-14 ga
(50) 114017 cavity plugs
(5) 1011-026-0205 mounting brackets (2,3,4,6,12 Way)
(2) 1011-027-0208 mounting brackets (8 Way only)
(1) DT-RT1 wedgelock removal tool

Price $246.421 / EA
