Deutsch AS Autosport Series
Deutsch Autosport AS series the original motorsport connector, offers space and weight savings when compared to standard Mil-Spec connectors. The AS Series offers a wide range of arrangements up to 128 in 5 different keyways.
Specifications:
- No. Of Positions: 3-128
- Shell Size: 07-24
- Contact Size: 22 (5 Amp), 20 (7.5 Amp),16 (20 Amp)
- Wire Range: 26-16 Ga.
- Built In Shrink Boot Lip
- Conductive Black Finish
Housing Types:
- Plug AS6: Male connector available in either pin or socket. Mates to AS1 or AS0

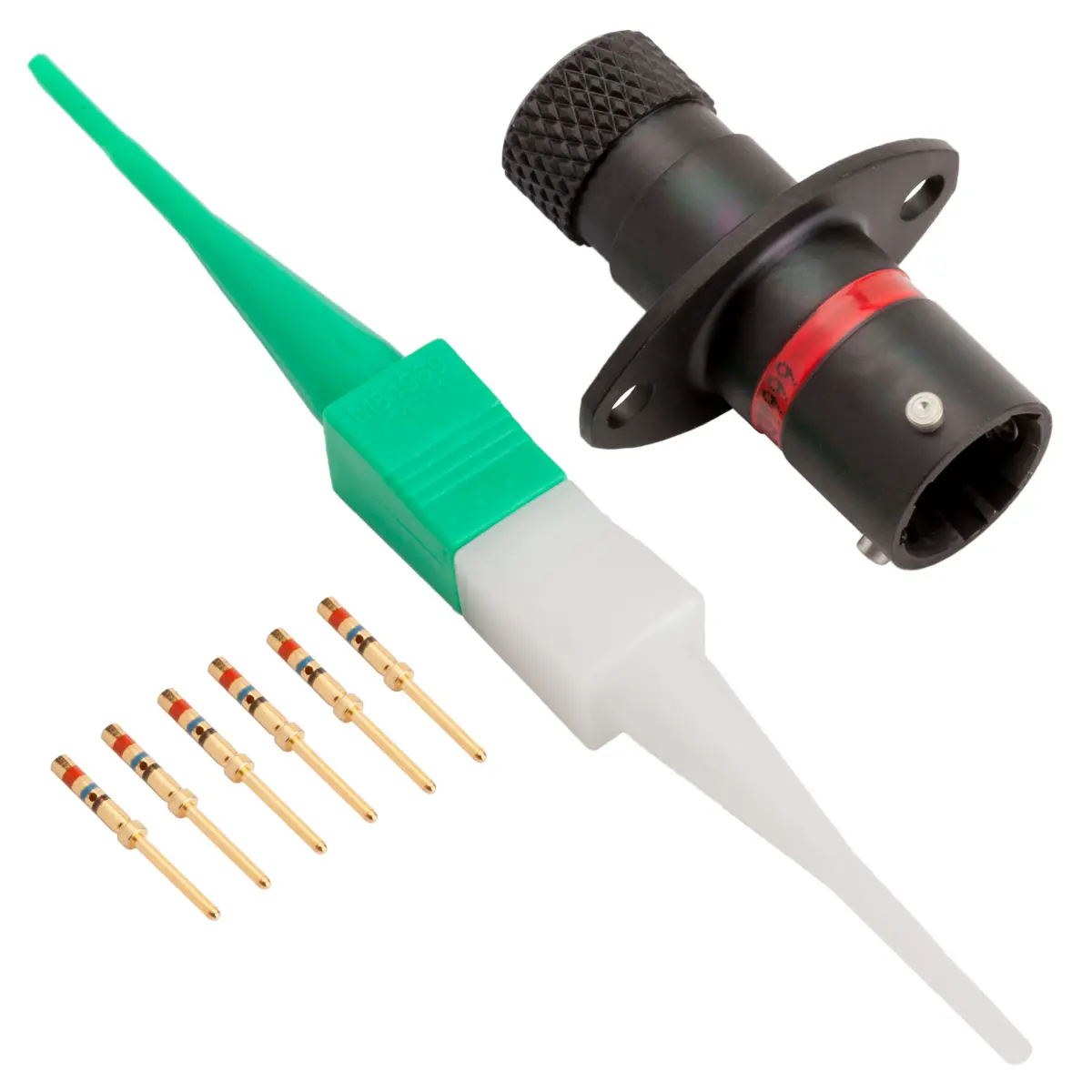

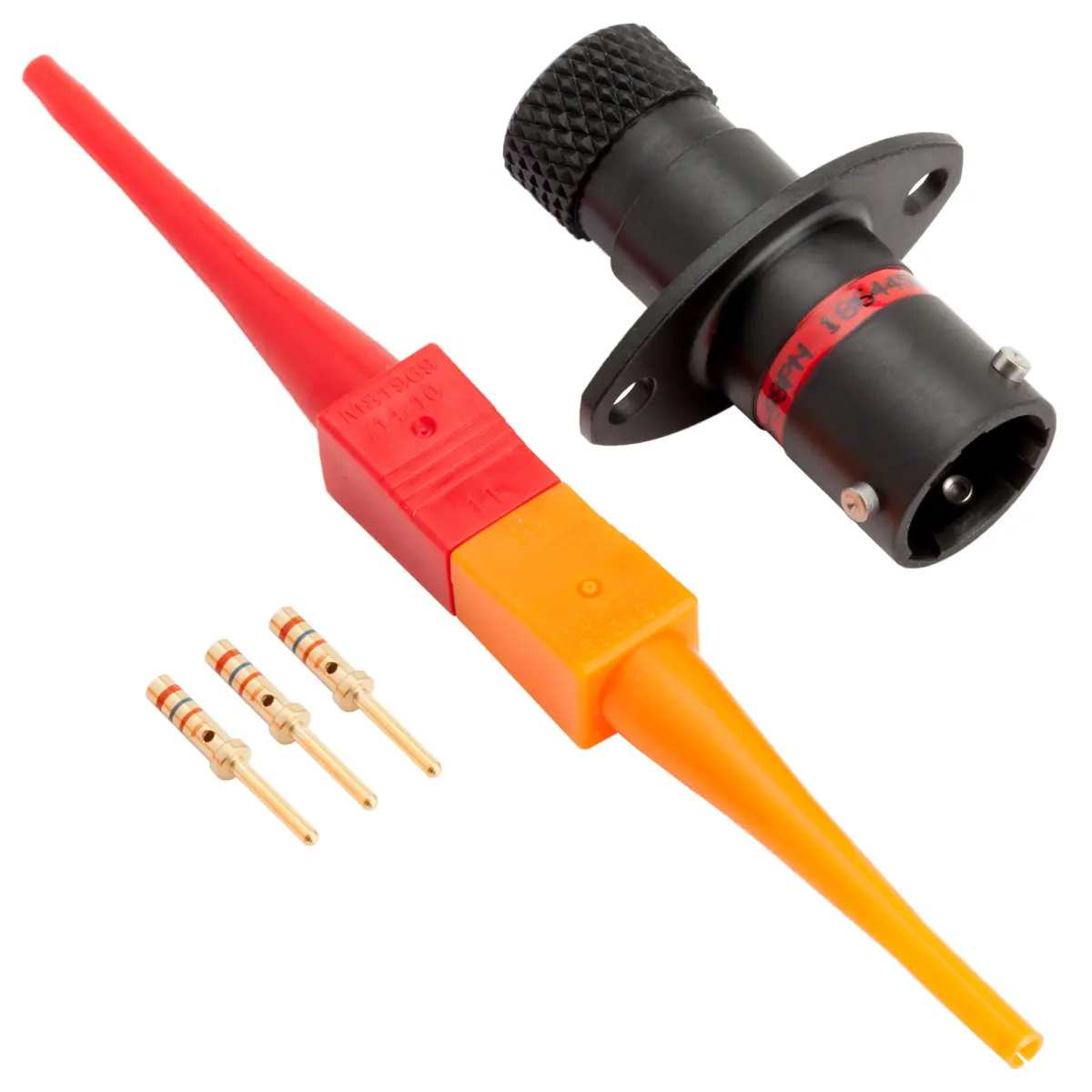

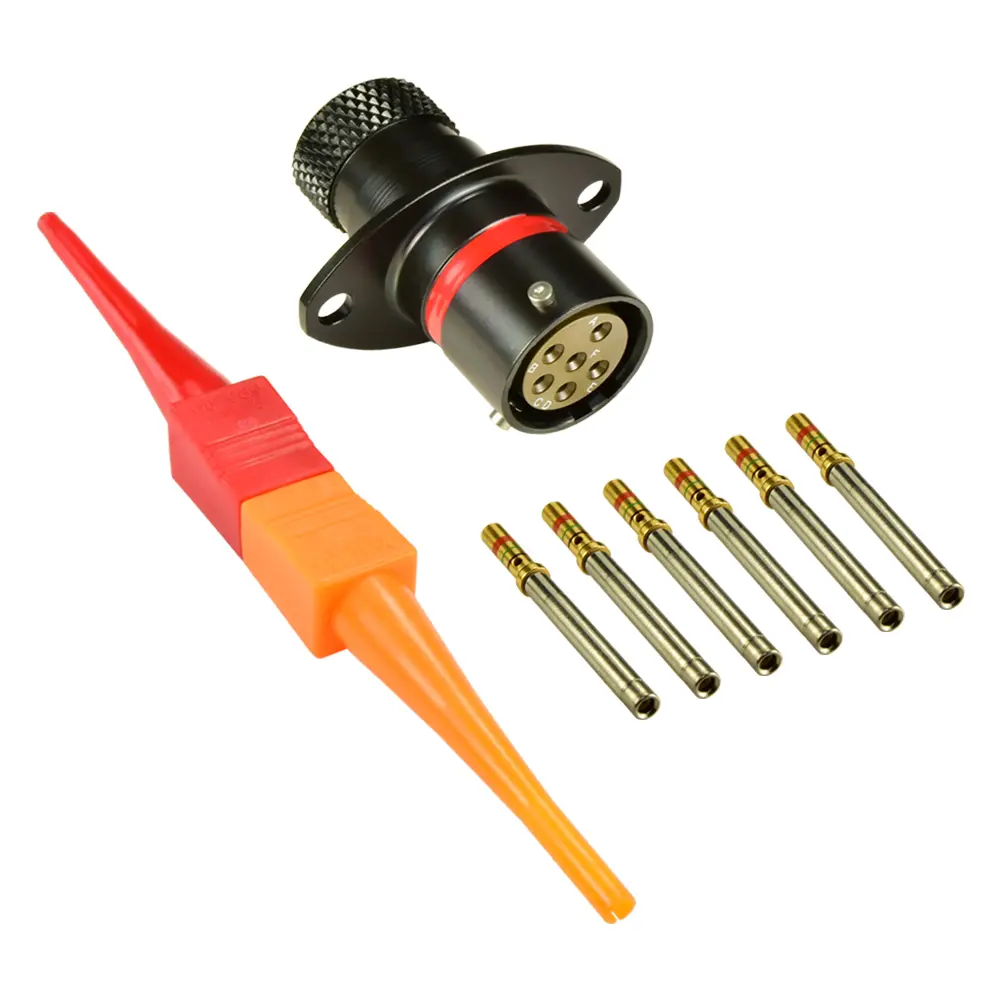

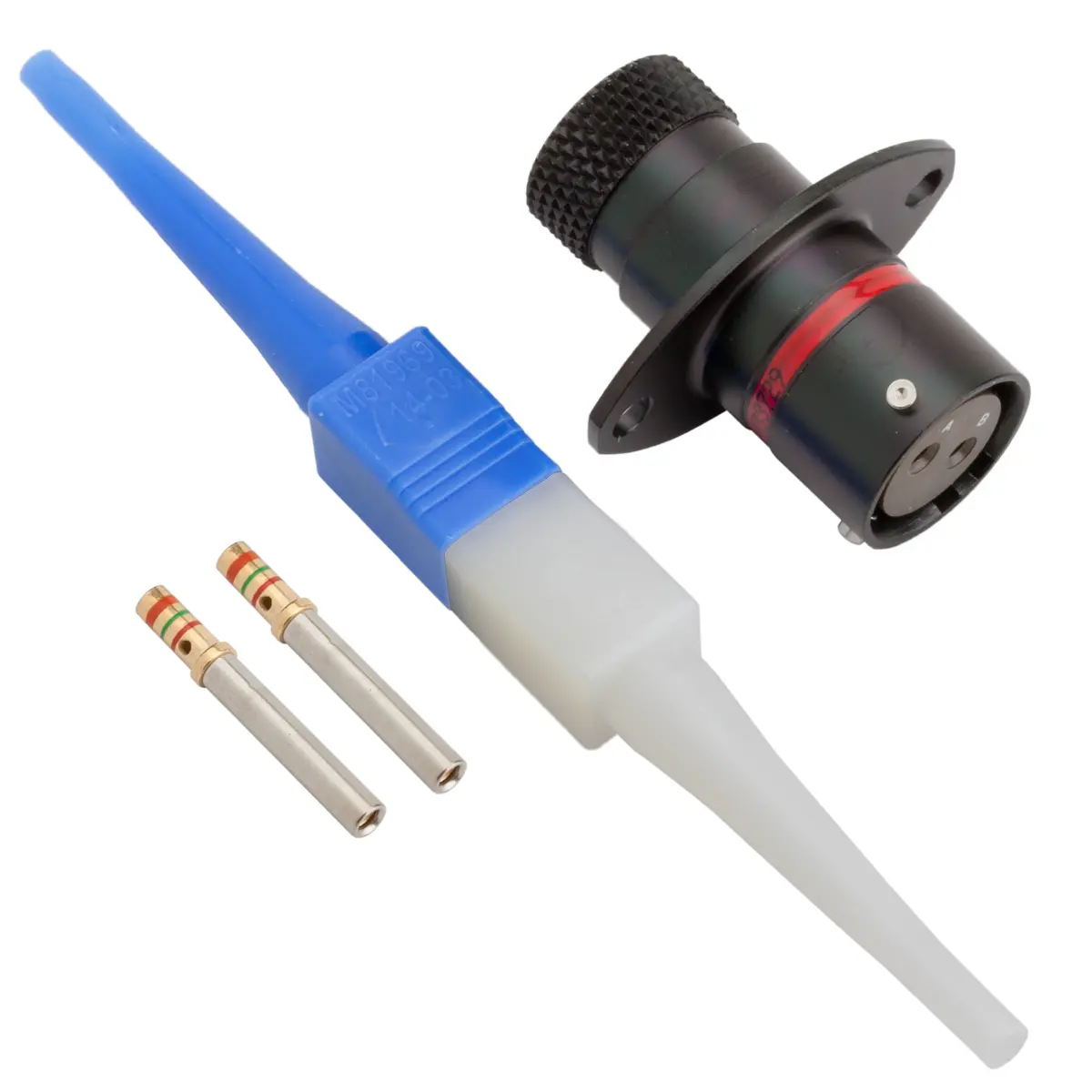

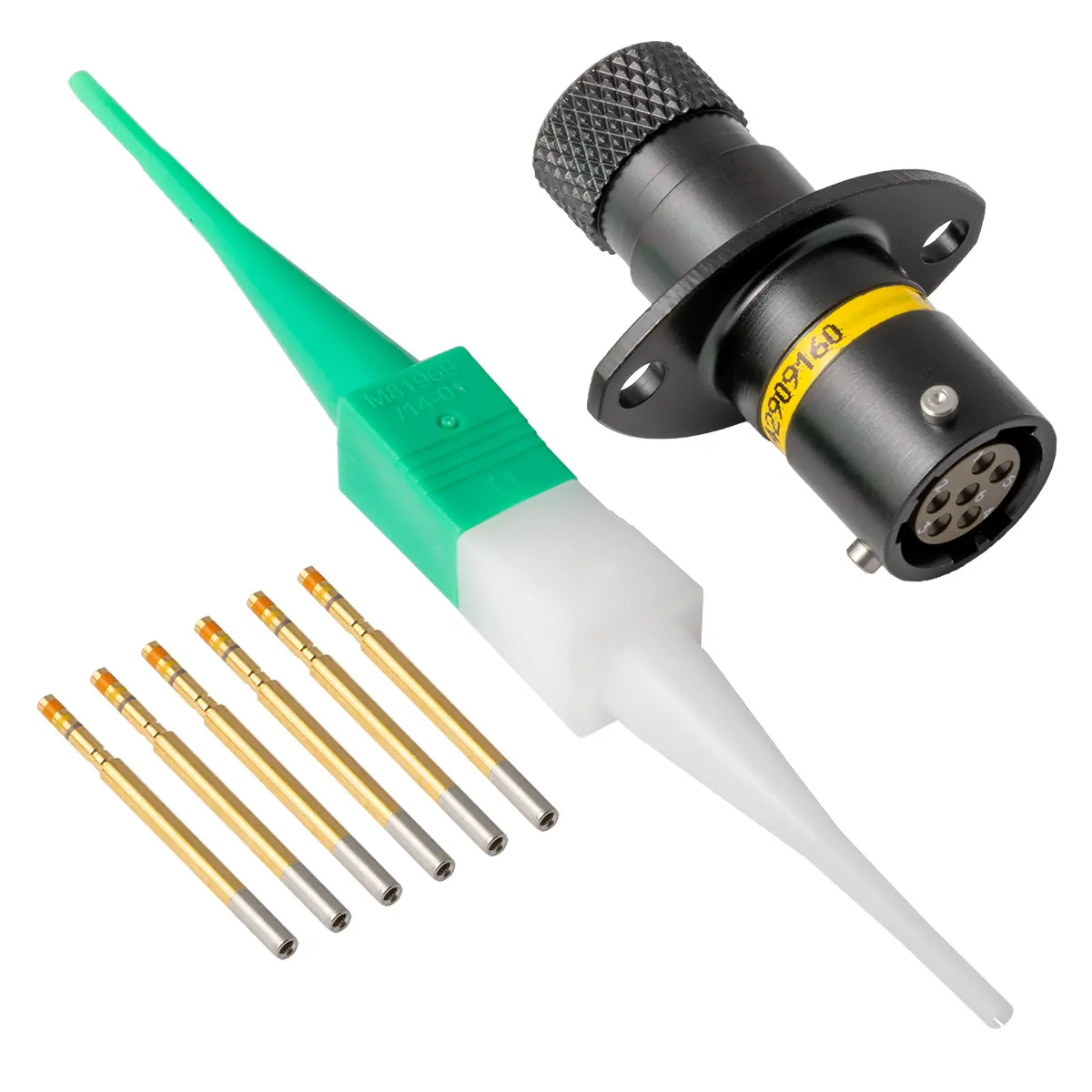

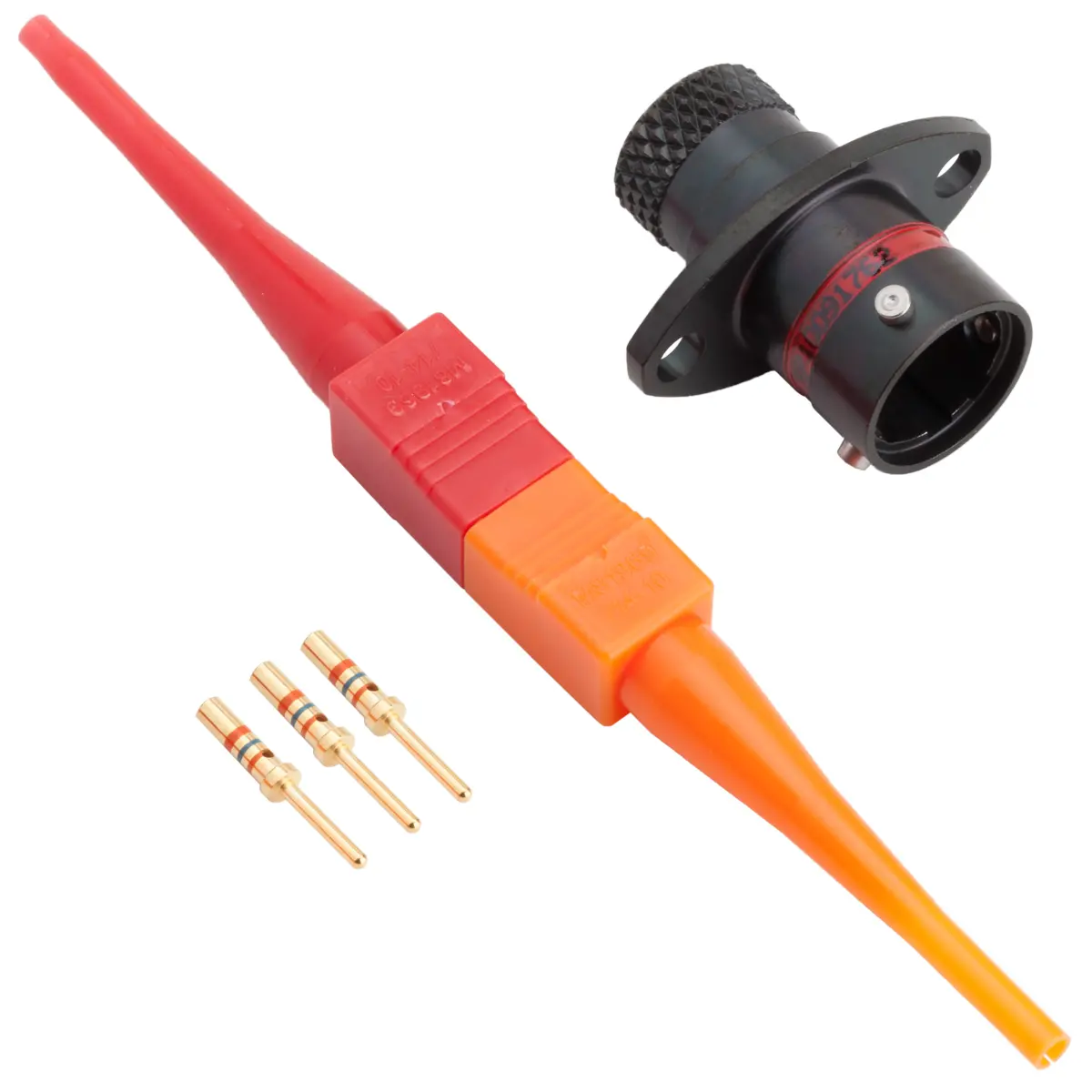

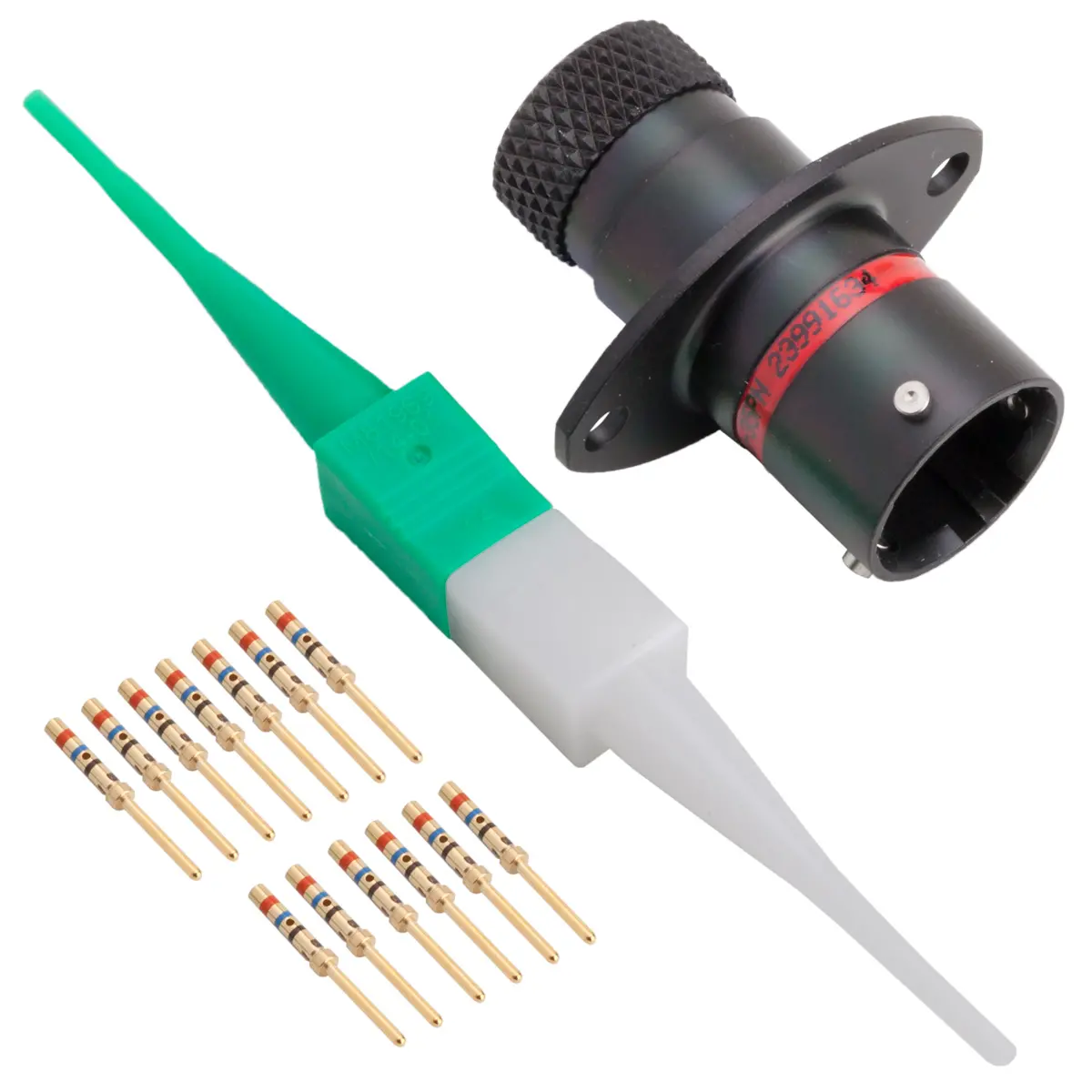

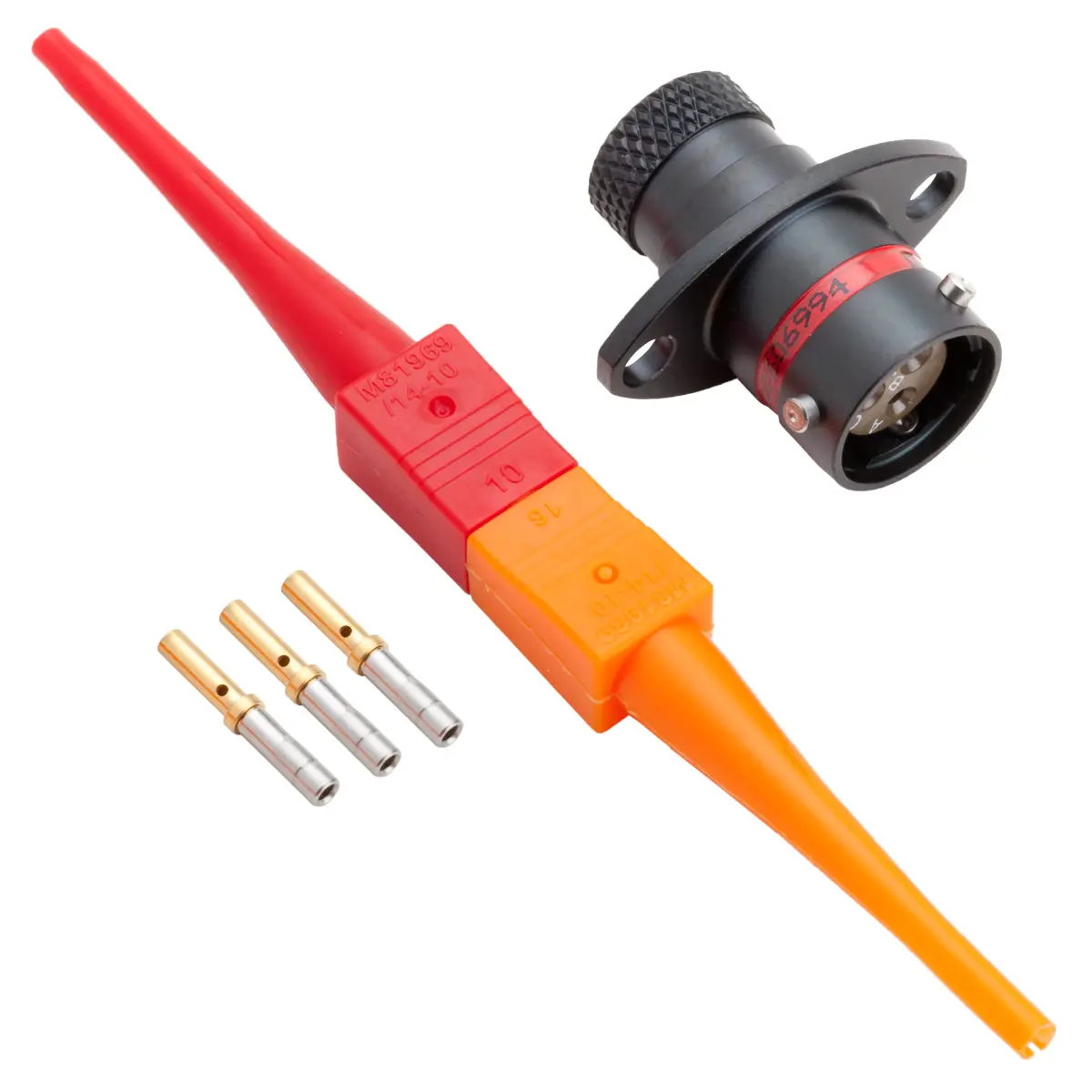

- Flange Receptacle AS0: Female 2 bolt flanged receptacle available in either pin or socket. Mates to AS6
- Inline Receptacle AS1: Female inline receptacle available in either pin or socket. Mates to AS6
Keyway Colors:
- N = Red
- A = Yellow
- B = Blue
- C = Orange
- D = Green
- U = Violet (Universal for test harnesses)
Shrink Boot Options:
| Shell | Straight Boot | 90 Degree Boot |
| 7 | 202K121 | 222K121 |
| 8 | 202K121 | 222K121 |
| 10 | 202K132 | 202K121 |
| 12 | 202K142 | 202K132 |
| 14 | 202K142 | 202K142 |
| 16 | 202K153 | 222K152 |
| 18 | 202K153 | 222K152 |
| 20 | 202K163 | 222K163 |
| 22 | 202K163 | 222K163 |
| 24 | 202K163 | 222K163 |
| 24 | 202K174 | 222K174 |
| Shell | Nut Plate | Gasket |
| 7 | AS-7 | GV-7 |
| 8 | AS-8 | GV-8 |
| 10 | AS-10 | GV-10 |
| 12 | AS-12 | GV-12 |
| 14 | AS-14 | GV-14 |
| 16 | AS-16 | GV-16 |
| 18 | AS-18 | GV-18 |
| 20 | AS-20 | GV-20 |
| 22 | AS-22 | GV-22 |
| 24 | AS-24 | GV-24 |
Filters
Filters
$25.000 / EA
AS,5 WAY,PCB,SKT,N KEY,REDTE/ Connectivity
Item No. ASU203-05SN-HE-957J
96 EA In Stock
Limited to stock on hand
$30.000 / EA

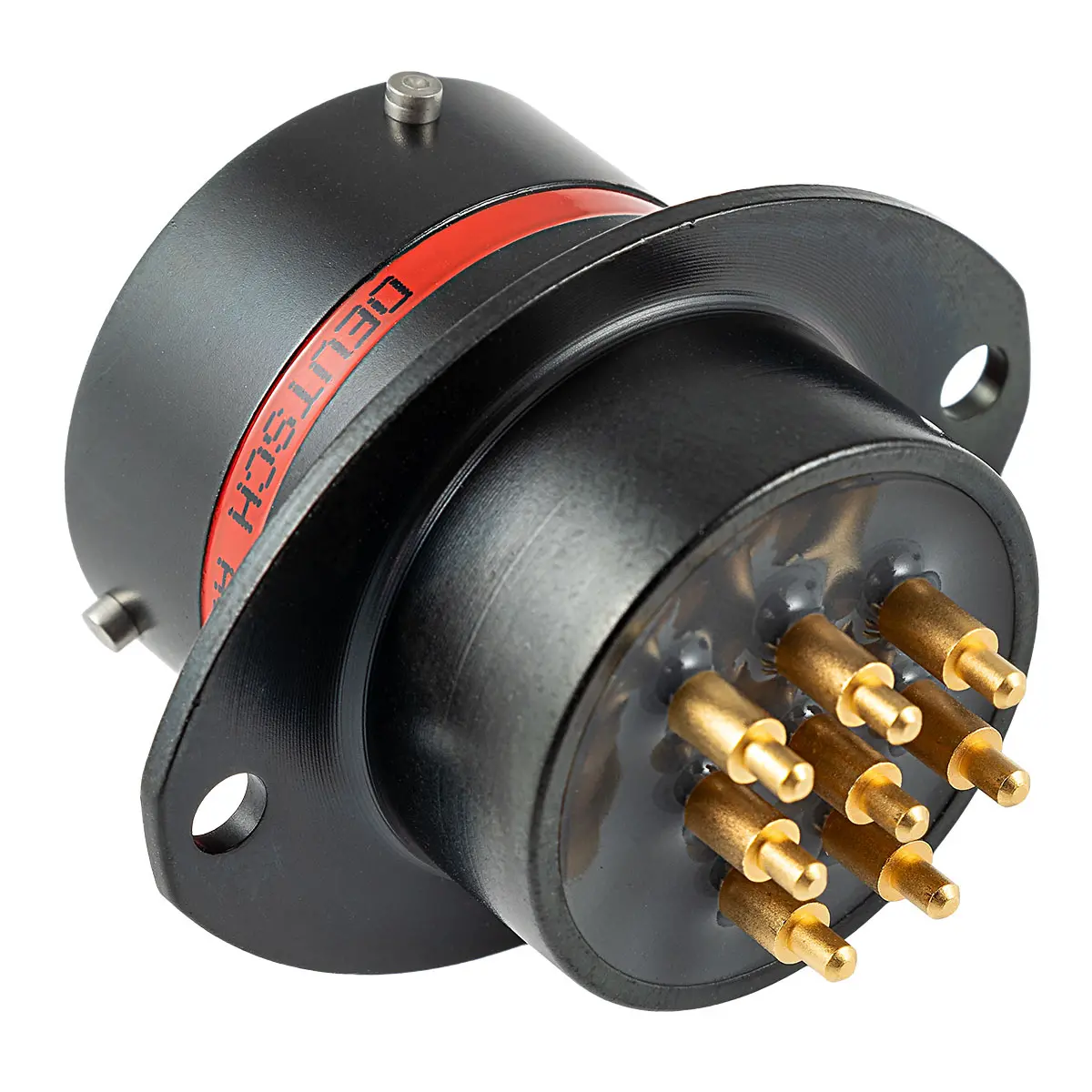

AS,8 WAY,PCB,SKT,N KEY,REDTE/ Connectivity
Item No. AS216-08SN
2 EA In Stock
Limited to stock on hand
$25.000 / EA

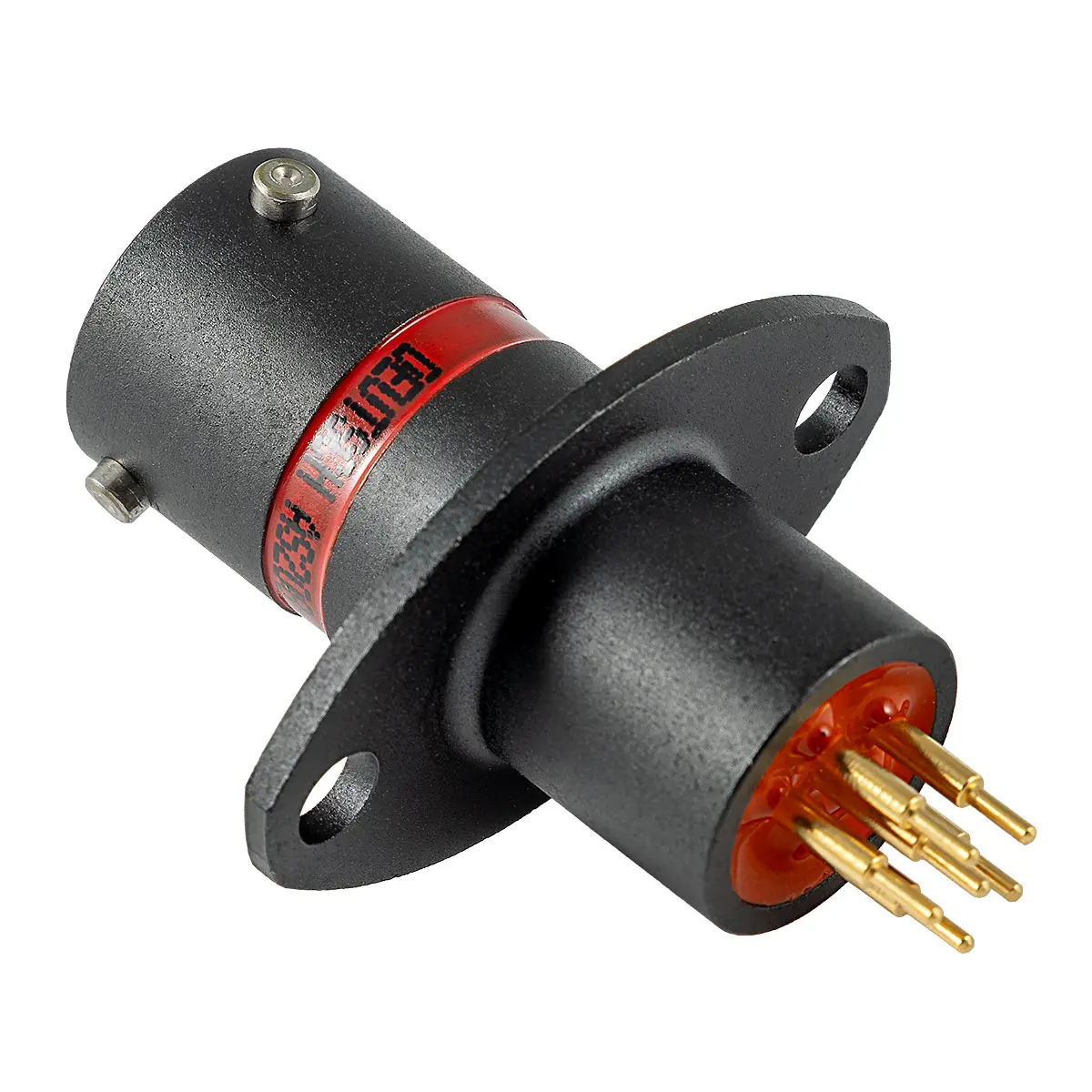

AS,6 WAY,PCB,SKT,N KEY,REDTE/ Connectivity
Item No. AS208-35SN
3 EA In Stock
Limited to stock on hand
$25.000 / EA

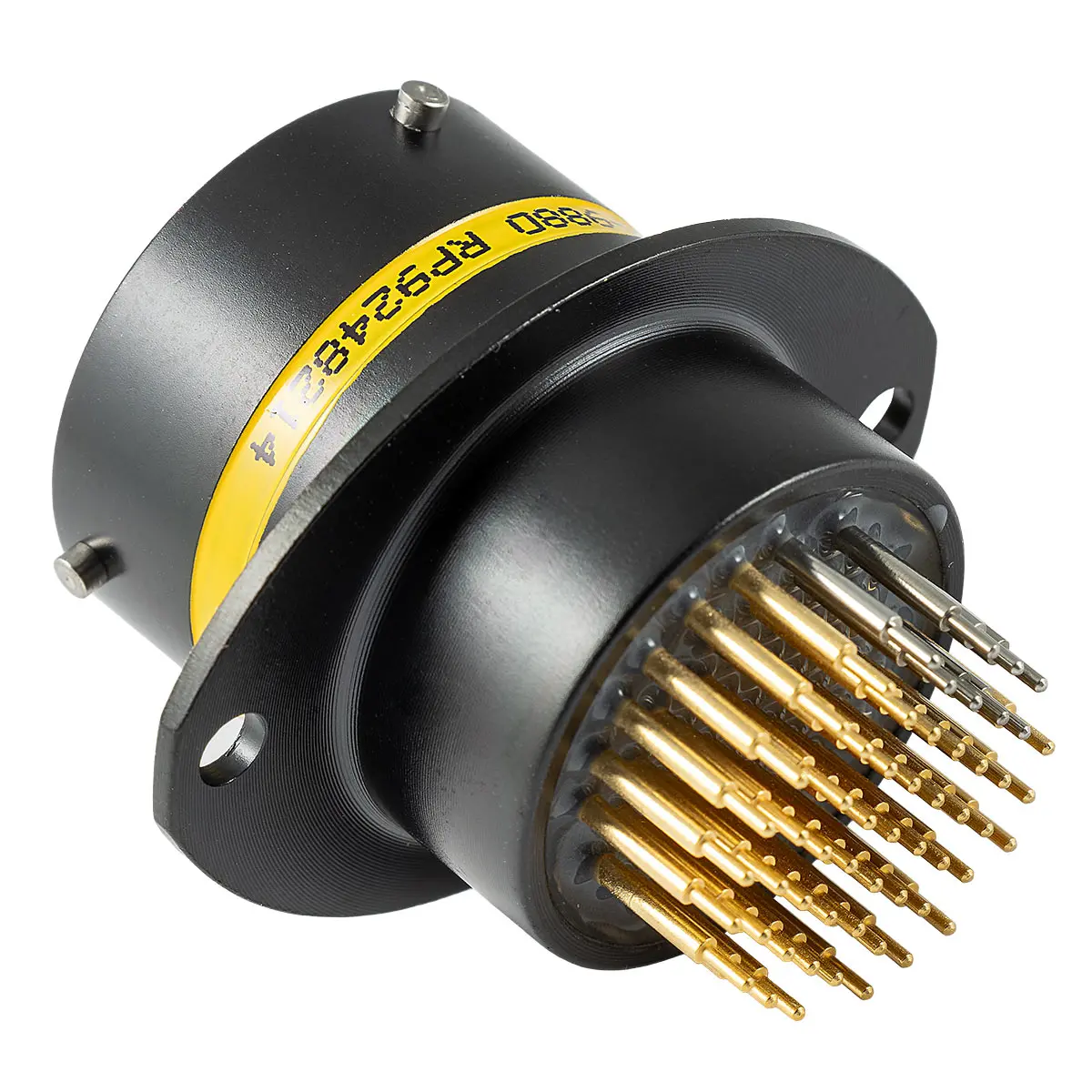

AS,22 WAY,PCB,PIN,A KEY,YELLOWTE/ Connectivity
Item No. AS216-35PA-988D
4 EA In Stock
Limited to stock on hand
$25.000 / EA

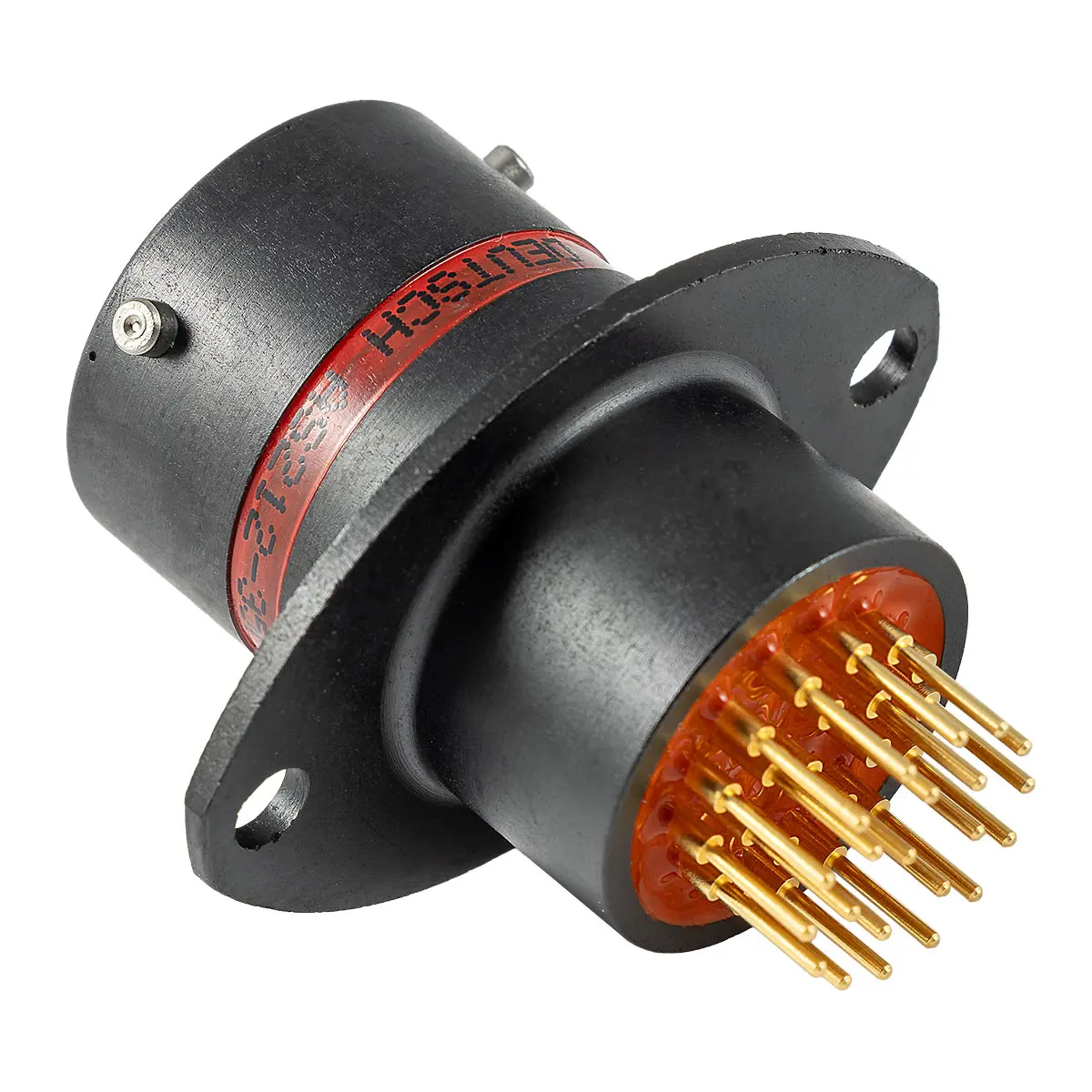

AS,35 WAY,PCB,PIN,N KEY,REDTE/ Connectivity
Item No. AS212-35PN-943B
7 EA In Stock
Limited to stock on hand
$25.000 / EA

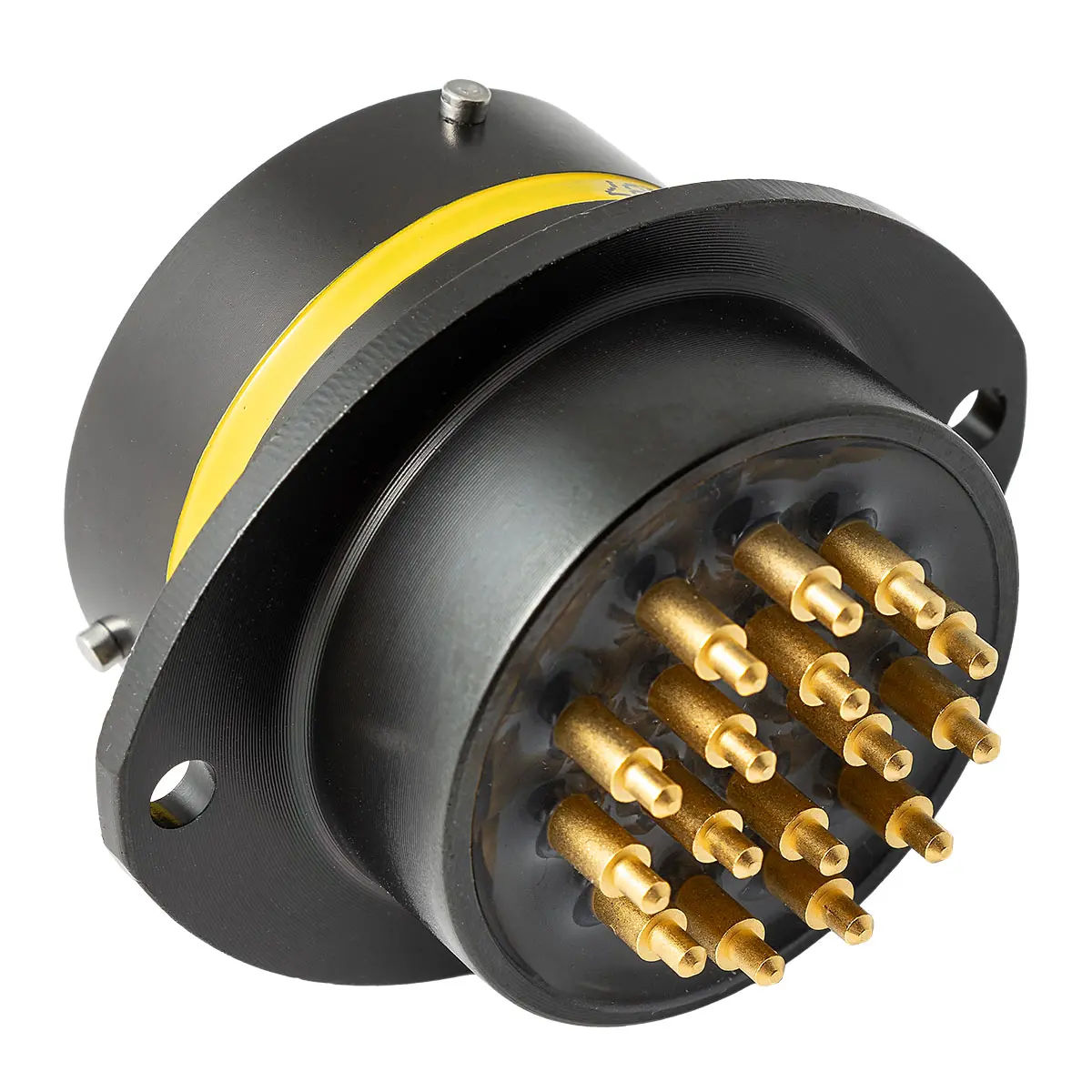

AS,16 WAY,PCB,SKT,A KEY,YELLOWTE/ Connectivity
Item No. AS220-16SA
3 EA In Stock
Limited to stock on hand
