Deutsch ASL Autosport Series
Deutsch Autosport ASL series is a compact 5-way size 6 shell connector for use in sensor applications. Prowireusa stocks all common configurations and keyway options.
Specifications:
- No. Of Positions: 5
- Shell Size: 6
- Contact Size: 23
- Wire Range: 22-26 Ga.
- Built In Shrink Boot Lip
- Conductive Black Finish
Shrink Boot Options:
- Straight: Raychem 204W221-25-0
- 90º: Raychem 224W221-25-0
Housing Types:

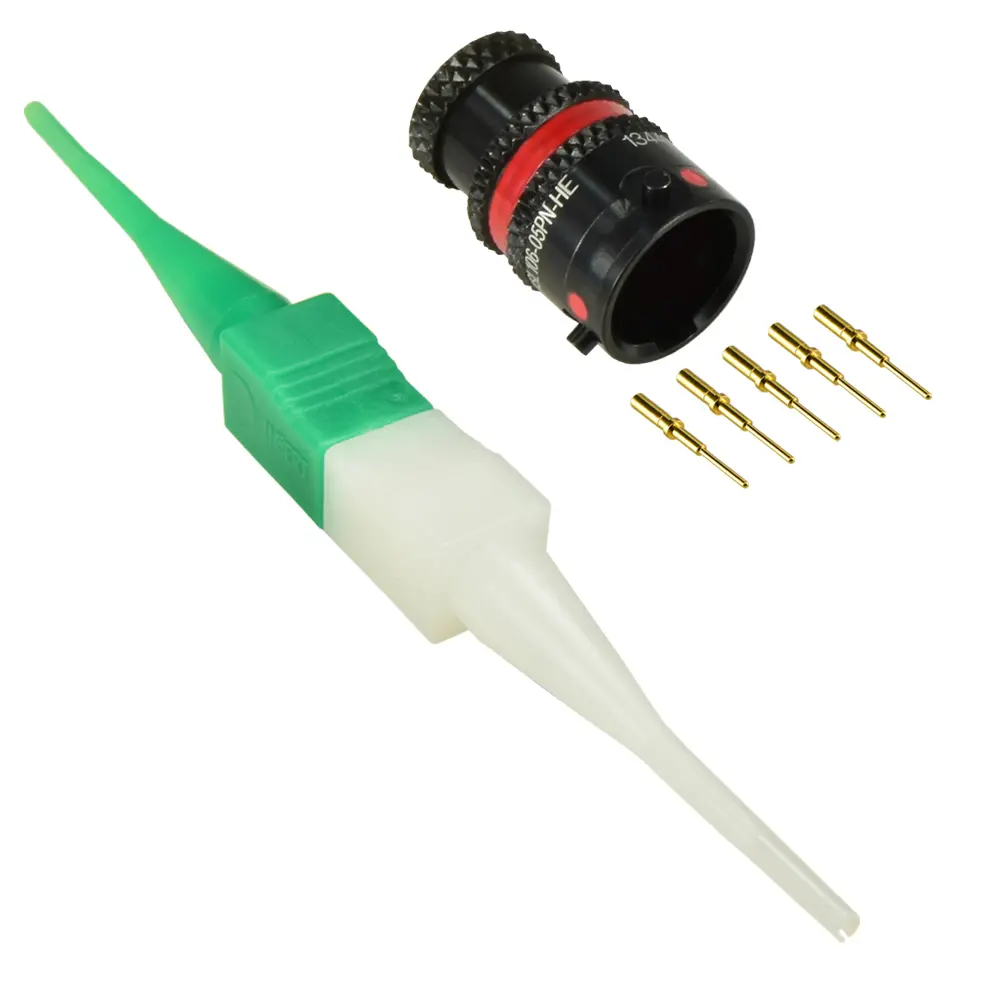

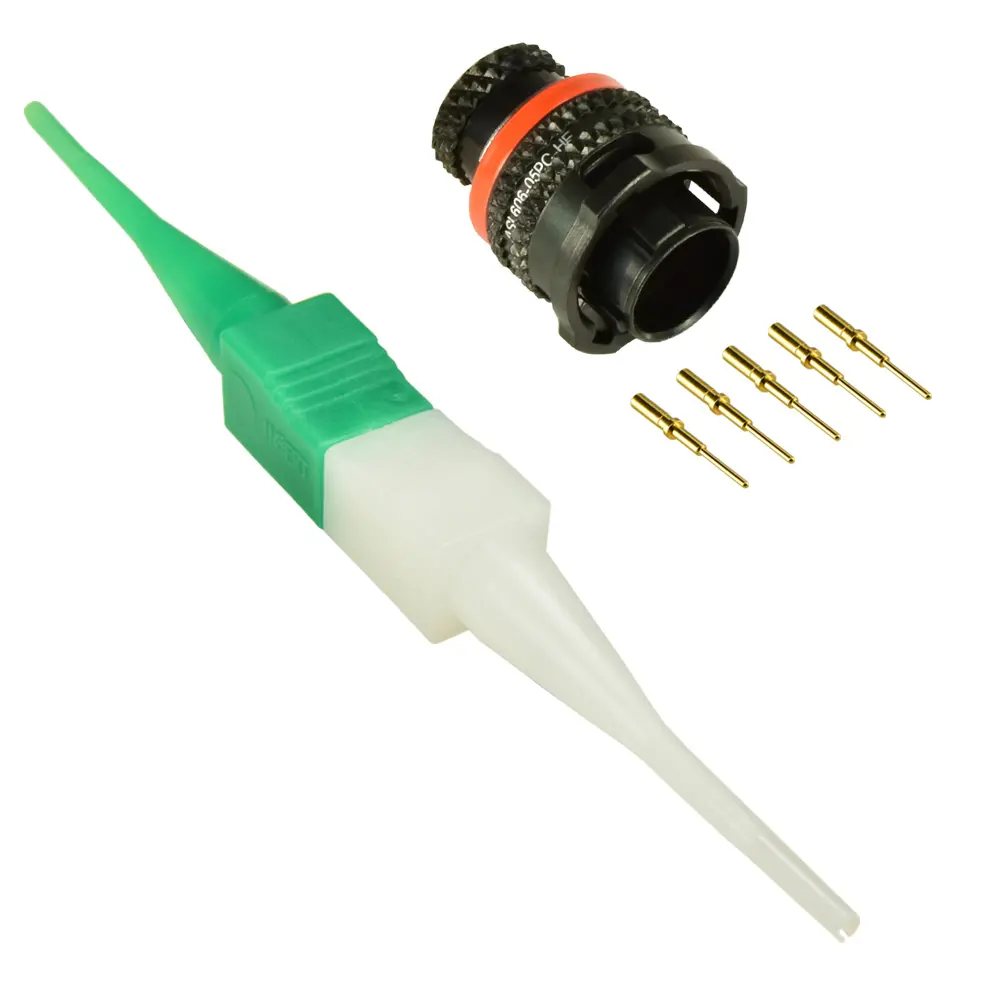

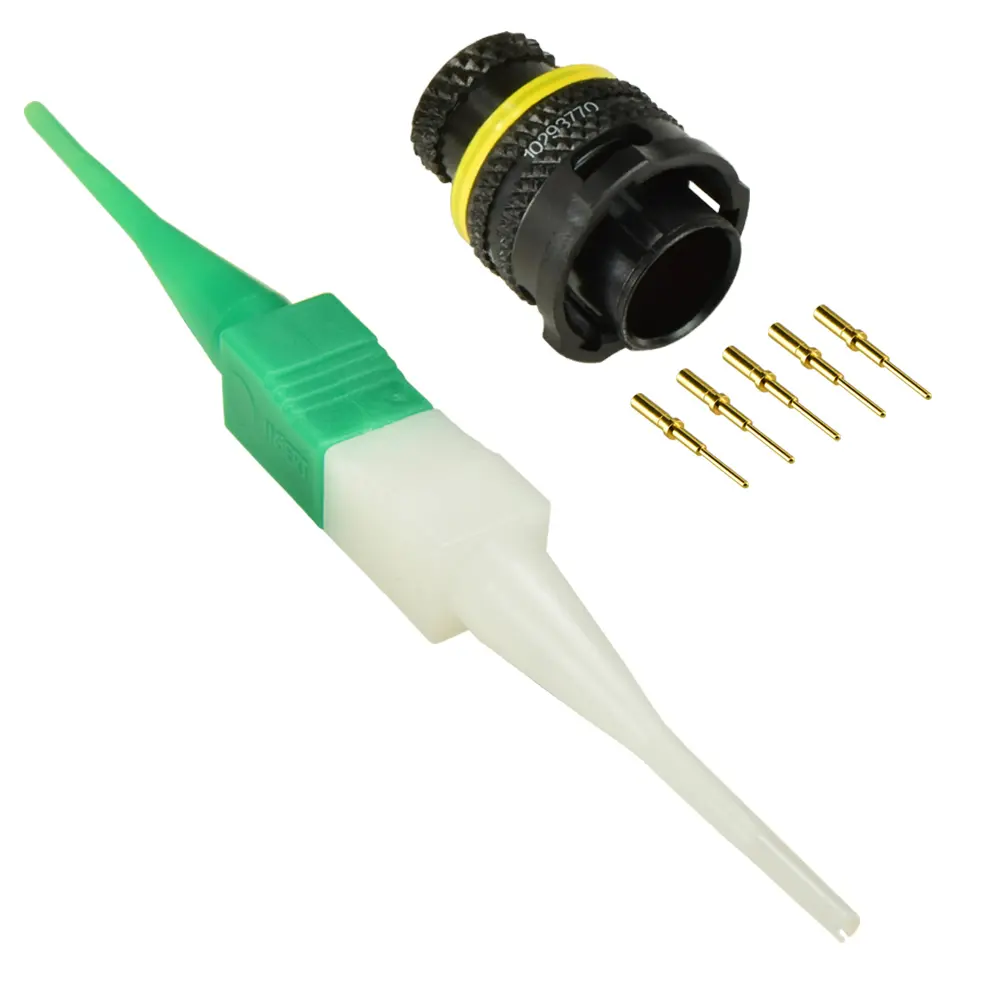

- Plug ASL6: Male connector available in either pin or socket. Mates to ASL1 or ASL0

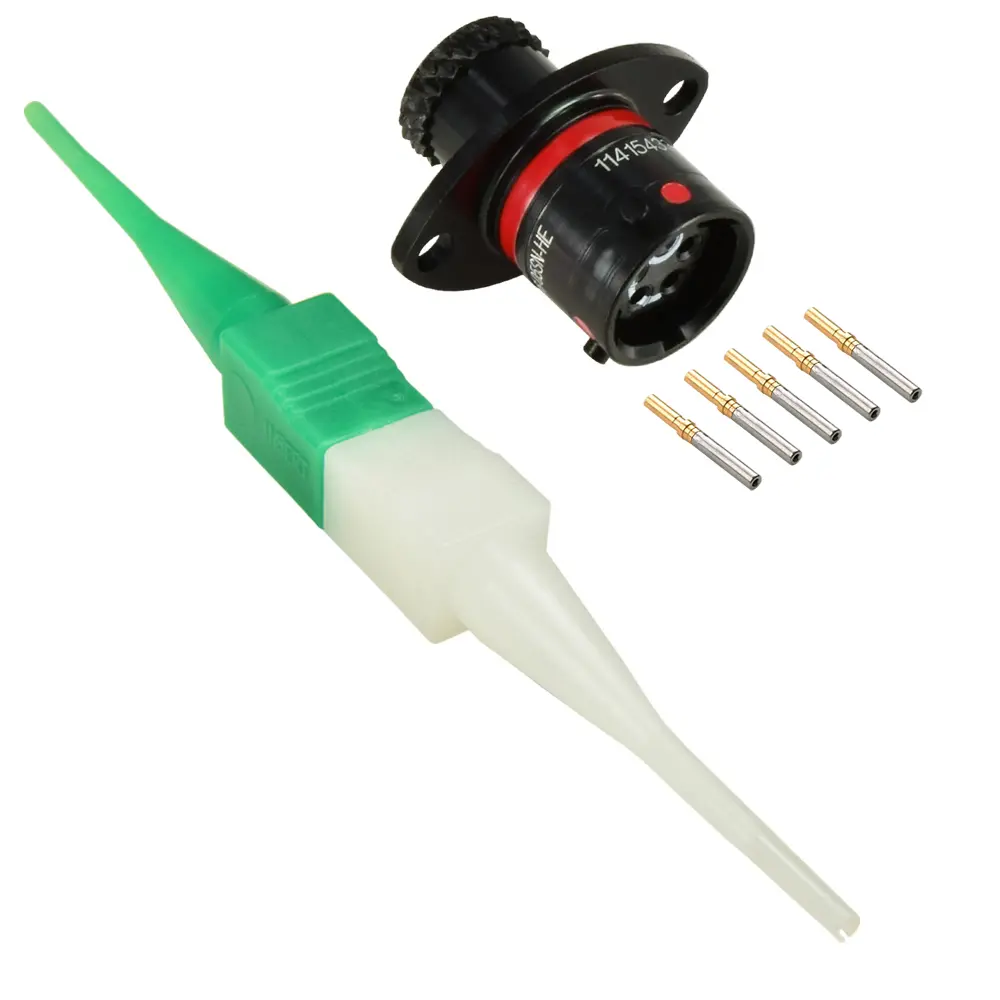

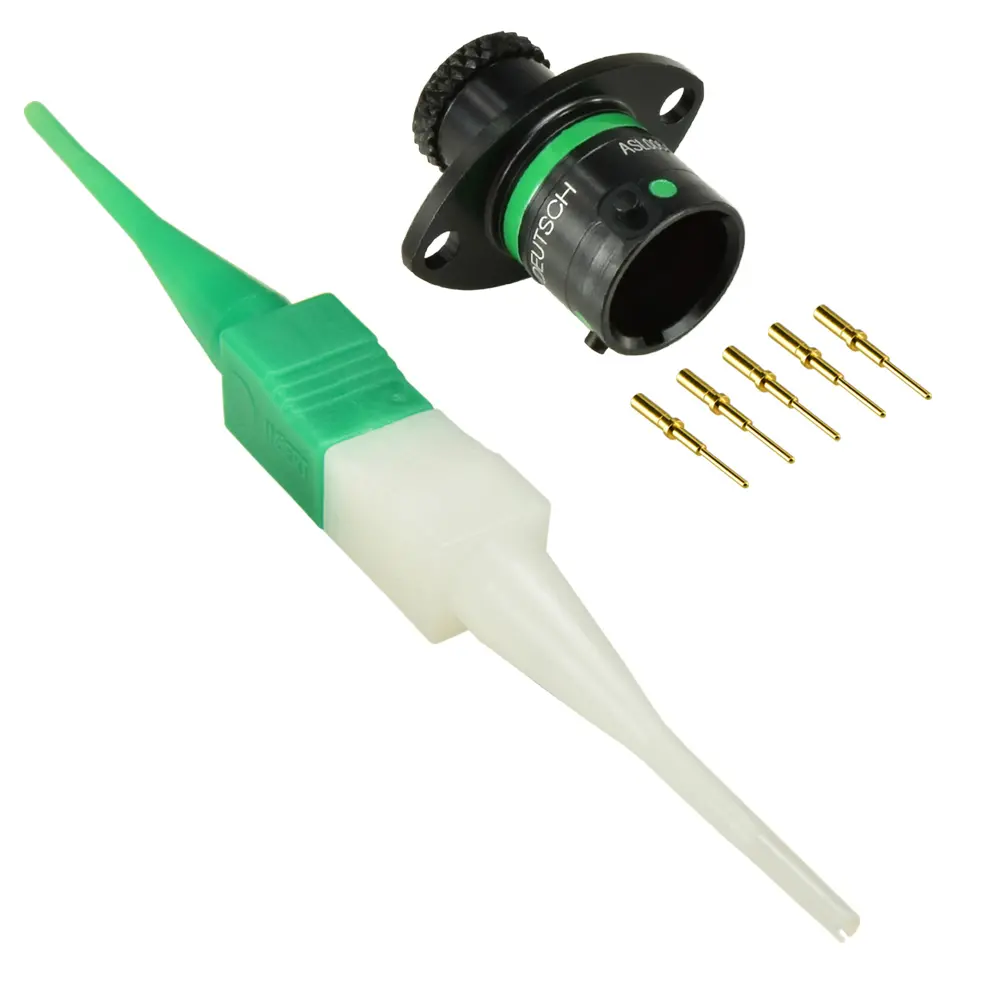

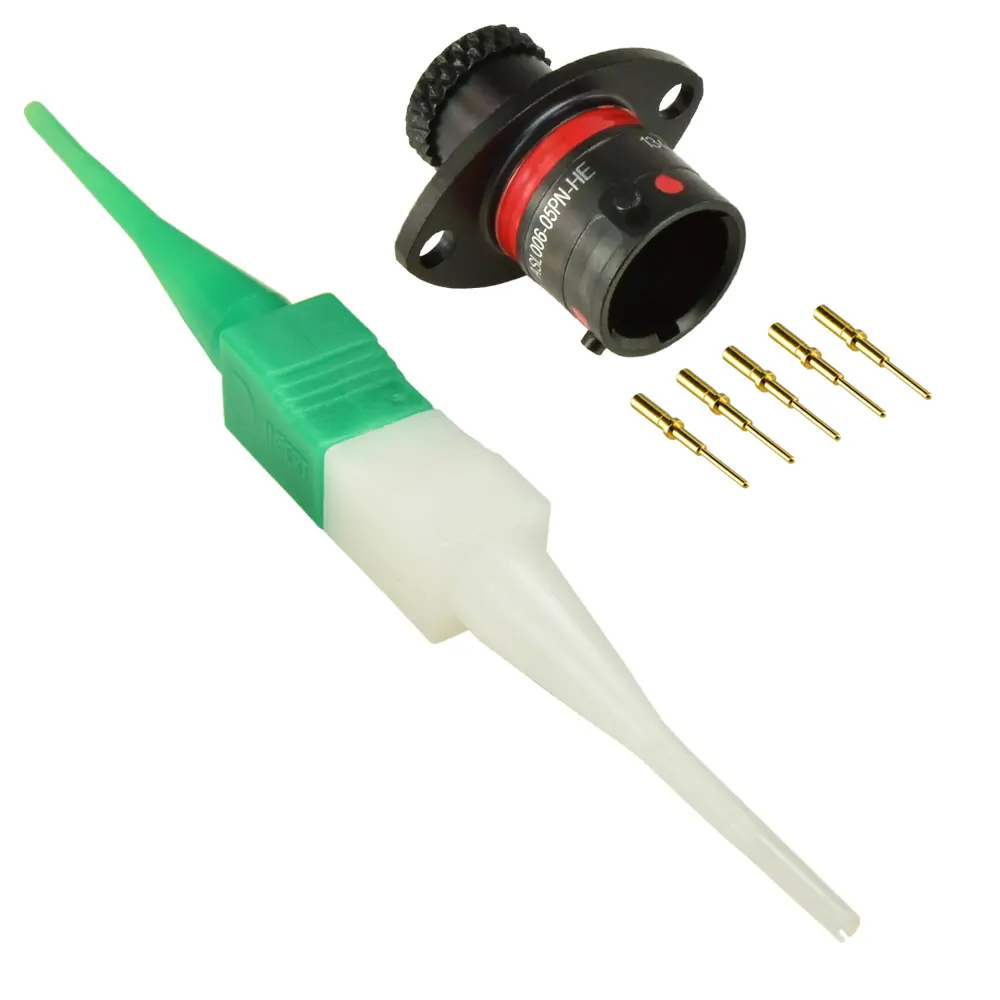

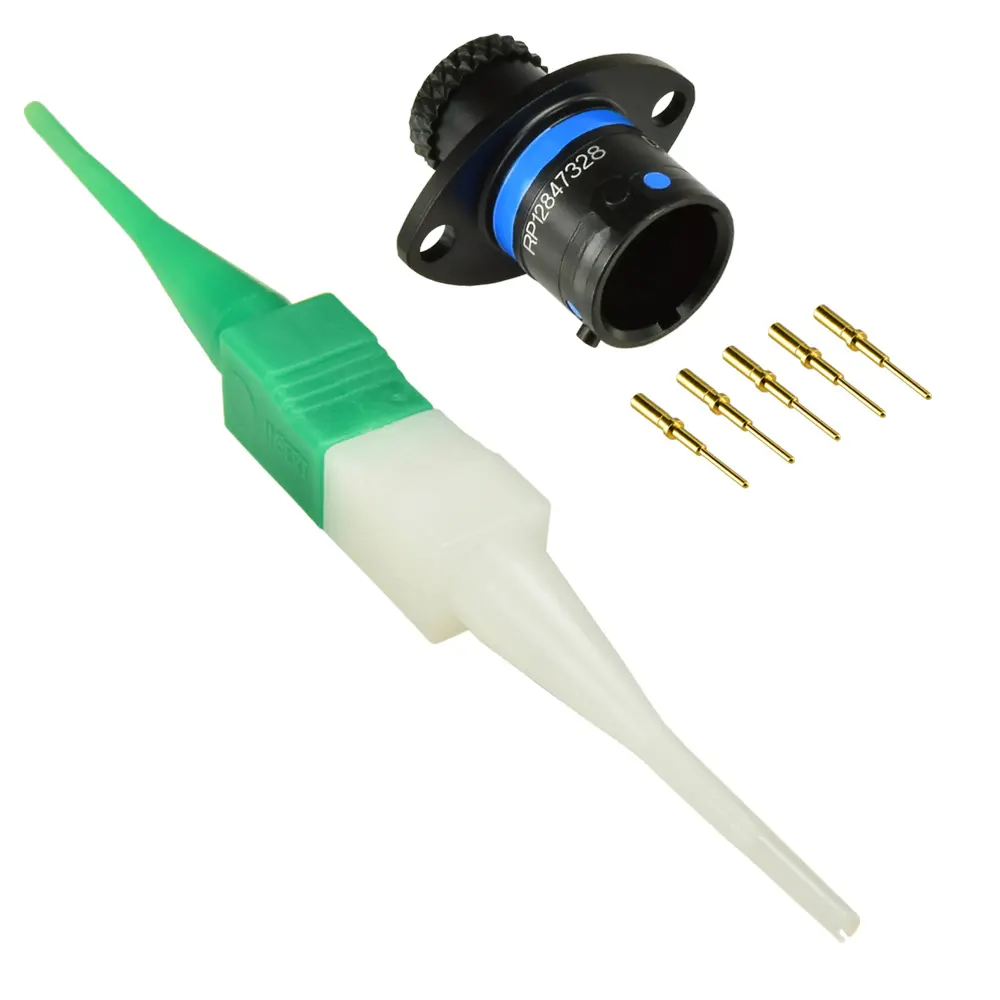

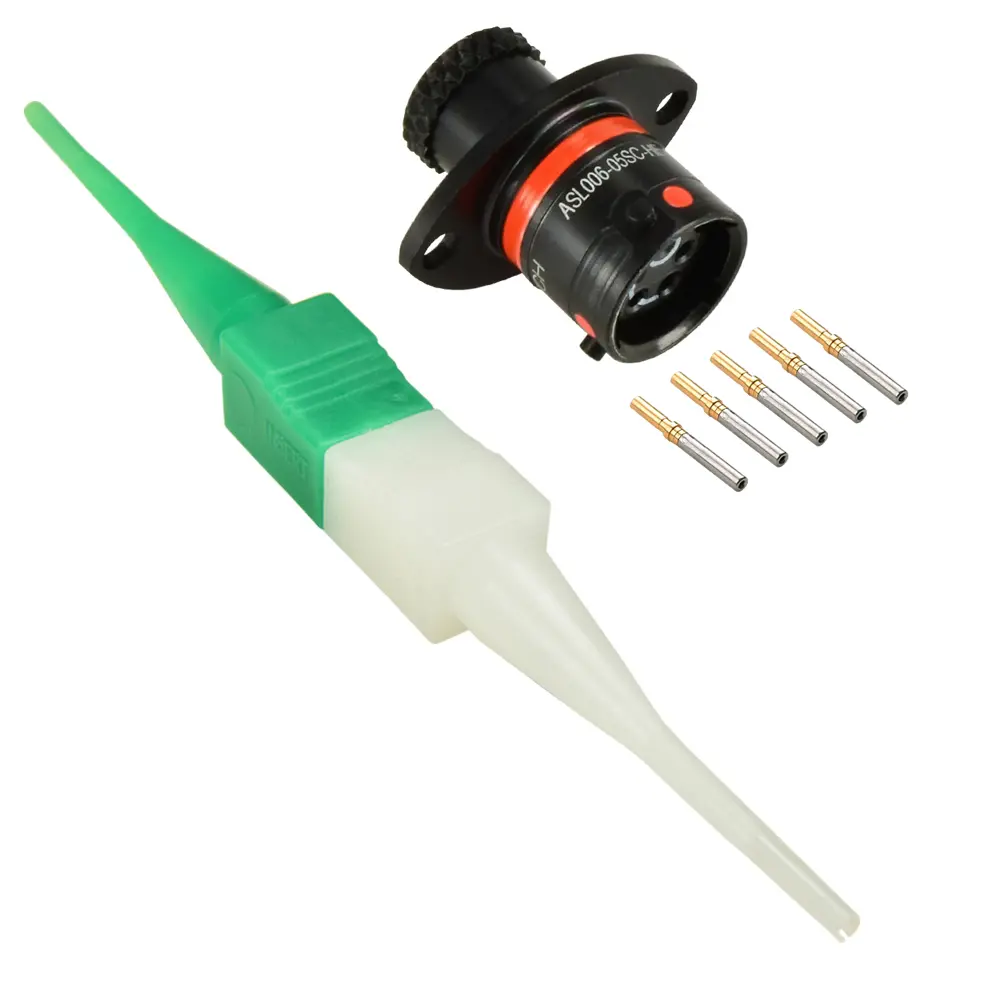

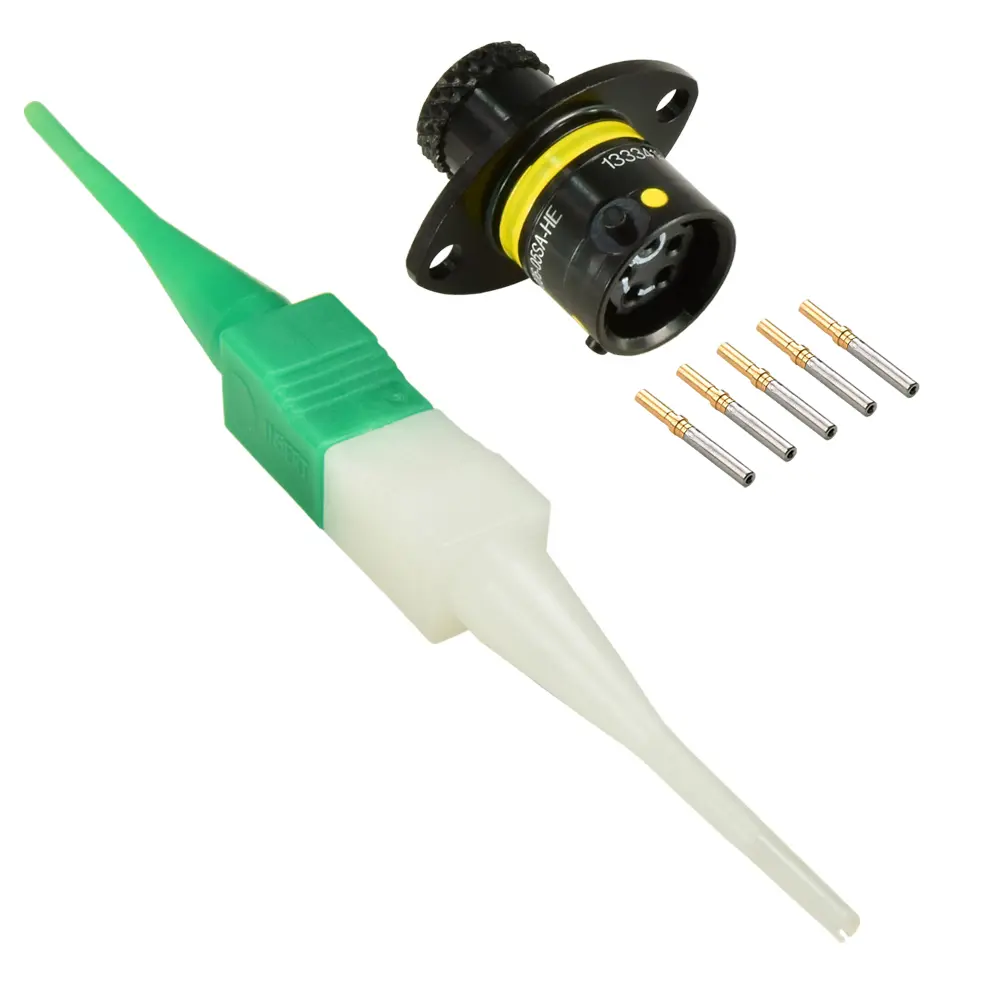

- Flange Receptacle ASL0: Female 2 bolt flanged receptacle available in either pin or socket. Mates to ASU6

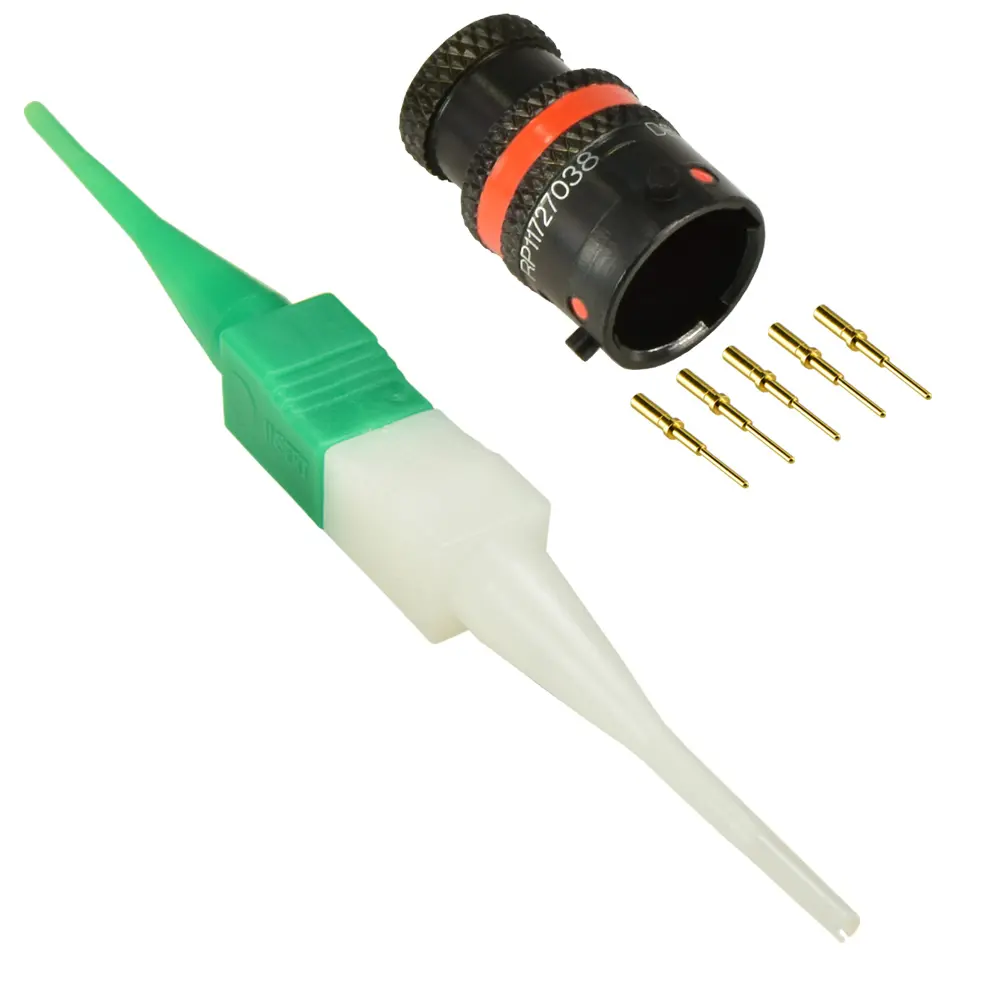

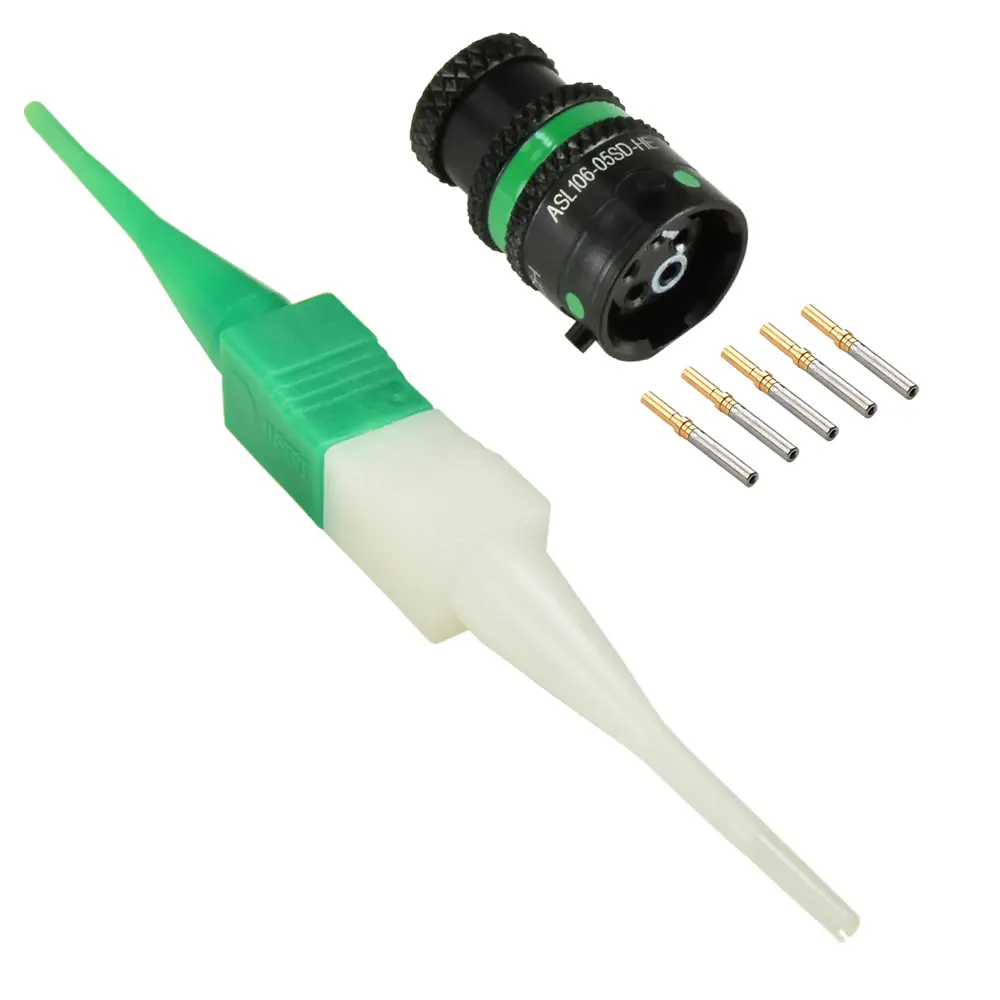

- Inline Receptacle ASL1: Female inline receptacle available in either pin or socket. Mates to ASL6
Keyway Colors:
- N = Red
- A = Yellow
- B = Blue
- C = Orange
- D = Green
- E = Gray
- U = Violet (Universal for test harness only available on plug side only)
| Tooling/Accessories | Part Number | Remarks |
| Crimp Frame | M22520/2-01 | AFM8 |
| Pin Positioner | K1413 | K1413 |
| Socket Positioner | K1413 | K1414 |
| Insert/Removal Tool | M81969/14-01 | Green/White |
| Replacement Pins | 604927-31 | |
| Replacement Sockets | 604935 | |
| Filler Plug | 600300-22 | |
| Gasket | GV-6 | |
| Protective Cap-Plug | 604027 | |
| Protective Cap-Recep | 604029 | |
| Nutplate | AS-6 |
