AS07PT14-97PN Deutsch AS Series 12-Way Hermetic Fuel Tank Receptacle

Name: AS,12 WAY,FLG,2,N KEY,RED
SKU: AS07PT14-97PN
Price: 322.16 USD
Availability: InStock

Deutsch

Item No. AS07PT14-97PN

$322.164 / EA

Features & details

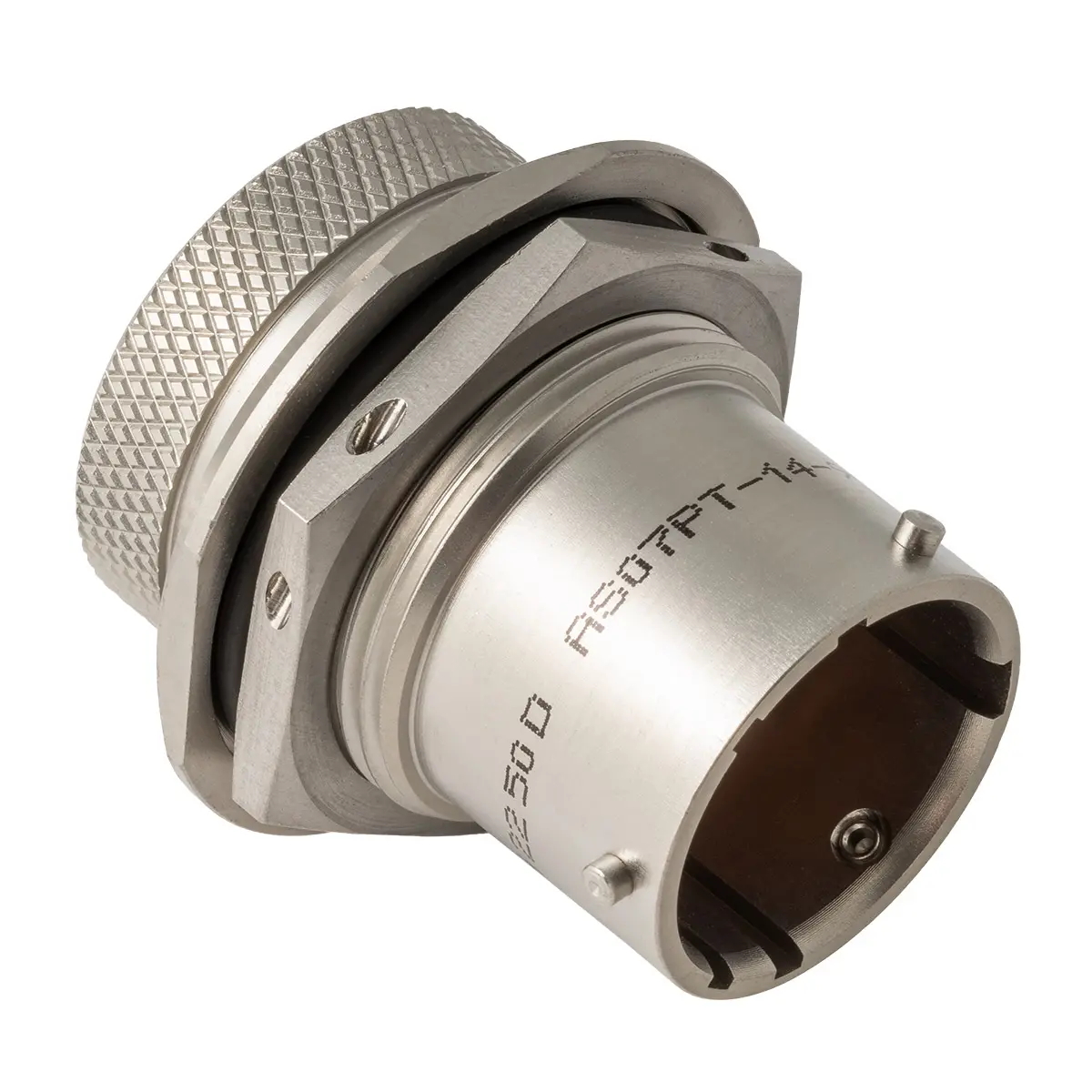

TE Connectivity/DEUTSCH AS07PT14-97PN (also listed as AS07PT-14-97PN) 12-way, shell size 14, jam-nut mounted hermetic receptacle with pin (male) contacts in the N (red) key configuration. It is designed to pass circuits through a fuel cell wall: a glass hermetic seal holds a 1,000 psi pressure differential without fluid leakage or loss of electrical performance.

The connector's red band identifies the N keyway (only the same color keyways will mate together)

AS07PT14-97PN Details

Contacts: 8 x size 20 (7.5 A each) and 4 x size 16 (20 A each), fixed (hermetically sealed), gold-plated nickel-iron
Shell: size 14, 303 stainless steel, electro-polished
Mounting: jam nut, M24 x 1.0 thread; minimum mounting hole 25.70 mm with one flat (24.30 mm max); panel thickness 1.5-5 mm
Seal: Viton O-ring 429320-23 (fuel immersible specification for enhanced fluid resistance)
Hermeticity: leak rate 1 x 10^-8 cc/sec at 15 psi; 1,000 psi pressure differential
Insulation Resistance: 5,000 MΩ at 500 V DC
Rear: integral potting cup, rear accessory thread and boot termination feature
Keyway: N (red)
Protective CapAS914

Mating Connector

AS614-97SN

Technical Information

The contacts are fixed in the glass seal, so wires are terminated in the rear potting cup rather than crimped and inserted.
The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connectors and Caps tabs to purchase the mating plug and protective cap.
