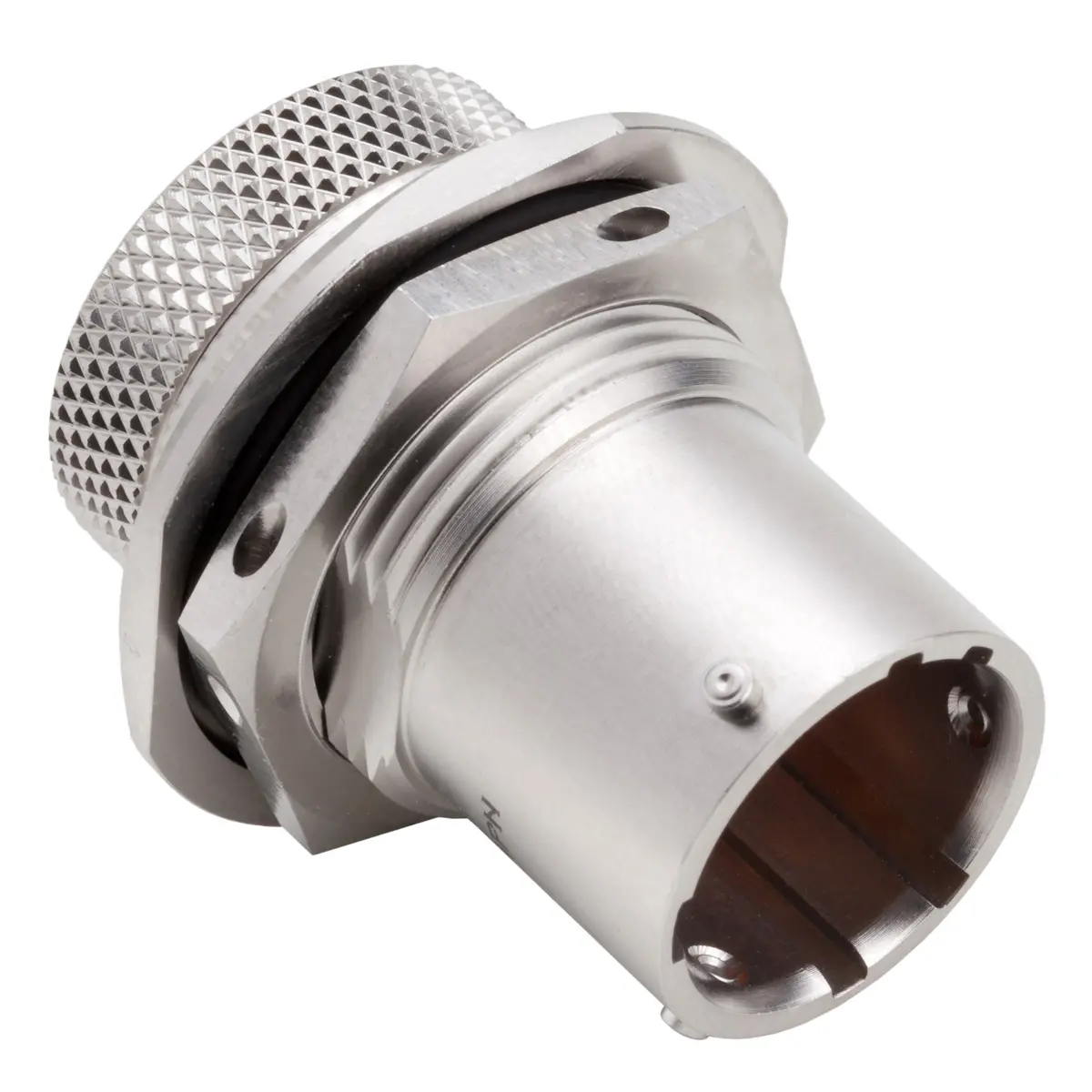

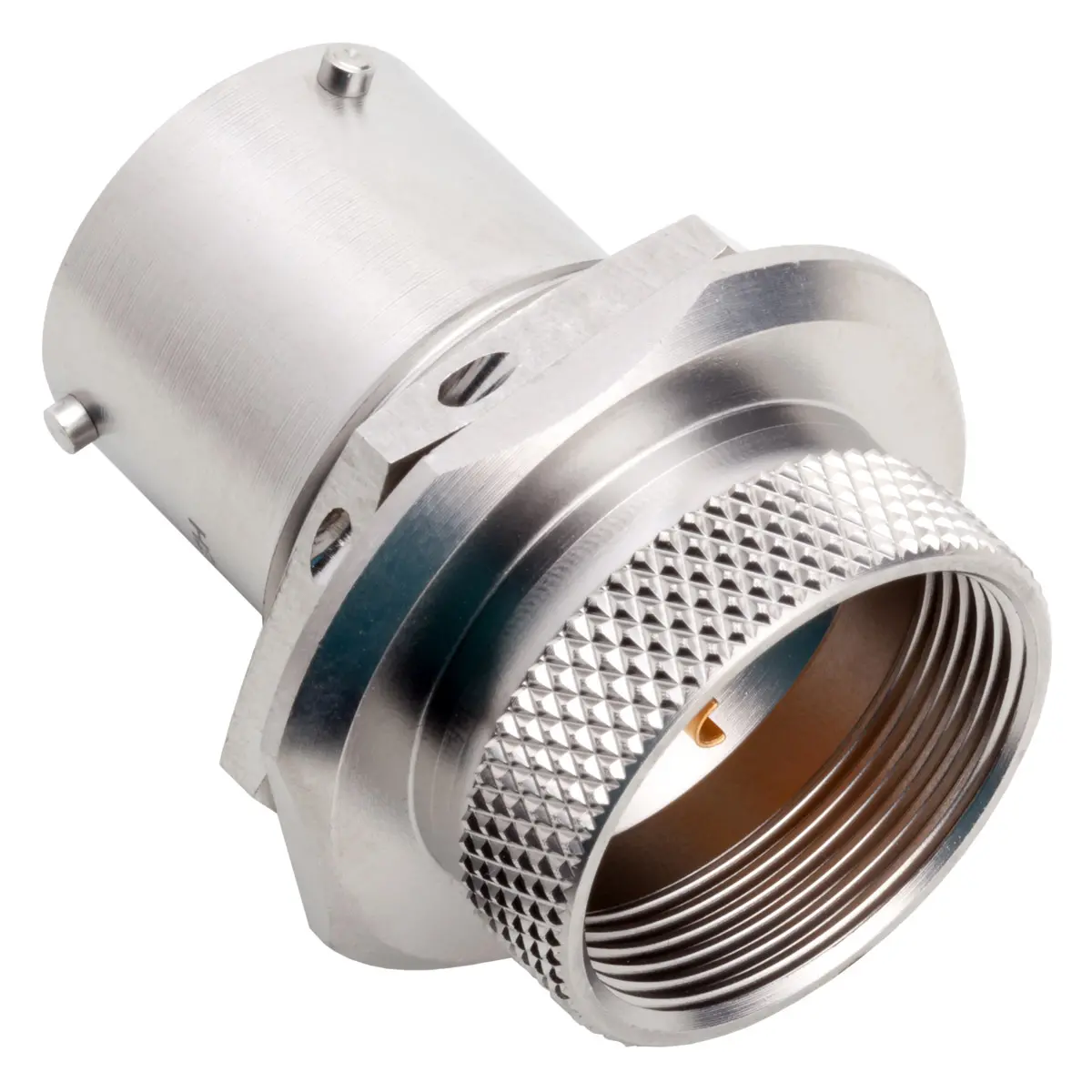

AS07PT-12-04PN Deutsch AS Series 4-Way Hermetic Fuel Tank Receptacle

Name: AS,4 WAY,FLG,2,N KEY,RED
SKU: AS07PT-12-04PN
Price: 312.00 USD
Availability: InStock

Deutsch

Item No. AS07PT-12-04PN

$312.00 / EA

Features & details

TE Connectivity/DEUTSCH AS07PT-12-04PN (also listed as AS07PT12-04PN) 4-way, shell size 12, jam-nut mounted hermetic receptacle with pin (male) contacts in the N (red) key configuration. It is designed to pass circuits through a fuel cell wall: a glass hermetic seal holds a 1,000 psi pressure differential without fluid leakage or loss of electrical performance.

The connector's red band identifies the N keyway (only the same color keyways will mate together)

AS07PT-12-04PN Details

Contacts: 4 x size 16 (20 A each), fixed (hermetically sealed), gold-plated nickel-iron
Shell: size 12, 303 stainless steel, electro-polished
Mounting: jam nut, M21 x 1.0 thread; minimum mounting hole 22.70 mm with one flat (21.10 mm max); panel thickness 1.5-5 mm
Seal: Viton O-ring 429320-21 (fuel immersible specification for enhanced fluid resistance)
Hermeticity: leak rate 1 x 10^-8 cc/sec at 15 psi; 1,000 psi pressure differential
Insulation Resistance: 5,000 MΩ at 500 V DC
Rear: integral potting cup, rear accessory thread and boot termination feature
Keyway: N (red)

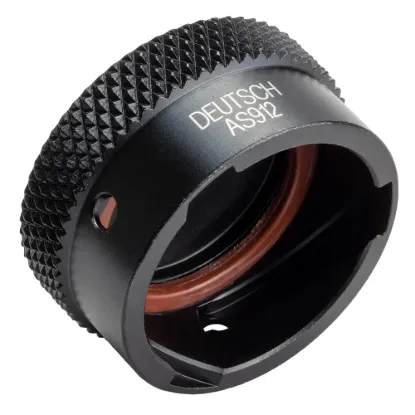

Protective CapAS912

Mating Connector

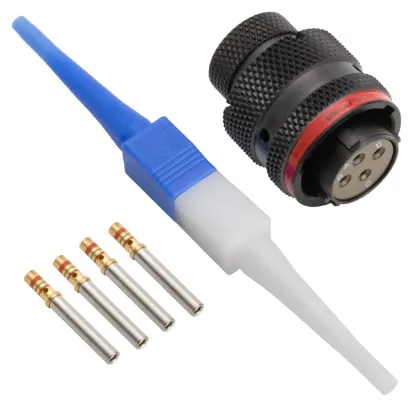

AS612-04SN

Technical Information

The contacts are fixed in the glass seal, so wires are terminated in the rear potting cup rather than crimped and inserted.
The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connectors and Caps tabs to purchase the mating plug and protective cap.

Price $312.00 / EA

Shipping details

Availability: 5 Each In Stock, ready to be shipped
