MiniSeal High-Performance, Immersion-Resistant Crimp Splices
MiniSeal wire-to-wire splicing products offer solutions for hundreds of aerospace and defense applications. These environment-resistant splices provide excellent reliability, long-term performance, MIL-S-81824/1 qualification, and a low installed cost. MiniSeal crimp splices consist of a plated copper crimp barrel and a separate, heat-shrinkable, transparent sealing sleeve. They can be used on a combination of wires, from 1:1 to 10:10. MiniSeal splices are one of the smallest, lightest, and most environment-resistant splices available.
The recommended crimp tool is 3137 CT
Types of MiniSeal splices:
- Stub: D-609 series will need to be covered with either SCL, ATUM, or W5DL tubing (not included in the purchase of splice)
- Butt: M81824/1 series comes with a color-coordinated heat-shrink sleeve
Color Bands:
- Red 18-22AWG
- Blue 16-14AWG
- Yellow 12-10AWG
$2.000 / Each

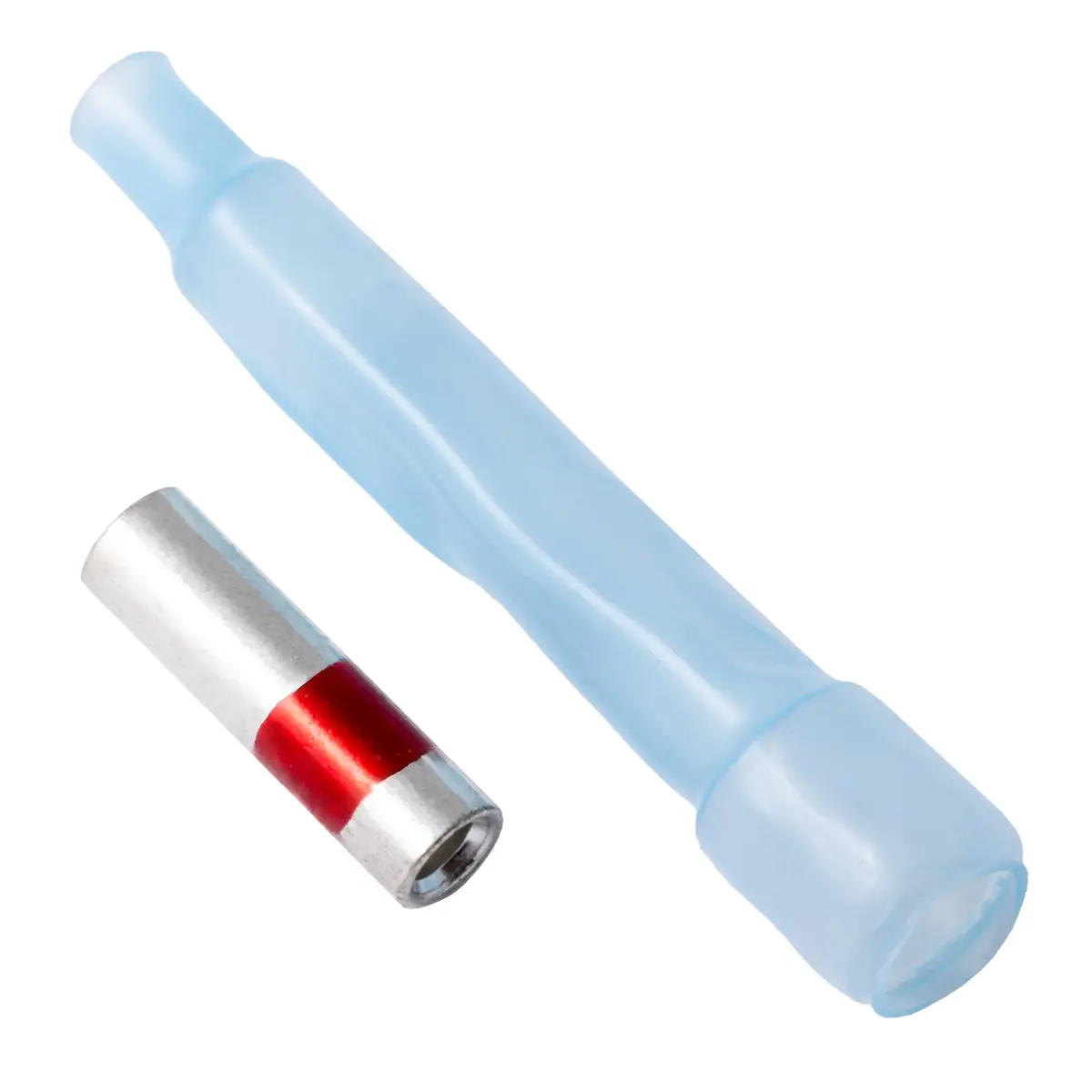

MINI SEAL STUB SPLICE RED CAPPEDRaychem/TE Connectivity
Item No. D-436-0128
292 Each In Stock
$3.152 / Each
MINI SEAL STUB SPLICE BLUE CAPPEDRaychem/TE Connectivity
Item No. D-436-58
250 Each In Stock
$3.504 / Each

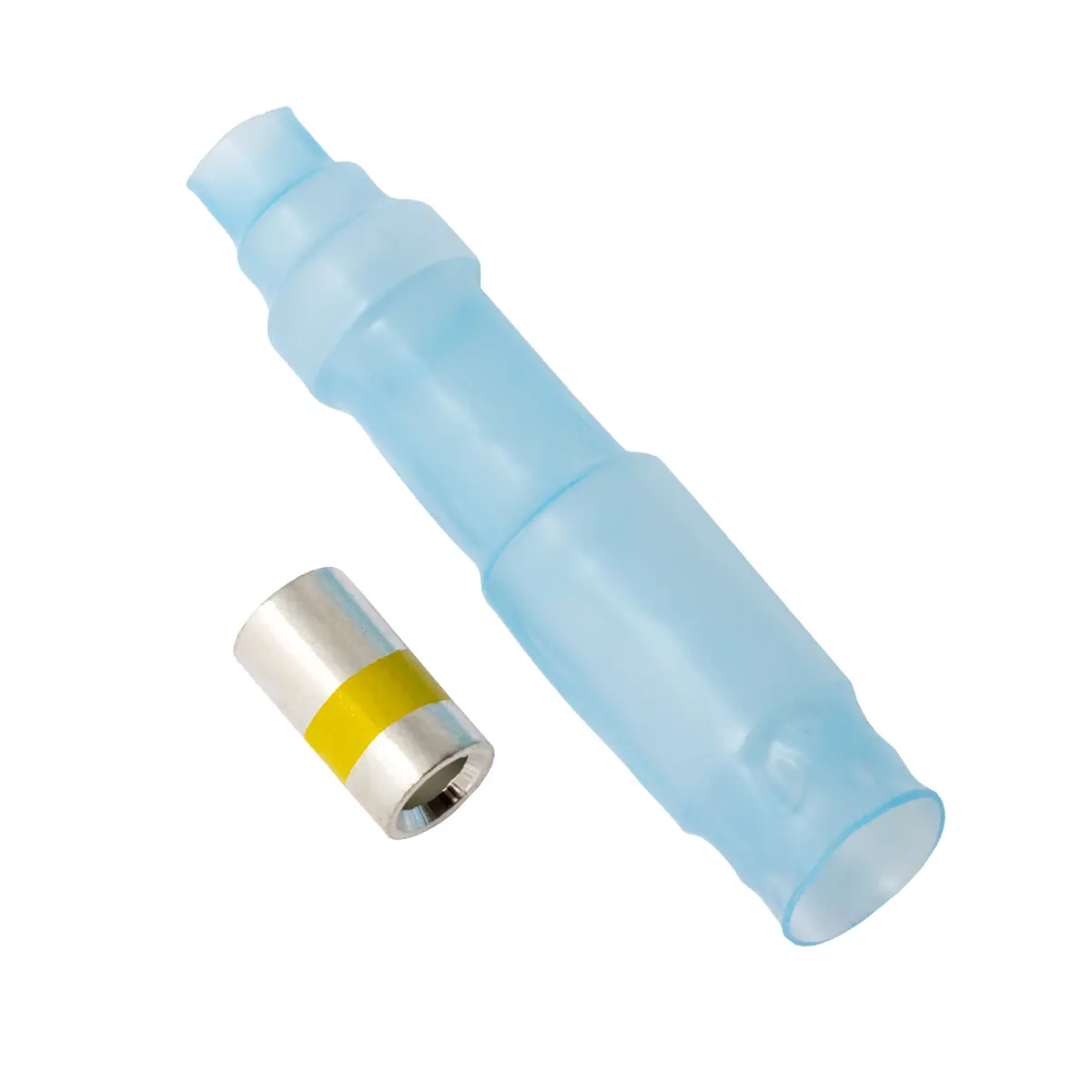

MINI SEAL STUB SPLICE YELLOW CAPPEDRaychem/TE Connectivity
Item No. D-436-59
Currently on Backorder
$0.848 / Each
MINI SEAL CRIMP STUB SPLICE-REDRaychem/TE Connectivity
Item No. D-609-03
1928 Each In Stock
$1.136 / Each

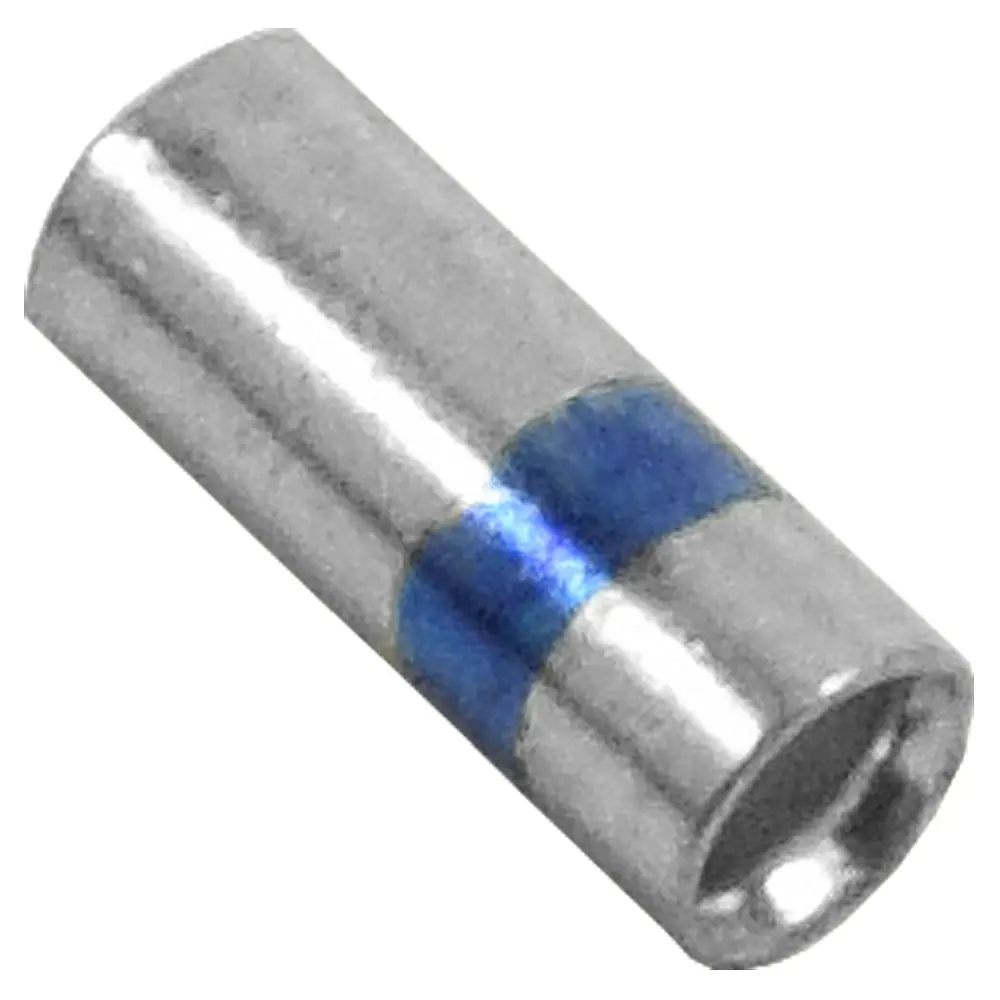

MINI SEAL CRIMP STUB SPLICE- BLUERaychem/TE Connectivity
Item No. D-609-04
650 Each In Stock
$1.200 / Each

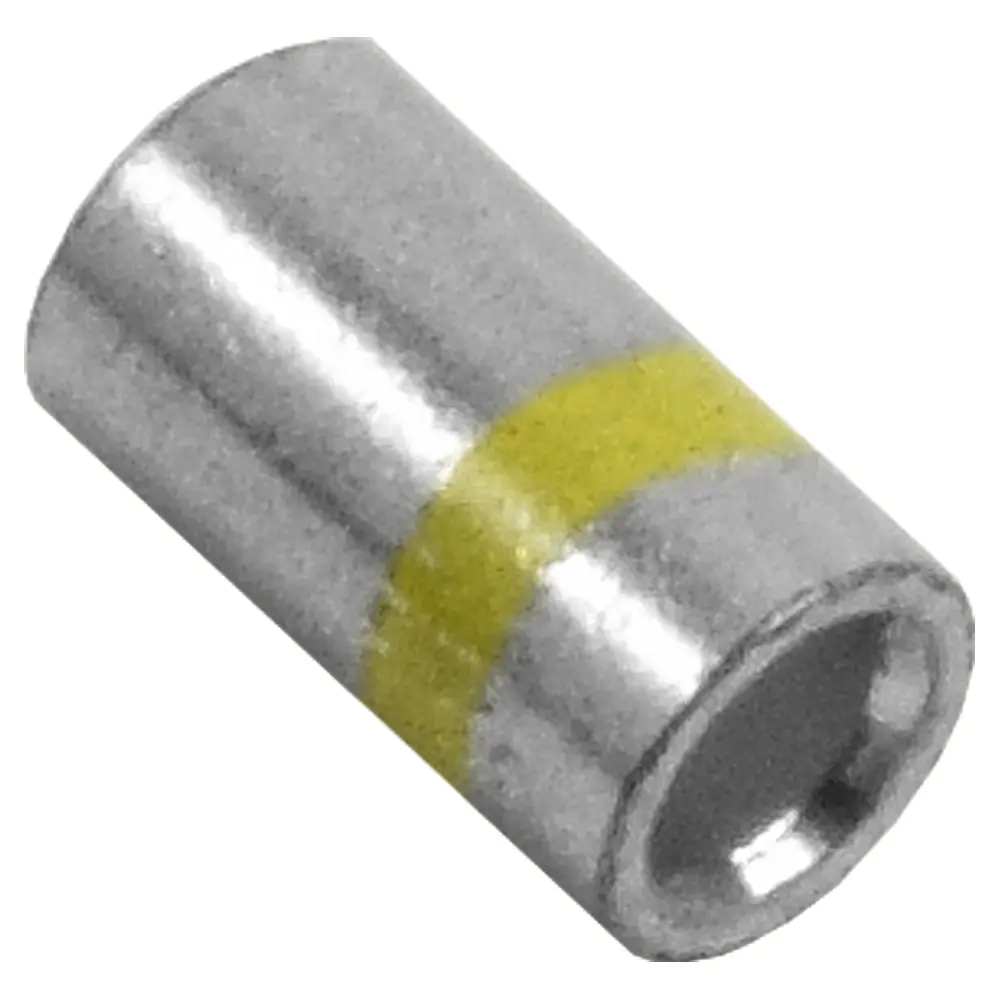

MINI SEAL CRIMP STUB SPLICE-YELLOWRaychem/TE Connectivity
Item No. D-609-05
1218 Each In Stock
$1.340 / Each

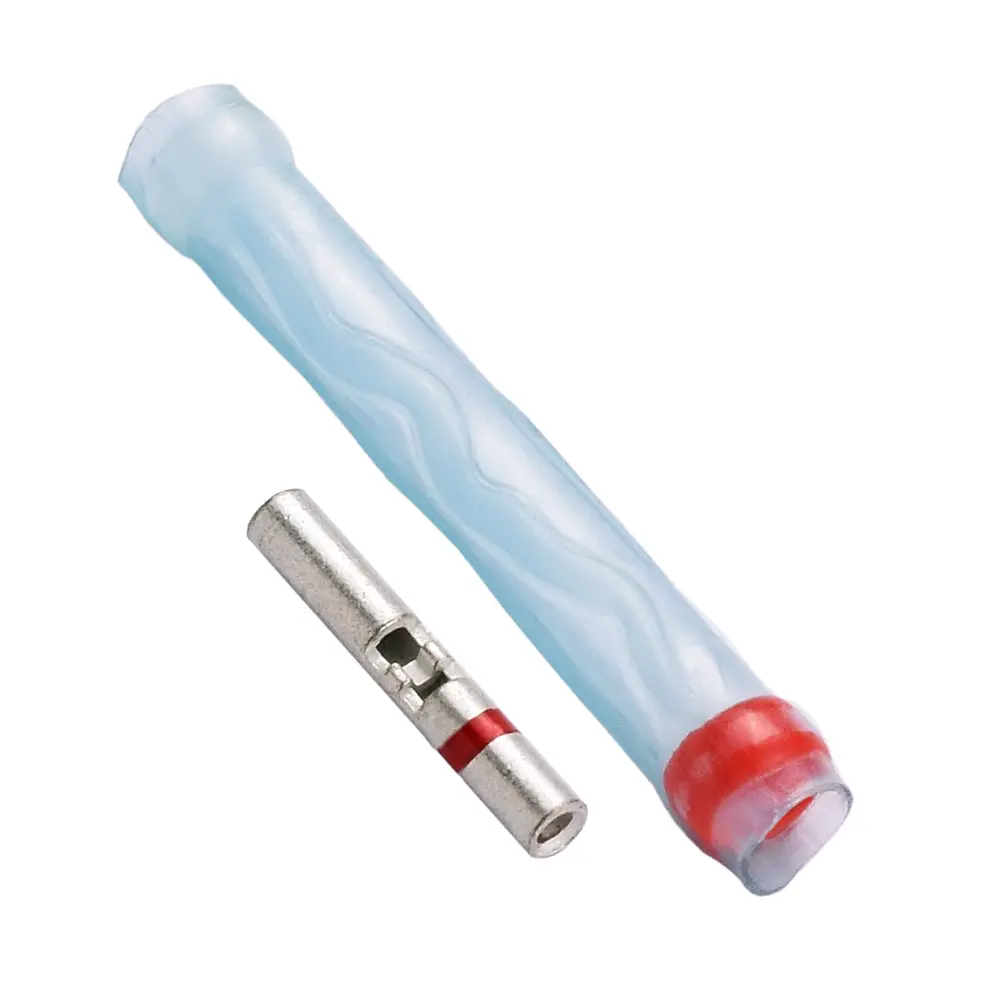

RAYCHEM MINI-SEAL SPLICE -REDRaychem/TE Connectivity
Item No. M81824/1-1
2000 EA due on 08/08/2025
$1.720 / Each
RAYCHEM MINI-SEAL SPLICE -BLUERaychem/TE Connectivity
Item No. M81824/1-2
1500 EA due on 07/16/2025
$1.820 / Each
RAYCHEM MINI-SEAL SPLICE-YELLOWRaychem/TE Connectivity
Item No. M81824/1-3
2000 EA due on 08/22/2025
